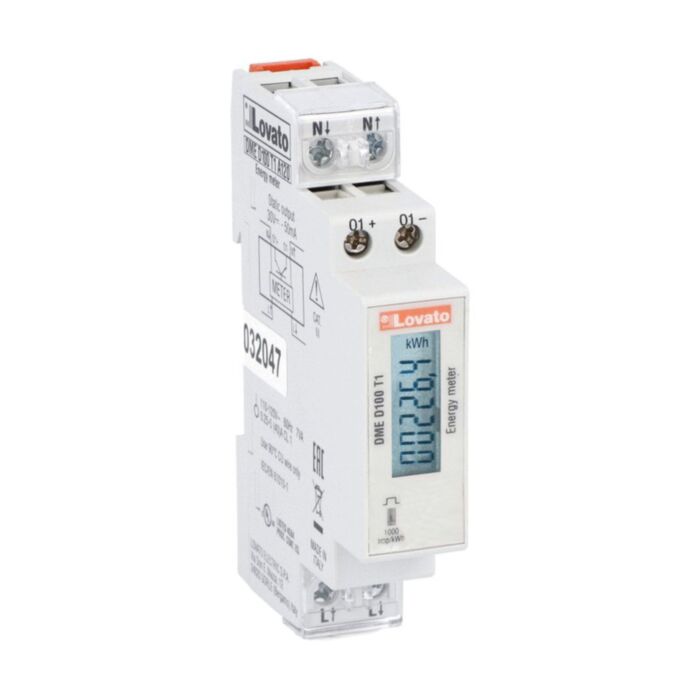

DMED100T1 - 1PH 1OUTPUT ENERGY DIGITAL METER 40A
MPN: DMED100T1
Special Price
£67.87
£56.56
Regular Price
£79.85
Why Choose the DMED100T1?
The Lovato DMED100T1 is a single-phase energy meter designed for DIN rail installations, providing Class 1 accuracy (IEC/EN 62053-21) for imported active energy. With direct connection up to 40 A Imax and a rated insulation voltage of 250 V, it suits compact distribution boards. A 6 kV impulse withstand rating and robust -25 to +55 °C operating range support dependable monitoring across typical UK sites.
Conforming to IEC/EN 61010-1 and EN 50470-1, the meter offers straightforward commissioning without built-in communications or expansion. Light at 86 g and rated for operation up to 2000 m altitude, it fits neatly on DIN rail. Not MID certified, it is ideal for internal monitoring of imported kWh on single-phase loads in commercial or light industrial panels.
Key Benefits
- Class 1 accuracy for imported active energy per IEC/EN 62053-21.
- Direct connection up to 40 A IEC Imax.
- DIN rail mounting for quick, space-saving installation.
- 6 kV impulse withstand and 250 V insulation rating.
- Operates reliably from -25 to +55 °C.
- Standards conformity including IEC/EN 61010-1 and EN 50470-1.
- Lightweight 86 g design; rated up to 2000 m altitude.
Technical Specification
- Product type designation: DMED100T1
- Rated insulation voltage Ui (IEC/EN): 250 V
- Rated impulse withstand voltage Uimp: 6 kV
- Weight: 86 g
- Operating temperature: -25 to +55 °C
- Storage temperature: -25 to +70 °C
- Max altitude: 2000 m
What’s Included
- Lovato DMED100T1 single-phase energy meter
- Manufacturer datasheet and basic installation instructions
- Protective packaging for safe transit
Applications
- Monitoring imported kWh on single-phase circuits
- Submetering within commercial and light industrial distribution boards
- Internal energy tracking where MID certification is not required
- Single-phase load monitoring in panels and plant rooms
Frequently Asked Questions
Is the Lovato DMED100T1 MID certified?
No. The DMED100T1 is not MID certified.
What is the maximum current the meter can handle?
It supports direct connection up to 40 A (IEC Imax).
Does the DMED100T1 have a communication port?
No. It does not include a built-in communication port.
What accuracy class does this meter provide?
It offers Class 1 accuracy per IEC/EN 62053-21.
Is it suitable for DIN rail mounting?
Yes. The meter is designed for DIN rail installations.
Safety note: Install and commission only by a qualified electrician. De-energise the circuit before work, and observe the device’s voltage, environmental ratings, and applicable standards; follow the manufacturer’s instructions.
| Manufacturer Part Number | DMED100T1 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 90283011 |
| Barcode | 8013975182123 |
