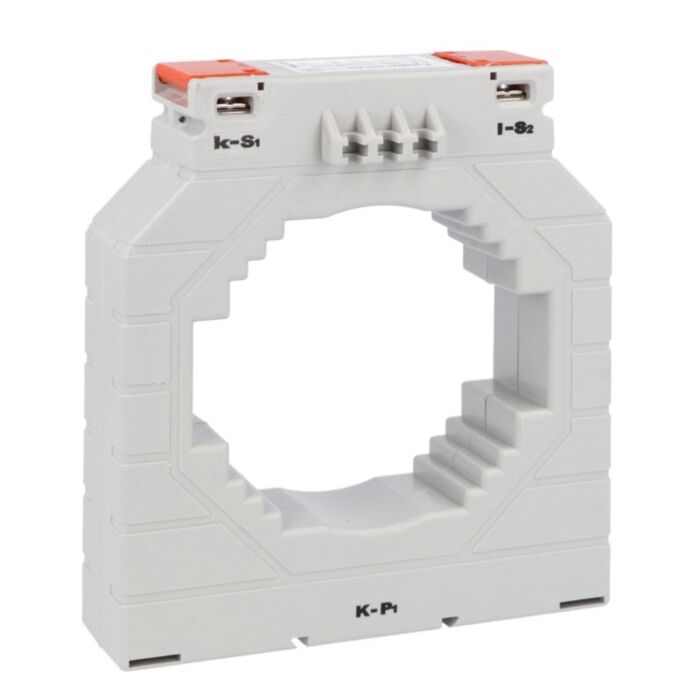

DM4T3000 - CURRENT TRANSFORMER D86MM 3000/5A
MPN: DM4T3000
Special Price
£163.94
£136.62
Regular Price
£192.86
Why Choose the DM4T3000?
The Lovato DM4T3000 is a solid-core current transformer engineered for dependable measurement and protection in high-current installations. With a 3000 A primary rating and a rated insulation voltage of 720 V, it delivers robust performance in demanding panels and switchboards. At just 900 g, this compact unit supports efficient panel integration while maintaining the durability and consistency required for industrial and commercial applications.
Built to meet IEC/EN/BS 61869-1 and 61869-2, this current transformer operates reliably from -25 to +50 °C and withstands storage from -40 to +80 °C. Its solid-core design offers consistent performance, while sustainability certification supports responsible specification. A dependable choice for metering, monitoring, protection and energy management across industrial and commercial environments.
Key Benefits
- Solid-core design for straightforward installation and consistent performance.
- 3000 A primary rating for high-capacity measurement and protection circuits.
- Rated insulation voltage 720 V for enhanced electrical safety.
- Operates from -25 to +50 °C for dependable service in varied environments.
- Conforms to IEC/EN/BS 61869-1 and 61869-2 for assured compliance.
- Lightweight 900 g construction aids convenient panel and enclosure integration.
- Backed by sustainability certification to support environmental objectives.
Technical Specification
- Product type designation: DM4T3000
- Rated insulation voltage Ui (IEC/EN): 720 V
- Weight: 900 g
- Operating temperature: -25 to +50 °C
- Storage temperature: -40 to +80 °C
What’s Included
- Lovato DM4T3000 solid-core current transformer
- Basic product labelling with ratings and identification
- Manufacturer datasheet available via download
Applications
- High-current measurement in panels and switchboards
- Metering and monitoring within industrial and commercial installations
- Integration with protection and control equipment requiring CT inputs
- Energy management systems and load analysis
Frequently Asked Questions
What is the primary current rating of the DM4T3000?
It is rated for a 3000 A primary current.
Is the DM4T3000 a solid-core current transformer?
Yes, it is a solid-core CT.
What standards does this CT conform to?
It conforms to IEC/EN/BS 61869-1 and IEC/EN/BS 61869-2.
What is the rated insulation voltage?
The rated insulation voltage Ui is 720 V.
What temperature range can it operate within?
Operating temperature is -25 to +50 °C; storage is -40 to +80 °C.
Safety note: Install and commission only by qualified personnel. Isolate circuits before work and follow applicable standards and local regulations for safe use.
| Manufacturer Part Number | DM4T3000 |
|---|---|
| Manufacturer | Lovato |
| Barcode | 8013975187258 |
