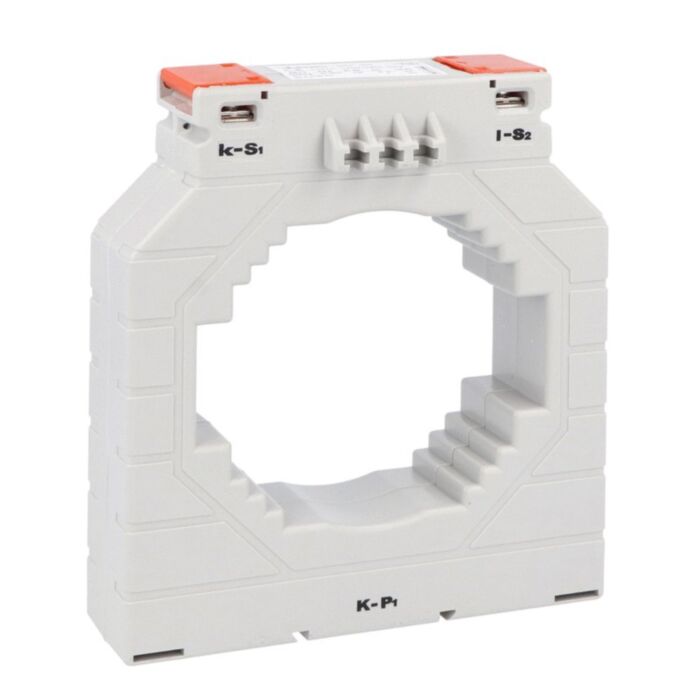

DM4T1500 - CURRENT TRANSFORMER D86MM 1500/5A
MPN: DM4T1500
Special Price
£111.59
£92.99
Regular Price
£131.28
Why Choose the DM4T1500?
Engineered by Lovato, the DM4T1500 is a solid‑core current transformer designed for dependable measurement and protection in industrial panels. With Ipn (/5) 1500 A and a rated insulation voltage Ui of 720 V, this CT suits demanding distribution applications. The DM4T1500 meets IEC/EN/BS 61869‑1 and 61869‑2, helping ensure consistent performance and compatibility across UK installations.
Built for real‑world conditions, this Lovato current transformer operates from −25 to +50 °C and weighs just 760 g for straightforward panel handling. Storage is rated −40 to +80 °C, and a Sustainability certification supports responsible procurement. The robust solid‑core design delivers a fixed, stable installation with minimal maintenance, making it a reliable choice for metering, monitoring and protection in switchboards and distribution assemblies.
Key Benefits
- Solid-core construction for secure, fixed installation in enclosed panels.
- High primary current rating: Ipn (/5) 1500 A.
- Rated insulation voltage Ui 720 V enhances electrical safety margins.
- Operates reliably from −25 to +50 °C ambient.
- Conforms to IEC/EN/BS 61869-1 and 61869-2 standards.
- Lightweight 760 g form factor simplifies handling and mounting.
- Sustainability certification supports environmentally responsible procurement.
Technical Specification
- Product type designation: DM4T1500
- Rated insulation voltage Ui (IEC/EN): 720 V
- Weight: 760 g
- Operating temperature: -25 to +50 °C
- Storage temperature: -40 to +80 °C
What’s Included
- Lovato DM4T1500 solid-core current transformer
- Basic installation and safety information
- Factory packaging for transit protection
Applications
- Industrial switchboards and distribution panels
- Metering and energy monitoring systems
- Protection relays and control equipment interfaces
- Motor control centres and feeder circuits
- Power quality and load analysis projects
Frequently Asked Questions
What is the primary current rating of the Lovato DM4T1500?
The primary current Ipn (/5) is 1500 A.
Does the DM4T1500 comply with recognised standards?
Yes, it conforms to IEC/EN/BS 61869-1 and IEC/EN/BS 61869-2.
What is the rated insulation voltage of this current transformer?
The rated insulation voltage Ui is 720 V.
What are the operating and storage temperature ranges?
Operating is −25 to +50 °C; storage is −40 to +80 °C.
Is the DM4T1500 a solid-core or split-core CT?
It is a solid-core type current transformer from Lovato.
Safety note: Install and commission only by qualified personnel. De‑energise circuits before work, follow IEC/EN/BS 61869 guidance, and ensure insulation and clearances are appropriate for 720 V Ui.
| Manufacturer Part Number | DM4T1500 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85389091 |
| Barcode | 8013975187210 |
