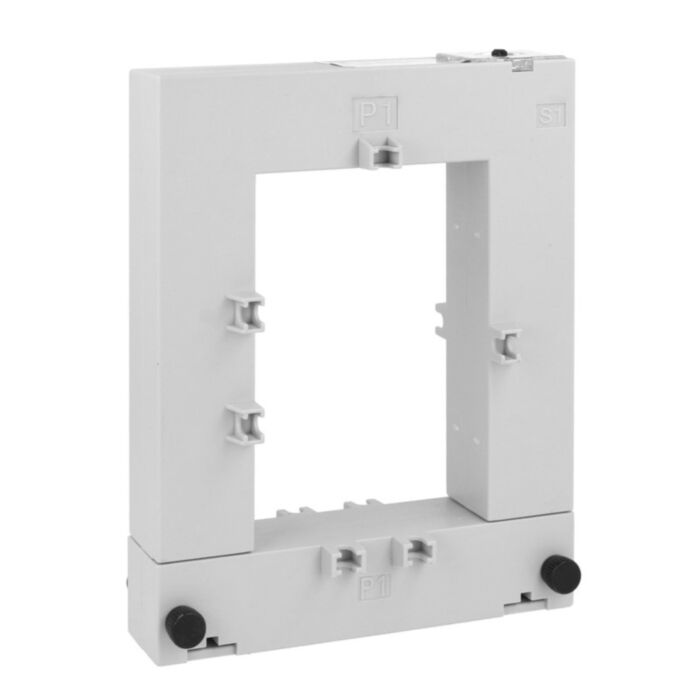

DM3TA1500 - SPLIT C/TRANSFORMER 1500/5A 80X120MM
MPN: DM3TA1500
Special Price
£182.58
£152.15
Regular Price
£214.80
Why Choose the DM3TA1500?
Lovato’s DM3TA1500 split-core current transformer delivers dependable current measurement for high-load installations. Designed for 1500 A (/5) applications, the DM3TA1500 streamlines retrofit work thanks to its split-core design, minimising downtime during installation. With a rated insulation voltage of 720 V and compliance to IEC/EN 60044-1, this CT provides reliable performance and measurement consistency in demanding industrial and commercial switchgear environments.
Built for real-world conditions, the Lovato current transformer operates from -25 to +50 °C and can be stored between -40 and +80 °C without issue. Weighing 1250 g and backed by Lovato’s sustainability certification, it suits panel builders and maintenance teams seeking a robust, retrofit-friendly CT for energy monitoring, sub-metering, and general current measurement across modern electrical distribution systems.
Key Benefits
- Split-core design enables retrofit installation with minimal downtime.
- Rated for 1500 A (/5) primary current applications.
- Complies with IEC/EN 60044-1 for dependable performance.
- 720 V rated insulation enhances electrical safety margins.
- Operates from -25 to +50 °C in harsh environments.
- 1250 g weight for manageable handling during installation.
- Sustainability certification supports responsible product selection.
Technical Specification
- Product type designation: DM3TA1500
- Rated insulation voltage Ui (IEC/EN): 720 V
- Weight: 1250 g
- Operating temperature: -25 to +50 °C
- Storage temperature: -40 to +80 °C
What’s Included
- Lovato DM3TA1500 split-core current transformer
- Manufacturer datasheet (downloadable)
- Basic installation instructions
Applications
- Retrofit current measurement on existing cables and busbars
- Energy monitoring and sub-metering in switchboards
- Industrial and commercial electrical distribution panels
- Panel upgrades where disconnecting conductors is impractical
- Facilities management and building services metering
Frequently Asked Questions
What is the primary current rating of the DM3TA1500?
It is specified for 1500 A (/5) primary current applications.
Is the DM3TA1500 a split-core current transformer?
Yes, it is a split-core CT, allowing easier retrofit installation.
What standards does this current transformer conform to?
It conforms to IEC/EN 60044-1.
What is the rated insulation voltage Ui?
The rated insulation voltage (Ui) is 720 V.
What are the operating and storage temperature ranges?
Operating temperature is -25 to +50 °C; storage temperature is -40 to +80 °C.
Safety note: Install and commission only by qualified personnel. Always de-energise conductors before fitting the split-core CT and follow the manufacturer’s instructions, IEC/EN 60044-1, and local regulations.
| Manufacturer Part Number | DM3TA1500 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85389091 |
| Barcode | 8013975178799 |
