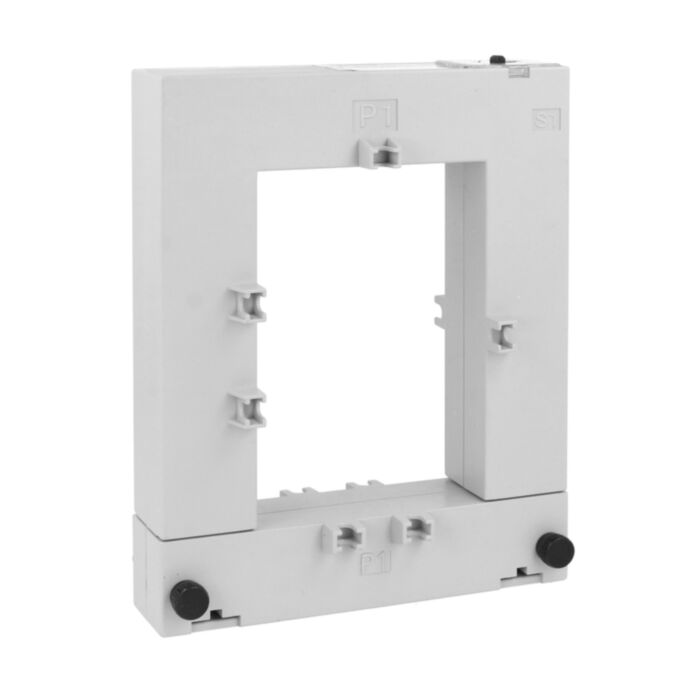

DM3TA1250 - SPLIT C/TRANSFORMER 1250/5A 80X120MM
MPN: DM3TA1250
Special Price
£182.58
£152.15
Regular Price
£214.80
Why Choose the DM3TA1250?
The Lovato DM3TA1250 is a split-core current transformer engineered for dependable measurement in high-current installations. With a primary current rating of 1250 A (/5), the DM3TA1250 supports /5 A secondary systems and carries a rated insulation voltage of 720 V. Built to IEC/EN 60044-1, this CT offers reliable performance from -25 to +50 °C and weighs 1250 g for robust, repeatable operation.
Designated as product type DM3TA1250 by Lovato, this current transformer aligns with UK industrial specifications referencing IEC/EN 60044-1. It stores safely between -40 and +80 °C and retains performance across demanding environments. Suitable for metering arrangements using /5 A secondaries and sites specifying split-core CTs, it provides a practical, standards-based choice where reliable current measurement and sustainability certification are required.
Key Benefits
- Split-core CT type for installations specifying split-core transformers.
- 1250 A primary rating supports high-current measurement tasks.
- Rated insulation voltage 720 V enhances operational safety.
- Operates from -25 to +50 °C ambient conditions.
- Conforms to IEC/EN 60044-1 for recognised performance.
- /5 A secondary compatibility indicated by Ipn (/5) designation.
- 1250 g weight reflects a solid, durable construction.
Technical Specification
- Product type designation: DM3TA1250
- Rated insulation voltage Ui (IEC/EN): 720 V
- Weight: 1250 g
- Operating temperature: -25 to +50 °C
- Storage temperature: -40 to +80 °C
What’s Included
- Lovato DM3TA1250 current transformer
- Basic installation and safety instructions
- Manufacturer product datasheet
- Protective packaging
Applications
- High-current measurement in electrical switchboards and panels
- Metering setups using /5 A secondary systems
- Projects specifying split-core current transformers
- Industrial energy monitoring up to 1250 A primary
Frequently Asked Questions
What is the primary current rating of the DM3TA1250?
It is rated for 1250 A, with the Ipn (/5) designation indicating a 5 A secondary.
Which standard does this current transformer comply with?
It conforms to IEC/EN 60044-1.
What is the rated insulation voltage?
The rated insulation voltage Ui is 720 V.
What are the operating and storage temperature ranges?
Operating range is -25 to +50 °C; storage range is -40 to +80 °C.
What is the CT type and weight?
It is a split-core CT and weighs 1250 g.
Safety note: Install and commission only by qualified personnel. Always isolate circuits before work, adhere to local regulations, and do not exceed the stated electrical and environmental ratings.
| Manufacturer Part Number | DM3TA1250 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85389091 |
| Barcode | 8013975178782 |
