DM3TA0600 - SPLIT C/TRANSFORMER 600/5A 80X120MM

Why Choose the DM3TA0600?

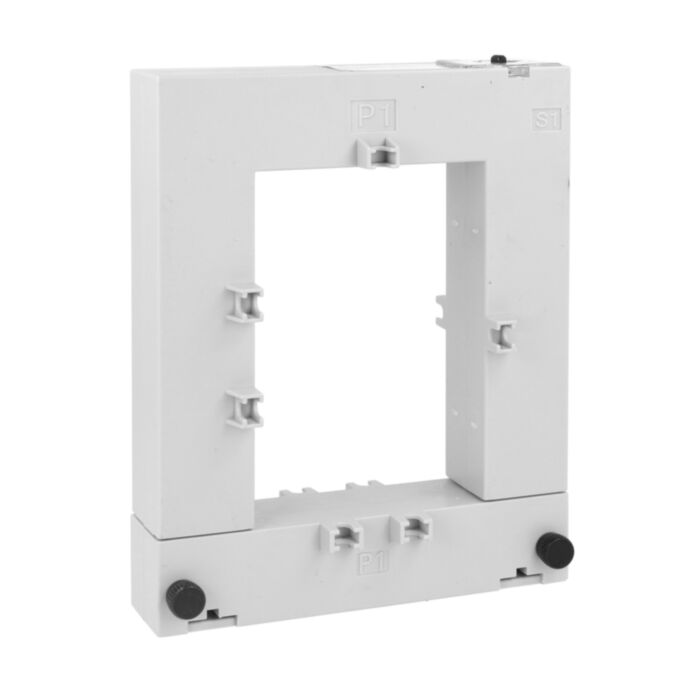

Lovato’s DM3TA0600 split-core current transformer delivers dependable measurement for high-current applications. With a primary rating of 600 A and a 5 A secondary (/5), this CT suits metering and monitoring tasks across industrial and commercial panels. Rated insulation voltage of 720 V and conformity to IEC/EN 60044-1 underpin safe integration with compatible instrumentation. The DM3TA0600 designation ensures clear identification within the Lovato range.

Built for reliable service in varied environments, this current transformer operates from -25 to +50 °C and can be stored between -40 and +80 °C. A specified weight of 1250 g reflects a robust construction, while the Sustainability certification and IEC/EN compliance aid specification on UK projects. Use it wherever a split-core current transformer of 600 A/5 performance is required.

Key Benefits

• Split-core current transformer type for established industrial and commercial applications.
• Handles 600 A primary with 5 A secondary compatibility (/5).
• Rated insulation voltage 720 V for safe integration and isolation.
• Operates from -25 to +50 °C in typical environments.
• Storage temperature range -40 to +80 °C for logistics resilience.
• Conforms to IEC/EN 60044-1 for standardised performance and selection.
• Manufacturer Sustainability certification supports specification requirements.

Technical Specification

• Product type designation: DM3TA0600
• Rated insulation voltage Ui (IEC/EN): 720 V
• Weight: 1250 g
• Operating temperature: -25 to +50 °C
• Storage temperature: -40 to +80 °C

What’s Included

• Lovato DM3TA0600 current transformer
• Basic installation and safety information
• Manufacturer datasheet

Applications

• Industrial and commercial metering and monitoring of 600 A circuits
• Switchboards, distribution panels, and control cabinets requiring CTs
• Energy monitoring systems using 5 A secondary instruments
• Projects requiring IEC/EN 60044-1 compliant current transformers
• Installations specifying a split-core CT format

Safety note: Install and service only by qualified personnel. Isolate circuits before work and follow the manufacturer’s instructions and IEC/EN 60044-1 guidelines.
