DM2TA0800 - SPLIT C/TRANSFORMER 800/5A 80X80MM

Why Choose the DM2TA0800?

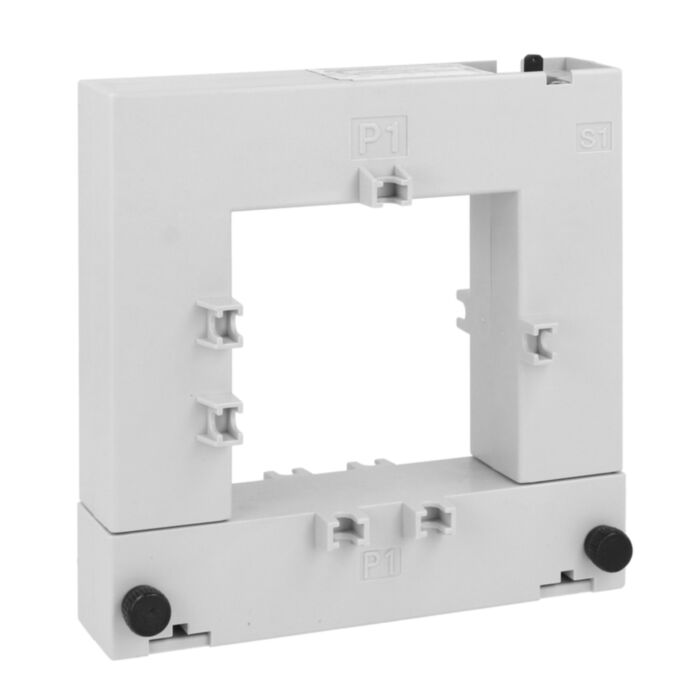

The Lovato DM2TA0800 split-core current transformer delivers straightforward retrofit measurement on high‑current conductors. Rated for 800 A primary on /5 A systems with a 720 V rated insulation, it is ideal for panel and switchboard upgrades where downtime must be minimised. Built to IEC/EN 60044-1, SKU DM2TA0800 offers dependable performance and a sturdy 1050 g build across -25 to +50 °C operating conditions.

Its split-core design enables installation around existing cables, supporting integration with meters and protection devices using 5 A secondary circuits. With -40 to +80 °C storage capability and Sustainability certification, this Lovato current transformer suits site logistics and environmental objectives. Use it to extend monitoring, sub‑metering and load assessment in commercial plants, utilities and building energy systems.

Key Benefits

• Split-core design enables retrofit installation without disconnecting conductors.
• 800 A primary rating for /5 A secondary applications.
• Rated insulation voltage Ui 720 V enhances electrical safety.
• Operates from -25 to +50 °C for demanding environments.
• Conforms to IEC/EN 60044-1 for reliable performance.
• Robust 1050 g build suited to panel and switchboard use.
• Sustainability certification supports environmental policies.

Technical Specification

• Product type designation: DM2TA0800
• Rated insulation voltage Ui (IEC/EN): 720 V
• Weight: 1050 g
• Operating temperature: -25 to +50 °C
• Storage temperature: -40 to +80 °C

What’s Included

• Lovato DM2TA0800 split-core current transformer
• Basic installation and safety information
• Manufacturer product datasheet (downloadable PDF)

Applications

• Retrofit energy monitoring and sub‑metering in switchboards and panels
• Load assessment and demand profiling on existing feeders
• Integration with meters and protection using 5 A secondary circuits
• Panel upgrades where conductor disconnection is impractical
• Building energy management and plant utilities monitoring

Safety note: Install and commission only by qualified personnel. Always de‑energise circuits, observe the 720 V insulation rating, and follow the manufacturer’s instructions and local regulations.
