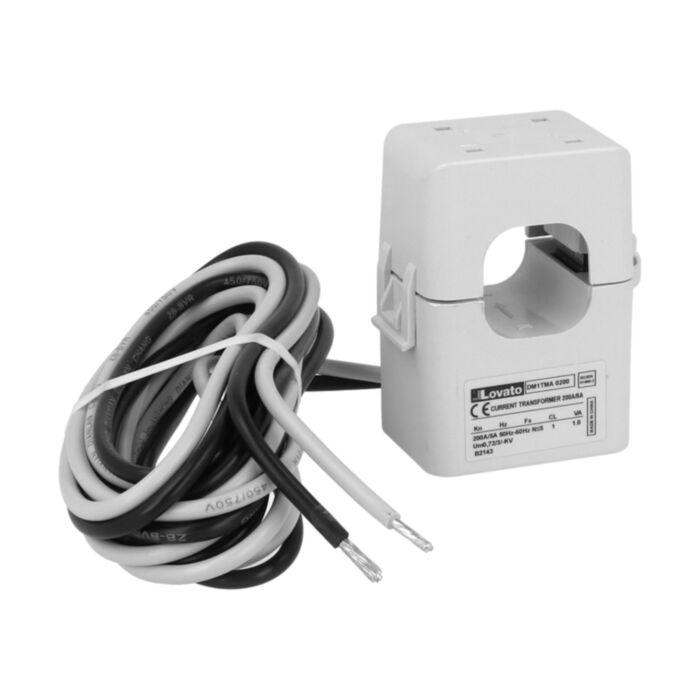

DM1TMA0200 - SPLIT C/TRANSFORMER 200/5A 50X80MM
MPN: DM1TMA0200
Special Price
£115.03
£95.86
Regular Price
£135.34
Why Choose the DM1TMA0200?
Lovato’s DM1TMA0200 split-core current transformer delivers reliable 200 A primary measurement in retrofit and new installations. The split-core design simplifies fitting around existing conductors, reducing downtime. With a rated insulation voltage of 720 V Ui and compliance to IEC/EN/BS 61869, this compact CT supports monitoring and control across industrial and commercial panels.
Built for demanding environments, the DM1TMA0200 operates from -25 to +50 °C and weighs 200 g for easy handling in crowded enclosures. With sustainability certification and solid standards compliance, it is a dependable choice for energy monitoring, sub‑metering and protection circuits. Store between -40 and +80 °C to maintain performance and longevity.
Key Benefits
- Split-core design enables quick installation around existing conductors.
- 200 A primary current Ipn (/5) rating suits diverse loads.
- Rated insulation voltage 720 V Ui enhances electrical isolation.
- Operates from -25 to +50 °C for varied site conditions.
- Lightweight 200 g for easy handling in crowded panels.
- Compliant with IEC/EN/BS 61869-1 and 61869-2 standards.
- Supports energy monitoring, sub-metering and protection applications.
- Sustainability certification aids environmentally responsible procurement.
Technical Specification
- Product type designation: DM1TMA0200
- Rated insulation voltage Ui (IEC/EN): 720 V
- Weight: 200 g
- Operating temperature: -25 to +50 °C
- Storage temperature: -40 to +80 °C
What’s Included
- Lovato DM1TMA0200 split-core current transformer
- Manufacturer datasheet (digital download)
- Basic safety and installation guidance
Applications
- Energy monitoring and sub-metering in commercial and industrial sites
- Retrofit current measurement in existing switchboards and panels
- Protection and control circuits requiring compliant current transformation
- Load analysis and distribution board monitoring
Frequently Asked Questions
What is the Lovato DM1TMA0200?
The DM1TMA0200 is a split-core current transformer for 200 A primary circuits.
Which standards does it conform to?
It conforms to IEC/EN/BS 61869-1 and IEC/EN/BS 61869-2.
What is the operating temperature range?
It operates from -25 to +50 °C, with storage from -40 to +80 °C.
How much does the transformer weigh?
The unit weighs 200 g, aiding easy handling in panels.
Can I install it on live conductors?
For safety, de-energise and isolate the circuit before installation and follow guidelines.
Safety note: Install and commission only by qualified personnel. Always de-energise and isolate circuits before fitting, and observe the stated ratings and applicable standards.
| Manufacturer Part Number | DM1TMA0200 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85043180 |
| Barcode | 8013975219027 |
