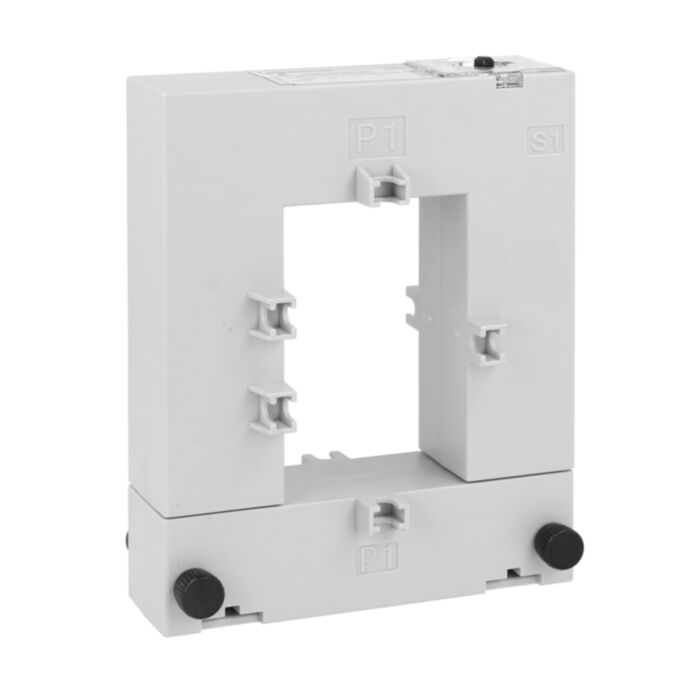

DM1TA0300 - SPLIT C/TRANSFORMER 300/5A 50X80MM

Why Choose the DM1TA0300?

Lovato DM1TA0300 is a split-core current transformer for reliable current measurement in 300 A circuits. Rated insulation voltage Ui 720 V and IEC/EN 60044-1 conformity ensure trustworthy performance in switchboards and panels. The split-core design aids straightforward installation while preserving robust electrical insulation and dependable build quality.

Engineered for demanding environments, the Lovato current transformer operates from -25 to +50 °C and weighs 900 g for practical handling and installation. It is designated DM1TA0300 and aligned with IEC/EN 60044-1, with a Sustainability certification noted. Storage between -40 and +80 °C aids logistics, and the 300 A primary rating integrates cleanly with compatible metering and monitoring systems.

Key Benefits

• Split-core design supports straightforward, space-conscious installation in existing panels.
• 300 A primary rating suits medium-current feeders and distribution circuits.
• Rated insulation voltage Ui 720 V enhances electrical safety margins.
• Operates reliably from -25 to +50 °C ambient conditions.
• Conforms to IEC/EN 60044-1 for recognised CT performance standards.
• Solid 900 g build quality from trusted manufacturer Lovato.

Technical Specification

• Product type designation: DM1TA0300
• Rated insulation voltage Ui (IEC/EN): 720 V
• Weight: 900 g
• Operating temperature: -25 to +50 °C
• Storage temperature: -40 to +80 °C

What’s Included

• Lovato DM1TA0300 split-core current transformer
• Product datasheet and installation notes
• Protective packaging for transport

Applications

• Current measurement and monitoring in 300 A distribution circuits
• Retrofitting measurement points in panels using a split-core CT
• Integration with compliant metering equipment per IEC/EN 60044-1
• Industrial and commercial switchboards requiring reliable current sensing

Safety note: Install and service only by qualified personnel. Observe the 720 V insulation rating and specified temperature ranges, and isolate circuits before fitting or handling the transformer.
