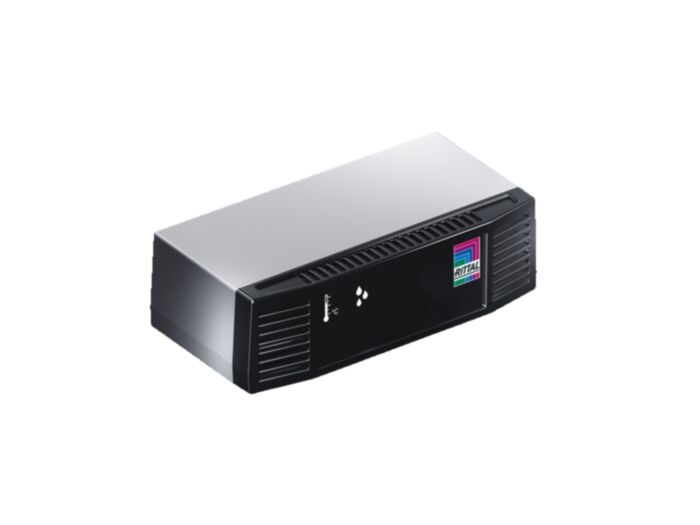

DK7030.111 Rittal CMC III Temperature/humidity sensor WHD: 80x28x40mm
MPN: DK7030.111
Alt. SKU: 7030111
Special Price
£218.63
£182.19
Regular Price
£257.21
Why Choose the Rittal DK7030.111 CMC III Temperature & Humidity Sensor?
The Rittal DK7030.111 (7030111) is a compact temperature and humidity sensor designed for integration with the CMC III monitoring system. With accurate measurement of both temperature and relative humidity inside control cabinets and enclosures, it helps ensure reliable operation of sensitive electronics by preventing overheating, condensation, and environmental fluctuations.
Supplied with a mounting plate and assembly parts, the DK7030.111 is easy to install and connects quickly to the CMC III Processing Unit via its integrated RJ45 CAN bus interface.
Key Features
- Dual measurement: monitors both temperature and humidity inside enclosures.
- Compact housing: 80 × 30 × 40 mm (approx.), easy to mount on panel surfaces.
- Simple integration: connects directly to CMC III Processing Unit via CAN bus.
- Supplied with mounting plate and parts for fast setup.
- Operating range: 0 °C to 55 °C, 5–95 % RH (non-condensing).
- Plastic housing with ventilated front and textured finish.
- Protection class: IP30 (for use inside enclosures).
Technical Specifications
- Manufacturer: Rittal
- Part Number / MPN: DK7030.111
- Alternate Order Number: 7030111
- Type: CMC III environmental sensor
- Function: Temperature and humidity measurement
- Dimensions (W × H × D): approx. 80 × 30 × 40 mm
- Operating Temperature: 0 °C to 55 °C
- Humidity Range: 5 % to 95 % RH, non-condensing
- Housing Material: Plastic, ventilated front
- Connection: RJ45 (CAN bus to CMC III PU)
- Protection Category: IP30
- Mounting: Supplied plate and assembly parts
Applications
- Monitoring temperature and humidity inside control panels.
- Data centre racks and IT enclosures with CMC III systems.
- Industrial automation cabinets requiring environmental supervision.
- Preventing condensation and heat damage to sensitive electronics.
Frequently Asked Questions
- What does the DK7030.111 measure?
- How does it connect to the system?
- What is the measurement range?
- What is its protection rating?
- Where should this sensor be used?
Trusted By Professionals
"The DK7030.111 is a reliable plug-and-play sensor for our Rittal monitoring system, giving us confidence in enclosure conditions." Data Centre Facilities Engineer, UK
It measures both temperature and relative humidity inside enclosures, helping prevent overheating or condensation issues.
The sensor connects directly to the CMC III Processing Unit using its integrated RJ45 CAN bus interface.
Operating range is 0 °C to 55 °C for temperature and 5 % to 95 % RH (non-condensing) for humidity.
The housing is rated IP30, so it is suitable for use inside protected enclosures but not for outdoor or wash-down environments.
It is designed for use inside control cabinets, IT racks, and industrial enclosures that employ the Rittal CMC III monitoring system.
| Manufacturer Part Number | DK7030.111 |
|---|---|
| Depth | 40mm |
| Manufacturer | Rittal |
| Packed Quantity | 1 |
| Product Range | DK |
| Degree of protection (IP) | IP30 |
| Alternative Product SKU | 7030111 |
| Barcode | 4028177659490 |
