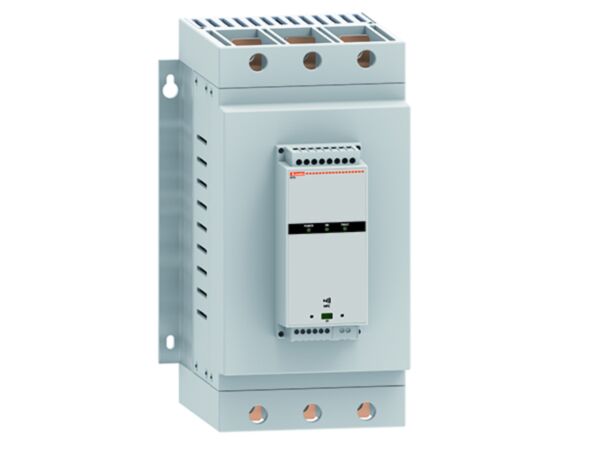

DCTLA4801200 - THYRISTOR MODULE 120 KVAR
MPN: DCTLA4801200
Special Price
£1,521.43
£1,267.86
Regular Price
£1,789.91
Why Choose the DCTLA4801200?
Lovato’s DCTLA4801200 is a thyristor module delivering 120 kvar at 480VAC for high‑capacity AC applications. It features current control and a rated operating voltage of 400...480VAC, supporting robust performance in demanding environments. With Ui 480 V and Uimp 4 kV, it is engineered for insulation integrity and surge withstand, helping maintain reliable operation in industrial control assemblies.
Built to IEC/EN 60947-4-3 and meeting EMC standards IEC/EN 61000-6-2 and 61000-6-4, this module integrates cleanly into compliant panels. A NO AC1 contact and AC1 3A contact rating simplify auxiliary interfacing. With a -30 to +80 °C storage temperature and 6680 g construction, it supports dependable logistics and sturdy cabinet mounting.
Key Benefits
- 120 kvar at 480VAC for high reactive power switching capacity.
- Rated operating voltage 400...480VAC suits common industrial supplies.
- Current control enables precise thyristor module performance.
- Ui 480 V and Uimp 4 kV enhance insulation and surge robustness.
- Compliant with IEC/EN 60947-4-3 for semiconductor control gear.
- EMC readiness via IEC/EN 61000-6-2 and 61000-6-4 conformity.
- Wide -30 to +80 °C storage range supports varied site conditions.
- Auxiliary NO AC1 contact with AC1 3A rating for interfacing.
Technical Specification
- Product type designation: DCTL
- Rated insulation voltage Ui (IEC/EN): 480 V
- Rated impulse withstand voltage Uimp: 4 kV
- Storage temperature: -30 to +80 °C
- Weight: 6680 g
What’s Included
- Lovato DCTLA4801200 thyristor module
- Manufacturer datasheet (download)
- Basic installation and safety information
Applications
- AC power control within 400...480VAC installations
- Reactive power switching up to 120kvar at 480VAC
- Industrial panels requiring current-controlled thyristor modules
- Projects built to IEC/EN 60947-4-3 and industrial EMC standards
Frequently Asked Questions
What is the operating voltage range?
The rated operating voltage is 400...480VAC.
What reactive power can it handle?
It is rated 120kvar at 480VAC.
Does this model include current control?
Yes, this thyristor module features current control.
Which standards does it comply with?
It conforms to IEC/EN 60947-4-3, IEC/EN 61000-6-2 and IEC/EN 61000-6-4.
What are the insulation and impulse withstand ratings?
Ui is 480 V and Uimp is 4 kV.
Safety note: Install and commission only by qualified personnel. Isolate all power sources before work and follow the manufacturer’s documentation and applicable IEC/EN standards.
| Manufacturer Part Number | DCTLA4801200 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85371098 |
| Barcode | 8013975238028 |
