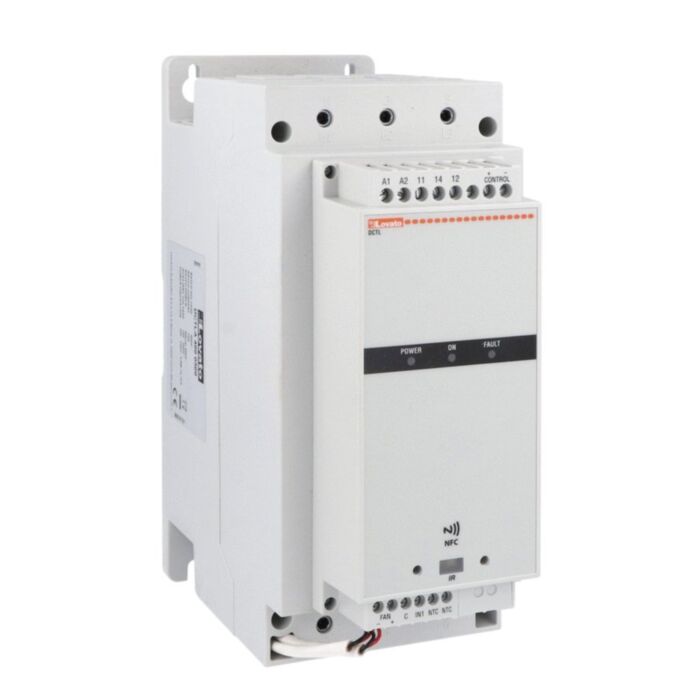

DCTLA4800600 - THYRISTOR MODULE 60 KVAR

Why Choose the DCTLA4800600?

Engineered for dependable reactive power stages, the Lovato DCTLA4800600 thyristor module delivers 60kvar at 480VAC with current control. Designed for 400...480VAC networks, it couples solid-state operation with Ui 480 V and Uimp 4 kV robustness. The DCTL designation and compliance to IEC/EN 60947-4-3 help ensure consistent performance in installations that require controlled switching and reliable service.

Supporting EMC requirements per IEC/EN 61000-6-2 and IEC/EN 61000-6-4, this module is built for integration in demanding electrical environments. A wide -30 to +80 °C storage range and a 2840 g construction suit varied project logistics. Supplied with manufacturer documentation, this Lovato thyristor module streamlines specification where 400...480VAC operation and controlled switching are essential.

Key Benefits

• Delivers 60kvar at 480VAC for substantial reactive power stages
• Rated operating voltage 400...480VAC suits common low-voltage networks
• Current control supports stable, controlled solid-state switching
• Ui 480 V and Uimp 4 kV for dielectric robustness
• Conforms to IEC/EN 60947-4-3 for semiconductor switching
• EMC compliance per IEC/EN 61000-6-2 and 61000-6-4
• Wide storage temperature range from -30 to +80 °C
• Substantial 2840 g unit for robust, dependable installations

Technical Specification

• Product type designation: DCTL
• Rated insulation voltage Ui (IEC/EN): 480 V
• Rated impulse withstand voltage Uimp: 4 kV
• Storage temperature: -30 to +80 °C
• Weight: 2840 g

What’s Included

• Lovato DCTLA4800600 thyristor module
• Manufacturer datasheet (PDF)
• Basic installation and safety information
• Protective packaging for transit

Applications

• Reactive power stages in 400...480VAC electrical systems
• Industrial and commercial projects requiring 60kvar modules at 480VAC
• Installations needing current-controlled solid-state switching
• Systems requiring conformity with IEC/EN 60947-4-3 and EMC standards

Safety note: Install and commission only by qualified personnel. De-energise equipment before work, follow IEC/EN standards and local regulations, and observe the specified voltage, storage, and insulation ratings.
