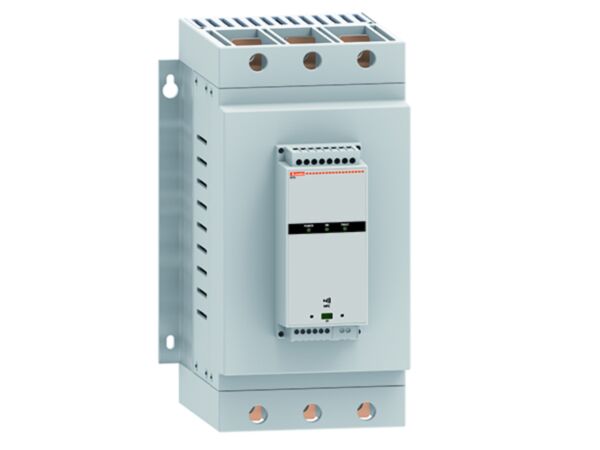

DCTLA4001000 - THYRISTOR MODULE 100KVAR
MPN: DCTLA4001000
Special Price
£1,280.57
£1,067.14
Regular Price
£1,506.55
Why Choose the DCTLA4001000?
Engineered for reliable power factor correction at 400 VAC, the Lovato DCTL series thyristor module (SKU DCTLA4001000) delivers a 100kvar switching stage with integrated current control. It supports controlled capacitor bank operation in industrial panels and distribution boards, helping reduce reactive power draw and improve system efficiency. Built for professional installations, it provides robust thyristor-based switching for modern AC networks that demand dependable performance.
With a rated operating voltage of 400 VAC, Ui 480 V and Uimp 4 kV, this Lovato DCTL module is built for robust service. Conformity with IEC/EN 60947-4-3, 61000-6-2 and 61000-6-4 underpins compliance in professional assemblies. A wide -30 to +80 °C storage range and 6680 g construction aid handling and logistics for panel builders across UK industrial environments.
Key Benefits
- 100kvar capacity at 400 VAC supports large capacitor bank stages.
- Integrated current control enables stable, reliable switching behaviour.
- Conforms to IEC/EN 60947-4-3 for thyristor switching devices.
- Meets IEC/EN 61000-6-2 and 61000-6-4 EMC requirements.
- Rated insulation voltage Ui 480 V for electrical robustness.
- Rated impulse withstand voltage 4 kV for transient resilience.
- Wide -30 to +80 °C storage range simplifies logistics and stocking.
Technical Specification
- Product type designation: DCTL
- Rated insulation voltage Ui (IEC/EN): 480 V
- Rated impulse withstand voltage Uimp: 4 kV
- Storage temperature: -30 to +80 °C
- Weight: 6680 g
What’s Included
- Lovato DCTLA4001000 thyristor module
- User/installation instructions
- Safety and compliance information
Applications
- 400 VAC power factor correction banks around 100kvar stages
- Industrial panels and distribution boards with capacitor switching
- Systems requiring current-controlled thyristor switching of capacitors
- Projects adhering to IEC/EN 60947-4-3 switchgear requirements
- EMC-conscious installations aligned with IEC/EN 61000-6-2/6-4
Frequently Asked Questions
What reactive power rating does the DCTLA4001000 support?
It is a thyristor module rated for 100kvar at 400VAC, with current control.
What is the rated operating voltage?
The module is intended for 400 VAC applications per the product description.
What insulation and impulse withstand ratings apply?
Rated insulation voltage Ui is 480 V and rated impulse withstand voltage Uimp is 4 kV.
Which standards does it conform to?
It conforms to IEC/EN 60947-4-3, IEC/EN 61000-6-2 and IEC/EN 61000-6-4.
What are the storage temperature limits and weight?
Storage temperature is -30 to +80 °C, and the module weighs 6680 g.
Safety note: Installation and commissioning must be carried out by qualified personnel. Isolate power, follow IEC/EN standards, and adhere to the manufacturer’s instructions to ensure safe operation.
| Manufacturer Part Number | DCTLA4001000 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85371098 |
| Barcode | 8013975238073 |
