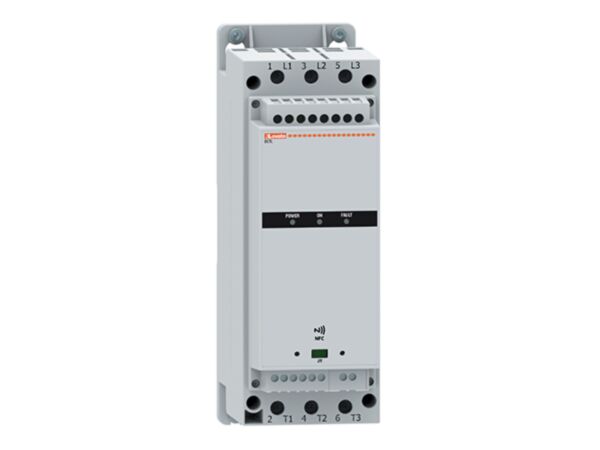

DCTLA4000150 - THYRISTOR MODULE 15KVAR

Why Choose the DCTLA4000150?

Lovato DCTLA4000150 is a DCTL series thyristor module rated 15kvar at 400VAC, featuring current control for stable, precise switching. With Ui 480 V and Uimp 4 kV, it delivers robust insulation performance. AC1 NO and AC1 3A contact ratings support dependable operation in 400VAC panels, while the 1,740 g build fits neatly into industrial control assemblies.

Engineered to IEC/EN 60947-4-3 and EMC standards IEC/EN 61000-6-2 and 61000-6-4, this thyristor module suits demanding industrial environments. A wide -30 to +80 °C storage range aids logistics and spares management. Backed by Lovato’s Sustainability certification and documentation, it integrates seamlessly into 400VAC systems where fast, reliable, current-controlled switching is required.

Key Benefits

• 15kvar rating at 400VAC supports substantial reactive power switching capacity.
• Integrated current control delivers stable, precise operation in demanding applications.
• Robust insulation: Ui 480 V and Uimp 4 kV enhance reliability.
• Conforms to IEC/EN 60947-4-3 for semiconductor switching performance assurance.
• EMC compliance to IEC/EN 61000-6-2 and 61000-6-4 for immunity and emissions.
• Wide -30 to +80 °C storage range simplifies transport and stockholding.
• AC1 NO and AC1 3A contact ratings ease selection and integration.

Technical Specification

• Product type designation: DCTL
• Rated insulation voltage Ui (IEC/EN): 480 V
• Rated impulse withstand voltage Uimp: 4 kV
• Storage temperature: -30 to +80 °C
• Weight: 1740 g

What’s Included

• Lovato DCTLA4000150 thyristor module
• Manufacturer datasheet (downloadable)
• Basic installation and safety information

Applications

• 400VAC industrial control panels requiring thyristor-based switching
• Systems needing current-controlled semiconductor switching
• Projects built to IEC/EN 60947-4-3 and EMC compliance requirements
• Installations matched to a 15kvar rating at 400VAC

Safety note: Install and commission only by qualified personnel. Isolate all supplies before work, and follow the manufacturer’s documentation and relevant IEC/EN standards.
