Danfoss VLT Compact Starter MCD 200 MCD201030T4CV1

Why Choose the Danfoss 175G5180 Soft Starter?

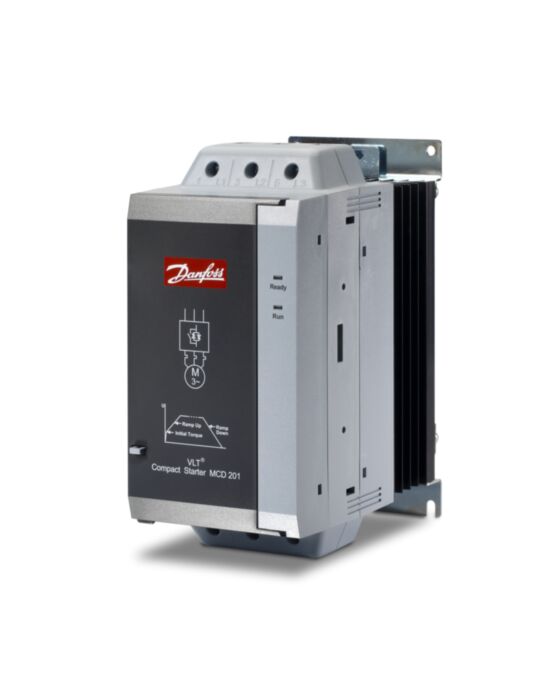

The Danfoss 175G5180, also identified as the MCD201030T4CV1, is a compact and reliable VLT® Compact Starter MCD 201 soft starter engineered for controlled motor acceleration and smooth stopping in industrial automation systems. Designed to reduce inrush current and minimise mechanical stress on motors and driven equipment, this soft starter helps improve operational reliability while extending equipment lifespan.

Part of the proven Danfoss VLT® Soft Starter MCD 200 series, the unit incorporates integrated bypass functionality to improve efficiency and reduce heat generation during continuous operation. Its compact A-frame construction and flexible DIN rail or panel mounting make it ideal for industrial control panels, OEM machinery and automation systems where installation space is limited.

With a rated motor power of 30 kW, 65 A operational current and support for three-phase 200–440 V AC systems, the Danfoss 175G5180 delivers dependable motor control for conveyors, pumps, compressors, fans and industrial process equipment.

Key Advantages

• Compact soft starter for industrial motor control applications.
• 30 kW motor rating suitable for industrial machinery.
• Three-phase 200–440 V AC operation.
• Integrated bypass relay improves efficiency and reduces thermal losses.
• Supports 2-wire and 3-wire control configurations.
• Heavy-duty starting capability for industrial environments.
• DIN rail mounting simplifies panel integration.

Key Features

• Danfoss VLT® Compact Starter MCD 201 series.
• 30 kW rated motor power.
• 65 A rated operational current.
• Three-phase 200–440 V AC supply.
• 24 VAC/VDC control voltage.
• Heavy-duty starting capability at 4 × Ie for 20 seconds.
• Integrated bypass functionality for efficient operation.
• Compact IP20 enclosure for cabinet installation.
• Compatible with grounded delta power systems.

Technical Specifications

• Manufacturer: Danfoss
• Series: VLT® Soft Starter MCD 200
• Model: MCD201030T4CV1
• SKU: 175G5180
• Product type: Compact soft starter
• Rated motor power: 30 kW
• Rated current: 65 A
• Heavy-duty current: approx. 58 A
• Input voltage: 200–440 V AC
• Input phases: 3-phase
• Control voltage: 24 VAC/VDC
• Frequency: 50 / 60 Hz
• Protection rating: IP20
• Mounting type: DIN rail / panel mounting
• Frame size: A-frame
• Dimensions (H × W × D): approx. 203 × 98 × 165 mm
• Weight: approx. 2.3 kg
• Operating temperature: up to 50°C without derating

Reliable Soft Starting for Industrial Machinery

Soft starters such as the Danfoss 175G5180 gradually ramp motor voltage during startup, helping reduce current surges and limiting mechanical stress on motors, couplings, shafts and driven equipment. This contributes to smoother operation, reduced maintenance requirements and improved overall system reliability.

The Danfoss MCD 200 series is trusted globally by industrial engineers and machine builders for dependable motor control, compact installation and energy-efficient operation. Integrated bypass technology helps minimise thermal losses during continuous motor operation.

Typical Applications

• Industrial conveyors and material handling systems.
• Pumps and water treatment installations.
• Fans, blowers and HVAC systems.
• Compressors and refrigeration equipment.
• Mixers and processing machinery.
• OEM industrial automation and machine control systems.

Trusted by Industrial Automation Engineers

Danfoss VLT® soft starters are trusted worldwide for dependable motor control, smooth startup performance and reliable operation across industrial automation and machine building applications.
