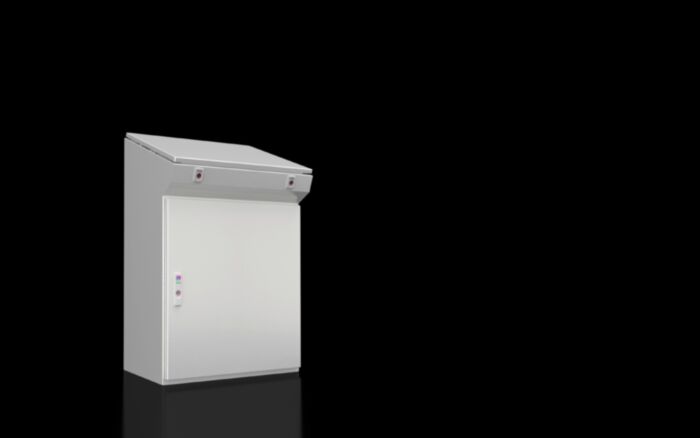

CX6746.000 Rittal CX one-piece console, WxHxD: 600x970x400 mm, sheet steel

Why Choose the Rittal CX6746.000 CX One-Piece Console?

The Rittal CX6746.000 is a robust one-piece console enclosure designed for industrial control, monitoring and operator interface applications. As part of the Rittal CX console system, it provides a reliable and ergonomic solution for housing control equipment at machine or process level.

Engineered for demanding environments, this console combines a large mounting area with excellent protection against dust and water ingress. Its integrated design allows operators to conveniently access controls and monitoring systems while ensuring equipment safety and durability.

Constructed from high-quality sheet steel with a durable powder-coated finish, the CX6746.000 delivers long-term performance. With a 600 × 970 × 400 mm form factor and IP55 protection rating, it is ideal for industrial automation, manufacturing systems and control stations.

Key Advantages

• Ergonomic console design for operator control and monitoring.
• Large mounting plate area for flexible component installation.
• IP55 protection against dust and water ingress.
• Robust steel construction for industrial durability.
• Integrated design simplifies installation and system layout.
• Suitable for control stations and machine-level interfaces.

Key Features

• Rittal CX one-piece console system.
• Single-door front access with secure locking.
• Large internal mounting plate for control equipment.
• Hinged console cover with support stays.
• 3-point locking system for enhanced security.
• Integrated gland plate for cable entry.

Technical Specifications

• Manufacturer: Rittal
• Series: CX Console System
• Model: CX6746.000
• Product type: One-piece console / stand console
• Material: Sheet steel (1.5 mm enclosure, 2.0 mm door/cover)
• Mounting plate: Sheet steel, approx. 2.5 mm, zinc-plated
• Surface finish: Dipcoat-primed and powder-coated
• Colour: RAL 7035 light grey
• Dimensions (W × H × D): 600 × 970 × 400 mm
• Top depth: approx. 495 mm
• Mounting plate size: approx. 520 × 900 mm
• Protection rating: IP55 (IEC 60529)
• Impact resistance: IK10
• Doors: 1 front door with 3-point locking
• Weight: approx. 45 kg

Optimised for Control and Monitoring Applications

The CX6746.000 console is specifically designed for operator interface environments, where accessibility, visibility and protection are essential. Its angled console design allows easy interaction with control devices, displays and HMIs while maintaining enclosure integrity.

The integrated mounting plate provides ample space for electrical components, ensuring flexible configuration for automation systems, machine control panels and process monitoring stations.

Typical Applications

• Industrial control stations and operator consoles.
• Machine-level control panels and HMI installations.
• Manufacturing and process automation systems.
• Production line monitoring and control interfaces.
• OEM machinery and system integration.

Trusted by Industrial Engineers Worldwide

Rittal CX console systems are trusted by engineers for delivering ergonomic control solutions, durable construction and reliable protection in industrial environments.
