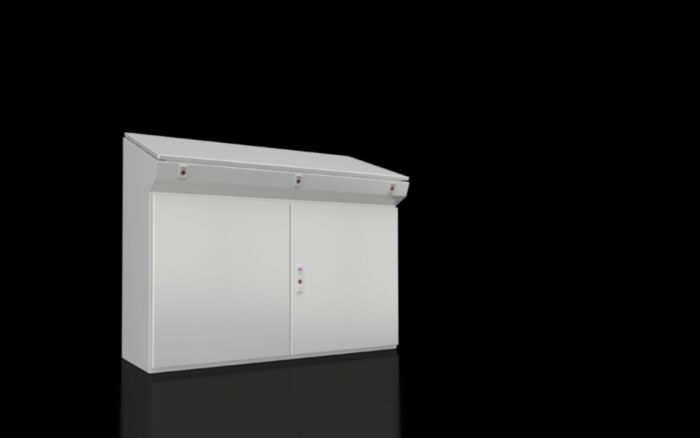

CX6742.000 Rittal CX one-piece console, WxHxD: 1200x970x400 mm, sheet steel

Why Choose the Rittal CX6742.000 CX One-Piece Console?

The Rittal CX6742.000 is a heavy-duty one-piece console enclosure designed for industrial control, monitoring and operator interface applications. As part of the Rittal CX console system, it provides a robust and ergonomic platform for housing control equipment in demanding environments.

This console is engineered to deliver both protection and accessibility, allowing operators to interact efficiently with control systems while ensuring equipment safety. Its large internal mounting area makes it ideal for complex automation systems requiring extensive component installation.

With a 1200 × 970 × 400 mm enclosure size and IP55 protection rating, the CX6742.000 is well suited for industrial automation, production lines and machine control applications. It offers high mechanical strength and durability thanks to its sheet steel construction.

Key Advantages

• Large console format for extensive control system layouts.
• IP55 protection against dust and water ingress.
• Ergonomic design for operator control and monitoring.
• Robust sheet steel construction for industrial environments.
• Supports complex automation and control installations.
• Integrated design simplifies installation and maintenance.

Key Features

• Rittal CX one-piece console system.
• Double front doors with 3-point locking system.
• Large internal mounting plate for flexible configuration.
• Hinged console cover with support stays.
• Integrated gland plate for cable entry.
• High impact resistance IK10 rating.

Technical Specifications

• Manufacturer: Rittal
• Series: CX Console System
• Model: CX6742.000
• Product type: One-piece console enclosure
• Material: Sheet steel (1.5 mm enclosure, 2.0 mm door/cover)
• Mounting plate: Sheet steel, approx. 2.5 mm, zinc-plated
• Surface finish: Dipcoat-primed and powder-coated
• Colour: RAL 7035 light grey
• Dimensions (W × H × D): 1200 × 970 × 400 mm
• Mounting plate size: approx. 1120 × 900 mm
• Top depth: approx. 495 mm
• Protection rating: IP55 (IEC 60529)
• Impact resistance: IK10
• Doors: Double front doors with 3-point locking
• Weight: approx. 83 kg

Designed for Industrial Operator Control

The CX6742.000 is specifically built for operator interface environments where visibility, accessibility and protection are critical. Its angled console design allows convenient access to controls, displays and HMIs, improving usability in industrial settings.

The spacious mounting plate enables complex layouts with multiple components, making it ideal for advanced automation systems and control panels.

Typical Applications

• Industrial control stations and operator consoles.
• Machine-level HMI and control systems.
• Manufacturing and process automation lines.
• Production monitoring and control interfaces.
• OEM machinery and system integration.

Trusted by Industrial Engineers Worldwide

Rittal CX console systems are widely trusted for delivering ergonomic control solutions, high durability and reliable protection in industrial automation environments.
