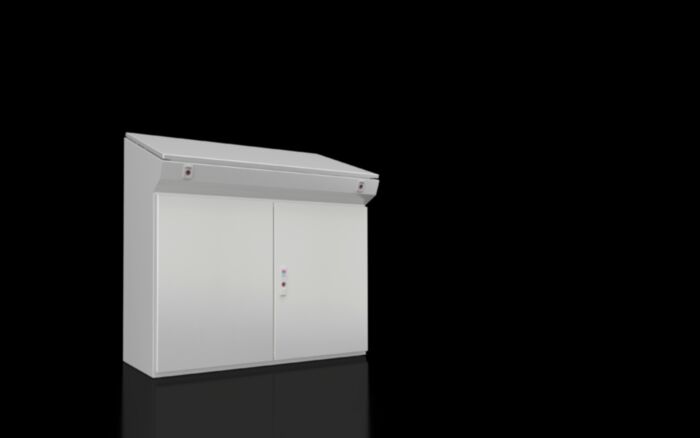

CX6740.000 Rittal CX one-piece console, WxHxD: 1000x970x400 mm, sheet steel

Why Choose the Rittal CX6740.000 CX One-Piece Console?

The Rittal CX6740.000 is a robust one-piece console enclosure designed for industrial control, monitoring and operator interface applications. As part of the Rittal CX console system, it provides a durable and ergonomic solution for housing control equipment in demanding environments.

This console is engineered to deliver both protection and usability, allowing operators to interact efficiently with control systems while safeguarding sensitive components. Its large mounting area supports complex configurations for automation and process control systems.

With a 1000 × 970 × 400 mm enclosure size and a high IP55 protection rating, the CX6740.000 is ideal for industrial automation, manufacturing and machine-level control installations. Its steel construction ensures long-term reliability in harsh operating conditions.

Key Advantages

• Large console format for advanced control system layouts.
• IP55 protection against dust and water ingress.
• Ergonomic design for operator control and monitoring.
• Robust sheet steel construction for industrial durability.
• Supports complex automation and control applications.
• Integrated design simplifies installation and maintenance.

Key Features

• Rittal CX one-piece console system.
• Double front doors with 3-point locking system.
• Large internal mounting plate for flexible configuration.
• Hinged console cover with support stays.
• Integrated gland plate for cable entry.
• High impact resistance with IK10 rating.

Technical Specifications

• Manufacturer: Rittal
• Series: CX Console System
• Model: CX6740.000
• Product type: One-piece console enclosure
• Material: Sheet steel (1.5 mm enclosure, 2.0 mm door/cover)
• Mounting plate: Sheet steel, approx. 2.5 mm, zinc-plated
• Surface finish: Dipcoat-primed and powder-coated
• Colour: RAL 7035 light grey
• Dimensions (W × H × D): 1000 × 970 × 400 mm
• Mounting plate size: approx. 920 × 900 mm
• Top depth: approx. 495 mm
• Protection rating: IP55 (IEC 60529)
• Impact resistance: IK10
• Doors: Double front doors with 3-point locking
• Weight: approx. 72 kg

Designed for Industrial Operator Control

The CX6740.000 is specifically designed for operator interface environments where accessibility, visibility and protection are critical. Its angled console design allows convenient access to controls, displays and HMIs, improving usability in industrial settings.

The large mounting plate enables flexible installation of control components, making it ideal for complex automation systems and industrial process control applications.

Typical Applications

• Industrial control stations and operator consoles.
• Machine-level HMI and control systems.
• Manufacturing and process automation lines.
• Production monitoring and control interfaces.
• OEM machinery and system integration.

Trusted by Industrial Engineers Worldwide

Rittal CX console systems are trusted by engineers for delivering ergonomic control solutions, robust construction and reliable protection in industrial automation environments.
