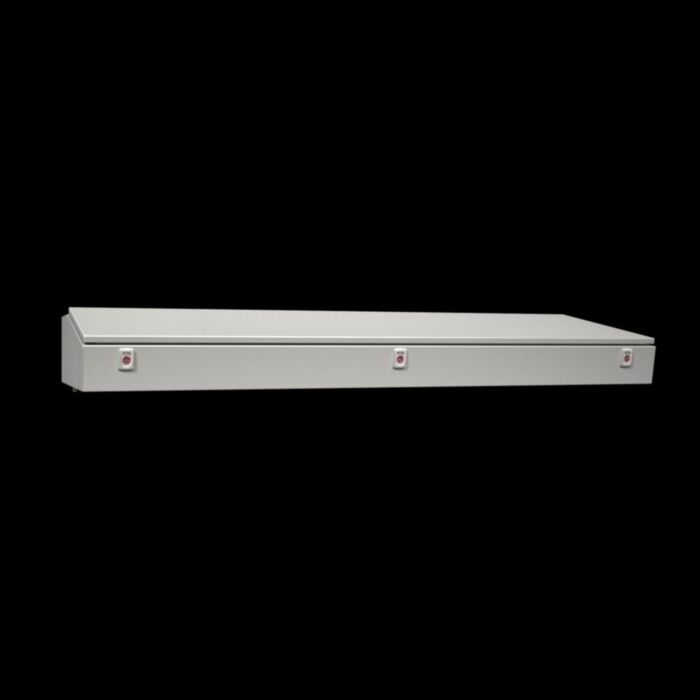

CX6711.000 Rittal CX console system, desk unit, W: 800 mm

Why Choose the Rittal CX6711.000 CX Desk Unit?

The Rittal CX6711.000 is a robust desk unit designed for the Rittal CX modular console system. It serves as the central section in a two-part or three-part console assembly, providing a stable and ergonomic platform for industrial control and operator interface equipment.

As part of the CX console platform, this unit acts as the structural bridge between pedestal and top section components, enabling flexible workstation configurations. It is ideal for machine builders and automation engineers who require adaptable, space-efficient and durable control stations.

Manufactured from high-quality sheet steel with a powder-coated finish, the CX6711.000 delivers long-term durability and mechanical strength. With a width of 800 mm and integrated sealing, it provides reliable protection for installed components with an IP55 rating.

Key Advantages

• Central desk unit for modular CX console systems.
• Supports two-part and three-part console configurations.
• Provides a stable and ergonomic operator workstation platform.
• IP55 protection against dust and water ingress.
• Durable sheet steel construction for industrial environments.
• Flexible integration with CX pedestals and top sections.

Key Features

• Rittal CX console system desk unit.
• Designed for modular console assembly.
• Hinged cover with rear mounting and support stays.
• Integrated cable entry opening in enclosure base.
• Cam lock system with 3 mm double-bit insert.
• Powder-coated RAL 7035 finish.

Technical Specifications

• Manufacturer: Rittal
• Series: CX Console System
• Model: CX6711.000
• Product type: Desk unit (console centre section)
• Material: Enclosure: sheet steel 1.5 mm, Cover: sheet steel 2.0 mm
• Surface finish: Dipcoat primed, powder-coated, textured paint
• Colour: RAL 7035 light grey
• Width: 800 mm
• Depth: 745 mm
• Height (front): approx. 130 mm
• Height (rear): approx. 200 mm
• Protection rating: IP55 (IEC 60529)
• NEMA rating: NEMA 1, NEMA 12
• Impact resistance: IK10
• Lock type: Cam lock with 3 mm double-bit insert
• Number of locks: 2
• Net weight: approx. 25 kg

Modular Console Platform for Industrial Workstations

The CX6711.000 is a key structural element of the Rittal CX console system. It connects lower pedestal units with upper console sections, enabling the creation of complete operator workstations for control, monitoring and automation tasks.

Its modular design allows engineers to customise console layouts according to application requirements, ensuring ergonomic access, efficient cable routing and reliable equipment protection.

Typical Applications

• Industrial control consoles and operator workstations.
• Machine control and HMI integration.
• Process automation and monitoring systems.
• Manufacturing and production environments.
• OEM machinery and system integration.

Trusted by Industrial Engineers Worldwide

Rittal CX console systems are trusted by engineers for delivering modular flexibility, ergonomic workstation design and long-term reliability in industrial control environments.
