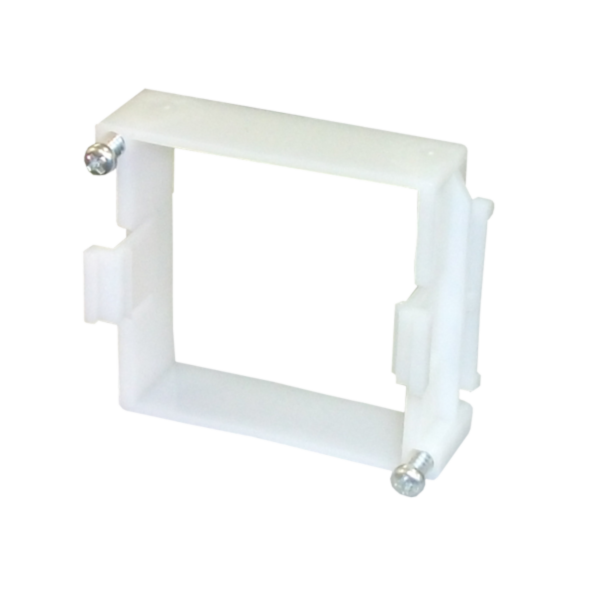

CTB IMO Flush Mounting Collar For The TA11 and TA8 Timers
MPN: CTB
Special Price
£1.92
£1.60
Regular Price
£2.77
CTB IMO Flush Mounting Collar For The TA11 and TA8 Timers is available to buy in increments of 1
Why Choose the IMO CTB Flush Mounting Collar for TA11 and TA8 Timers
The IMO CTB is the dedicated flush mounting collar for IMO TA11 and TA8 timer modules. It enables neat, secure panel flush installation and is specifically required whenever a TA11 or TA8 is mounted flush in a cut out, ensuring the timer seats correctly and the front finish remains professional.
At a Glance
- Accessory type: Flush mounting collar
- Compatibility: IMO TA11 and TA8 timer series
- Use case: Required for flush panel mounting of TA11 or TA8 timers
- Typical net weight: approx. 15 g
- Operating environment: Use with timers within their specified ambient temperature range
Key Benefits
- Essential for flush fit: Provides the correct adaptor interface for secure seating of TA11 or TA8 timers in a panel cut out.
- Clean panel aesthetic: Achieves a low profile, professional front finish.
- Simple stocking: One collar for both TA11 and TA8 families, simplifying spares and BOMs.
Technical Specifications
- Manufacturer: IMO Precision Controls
- Accessory code: CTB
- Compatible timers: TA11 series multifunction timers, TA8 series electronic timers
- Function: Adaptor collar required for flush mounting
- Net weight: approximately 15 g
- Associated sockets: TA11 flush mounting socket STF-11; TA8 flush mounting socket STF-8
- Mounting: Panel cut out, collar secures timer in flush position
Typical Applications
- Control panels and OEM machinery requiring flush mounted TA11 or TA8 timers
- Upgrades and retrofits where a neat, low profile finish is required
- Maintenance spares to accompany TA11 or TA8 replacements
Installation tip: For flush mounting a TA11 or TA8 timer, specify and fit the CTB collar. Use the correct flush mounting socket (STF-11 for TA11, STF-8 for TA8) and follow the timer datasheet for panel cut out dimensions and ambient limits.
Frequently Asked Questions
Is the CTB collar mandatory for flush mounting
Yes. IMO states that for flush mounting a TA11 or TA8 timer an adaptor CTB is required. Without it, the timer will not seat correctly in the panel cut out.
Does one collar fit both TA8 and TA11 timers
Yes. The CTB is listed as the flush mounting collar for both series, simplifying specification and stocking.
What other parts might I need for a flush installation
Use the matching flush mounting socket for the timer family, for example STF-11 with TA11 or STF-8 with TA8, in addition to the CTB collar.
What is the collar’s weight
The adaptor CTB has a typical net weight of approximately 15 g.
Where do I find the panel cut out dimensions
Panel cut out and installation drawings are provided in the TA11 and TA8 datasheets. Refer to the specific timer model you are mounting.
Downloads
| Manufacturer Part Number | CTB |
|---|---|
| Packed Quantity | 1 |
| Barcode | 5056207487224 |
| Manufacturer | IMO |
