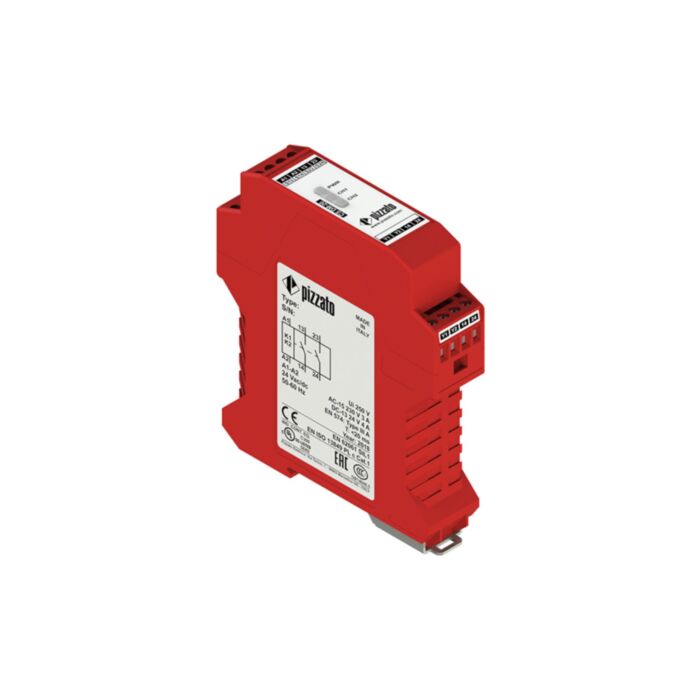

CS DM-20M120 Pizzato Safety module for bimanual controls, according EN ISO 13851 type III A, 2NO

Why Choose the Pizzato CSDM-20M120 Safety Module?

The Pizzato CSDM-20M120 is a robust bimanual control safety module designed for industrial machines that require two-hand operation validation to ensure operator safety. Built in accordance with EN ISO 13851 (Type III A), it guarantees that machine start-up is only possible when both control inputs are activated simultaneously and intentionally.

As part of the reliable Pizzato CS safety module series, the CSDM-20M120 provides dependable safety logic for automation systems, presses, and industrial production equipment. It is widely used in applications where preventing accidental activation is critical to maintaining safe machine operation and regulatory compliance.

With its compact DIN-rail compatible housing and industrial-grade design, this module integrates easily into control panels and safety circuits. The 120 V AC supply version makes it suitable for installations where higher voltage control architectures are required in industrial environments.

Key Advantages

• Designed for bimanual (two-hand) safety control systems.
• Complies with EN ISO 13851 Type III A standard.
• Prevents accidental machine start via simultaneous input monitoring.
• Suitable for 120 V AC industrial control systems.
• Compact design for DIN rail / panel integration.
• High reliability for continuous industrial operation.

Key Features

• Pizzato CSDM safety module series.
• Model: CSDM-20M120.
• Bimanual control safety logic module.
• Supply voltage: 120 V AC.
• 2 NO safety output contacts.
• Monitors simultaneity of two-hand operation.
• DIN rail mounting compatible enclosure (typical CS series design).

Technical Specifications

• Manufacturer: Pizzato
• Series: CS / CSDM Safety Modules
• Model: CSDM-20M120
• Product type: Bimanual control safety module
• Safety standard: EN ISO 13851 Type III A
• Supply voltage: 120 V AC
• Output contacts: 2 NO safety outputs
• Mounting type: DIN rail / panel mounting
• Housing: Industrial modular enclosure
• Operating temperature: Industrial standard range (-25 to +55°C typical)
• Protection rating: IP20 (typical CS series)

Reliable Safety Control for Industrial Applications

The Pizzato CSDM-20M120 ensures that hazardous machine functions can only be initiated when both operator controls are activated within a defined simultaneity window. This reduces the risk of accidental start-up and improves operator safety in high-risk industrial environments such as presses and automated machinery.

It integrates seamlessly into safety control circuits, helping machine builders comply with modern functional safety requirements while maintaining efficient production workflows.

Typical Applications

• Industrial press and stamping machines.
• Automated production lines.
• Machine tools and manufacturing systems.
• Robotics safety workcells.
• Packaging and assembly machinery.
• OEM machine safety systems.

Trusted in Industrial Safety Systems Worldwide

Pizzato safety modules are widely used by machine builders and automation engineers to ensure safe operation, compliance with international standards, and reliable machine control in industrial environments.
