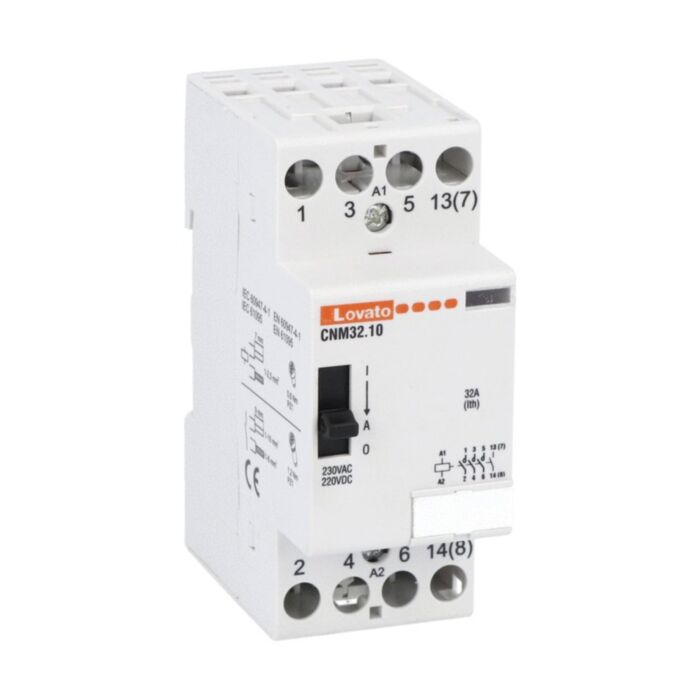

CNM3210220 - MODULAR CONTACTOR CN32 220/230VAC MANUAL

Why Choose the CNM3210220?

Designed for dependable switching in building and industrial panels, the Lovato CNM3210220 is a modular contactor with manual control offering a four-pole 4NO configuration and 32 A AC-1 capability. This compact, two-module DIN width device provides clear, hands-on operation for maintenance or override needs while maintaining robust performance. It’s an ideal choice where reliable, standards-compliant control is required across lighting and other resistive load applications.

Built to last, the CNM contactor delivers a mechanical life of 3,000,000 cycles and withstands transients with a 4 kV Uimp and 440 V Ui. Rated supply is 220VAC/VDC, with IP20 frontal protection and pollution degree 3. Operates from -25 to +70 °C, stores -30 to 80 °C, and is specified to 2000 m altitude, meeting IEC/EN 60947 and 61095 requirements.

Key Benefits

• 32 A Ith and AC-1 capability for dependable resistive load switching.
• Four normally open contacts (4NO) for clear, reliable isolation and control.
• Manual control enables on-site override and straightforward operation.
• Compact, 2-module DIN size helps optimise panel space.
• Withstands surges with 4 kV impulse voltage and 440 V insulation.
• Long mechanical life of 3,000,000 cycles reduces maintenance interventions.
• Operates from -25 to +70 °C with IP20 frontal protection.

Technical Specification

• Product type designation: CNM
• Ith (IEC): 32 A
• Rated insulation voltage Ui (IEC/EN): 440 V
• Rated impulse withstand voltage Uimp: 4 kV
• Mechanical life: 3000000 cycles
• Operating temperature: -25 to +70 °C
• Storage temperature: -30 to 80 °C
• Max altitude: 2000 m
• Terminal tightening torque (max): 1.2 Nm
• Weight: 260 g
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato CNM3210220 modular contactor (4NO)
• Installation and operation leaflet
• Original manufacturer packaging

Applications

• Lighting and other resistive load switching in commercial buildings
• Electric heating circuits and panel heaters
• Control of resistive elements in HVAC and building services
• Distribution boards and control panels requiring manual contactors
• General building automation where manual override is needed

Safety note: Installation and maintenance must be performed by qualified electricians. Isolate the supply before work, tighten terminals to a maximum of 1.2 Nm, and operate within the specified temperature, altitude and IP20 limits.
