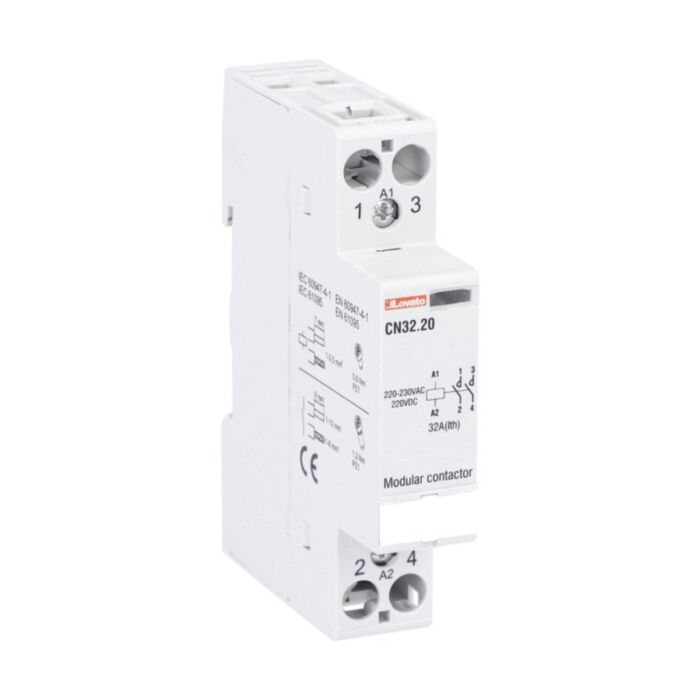

CN3220220 - MODULAR CONTACTOR CN32 220/230VAC
MPN: CN3220220
Special Price
£36.74
£30.62
Regular Price
£61.24
Why Choose the CN3220220?
Lovato’s CN3220220 modular contactor delivers reliable switching in a compact 1 DIN module. This 2NO device provides an IEC conventional free air thermal current Ith of 32 A for AC1 duty, with a rated supply voltage of 220VAC/VDC. With a rated insulation voltage Ui of 440 V and impulse withstand Uimp of 4 kV, the CN3220220 offers robust performance for control panels and distribution boards.
Built for longevity, it boasts 3,000,000 mechanical cycles and dependable operation from -25 to +70 °C. IP20 frontal protection and Pollution Degree 3 suitability aid safe integration, while installation is straightforward with a 1.2 Nm max terminal torque. Rated for use up to 2000 m altitude and only 135 g in weight, it conforms to IEC/EN 60947-1, 60947-4-1, 60947-5-1 and IEC/EN 61095.
Key Benefits
- Compact 1 DIN module design saves valuable rail space.
- 32 A Ith rating supports dependable AC1 duty switching.
- 2NO contacts enable straightforward power or control isolation.
- Rated supply 220VAC/VDC for flexible control compatibility.
- High dielectric strength: Ui 440 V and Uimp 4 kV.
- Mechanical life of 3,000,000 cycles reduces maintenance downtime.
- Wide operating temperature range from -25 to +70 °C.
- IP20 frontal protection aids safer panel integration.
Technical Specification
- Product type designation: CN
- Ith (IEC): 32 A
- Rated insulation voltage Ui (IEC/EN): 440 V
- Rated impulse withstand voltage Uimp: 4 kV
- Mechanical life: 3000000 cycles
- Operating temperature: -25 to +70 °C
- Storage temperature: -30 to 80 °C
- Max altitude: 2000 m
- Terminal tightening torque (max): 1.2 Nm
- Weight: 135 g
- IP degree (frontal): IP20
- Pollution degree: 3
What’s Included
- Lovato CN3220220 modular contactor (2NO)
- Manufacturer datasheet and technical documentation
- Protective packaging for transit
Applications
- Switching of resistive loads (AC1 duty)
- Heating circuits and electric heaters
- Building services and automation distribution boards
- General-purpose panel switching in industrial control
- Lighting control for resistive lamp loads
Frequently Asked Questions
What is the contact configuration of the Lovato CN3220220?
It is supplied with 2NO contacts for normally open switching.
What supply voltage does this modular contactor require?
The rated supply voltage is 220VAC/VDC.
How much space does it occupy on a DIN rail?
It occupies 1 DIN module.
What is the IEC thermal current rating?
The IEC conventional free air thermal current Ith is 32 A.
Which standards does the CN3220220 conform to?
It conforms to IEC/EN 60947-1, 60947-4-1, 60947-5-1 and IEC/EN 61095.
Safety note: Installation and servicing must be performed by qualified personnel. Isolate power before work, tighten terminals to a maximum of 1.2 Nm, and operate within the specified voltage, current, temperature, altitude and pollution degree limits; IP20 protection is frontal only.
| Manufacturer Part Number | CN3220220 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975218129 |
