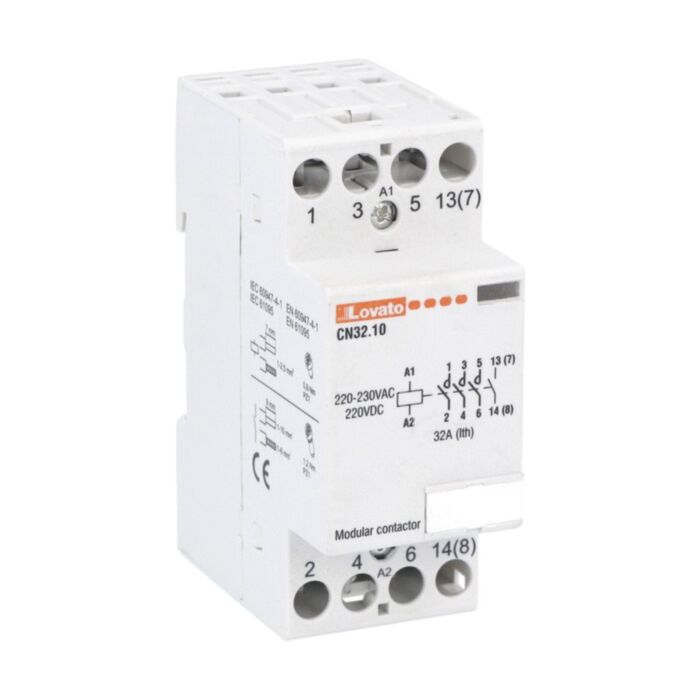

CN3210220 - MODULAR CONTACTOR CN32 220/230VAC

Why Choose the Lovato CN3210220 Modular Contactor?

The Lovato CN3210220 is a compact and reliable modular contactor designed for low-voltage switching, control and automation applications. As part of the Lovato Electric CN modular contactor range, it is suitable for switching lighting circuits, heating systems, ventilation equipment, small motors and general electrical loads in residential, commercial and industrial installations.

This modular contactor combines dependable electrical performance with a space-saving DIN rail format. Its 4-pole contact arrangement with 4 normally open contacts makes it ideal for applications where several circuits need to be switched simultaneously from a single control signal.

With a 32 A AC1 current rating and a 220-230 VAC/DC coil voltage, the CN3210220 is well suited for mains-voltage control circuits in distribution boards, consumer units and control panels. Its compact two-module housing allows straightforward installation in modular electrical enclosures.

Key Advantages

• Compact modular contactor for electrical switching and control applications.
• 32 A AC1 current rating suitable for lighting, heating and general load switching.
• 220-230 VAC/DC coil voltage for common mains-voltage control circuits.
• 4NO contact configuration for simultaneous switching of multiple circuits.
• Two-module DIN rail design saves space inside modular electrical enclosures.
• Suitable for residential, commercial and light industrial control panels.

Key Features

• Lovato Electric CN modular contactor series.
• 4-pole modular contactor with 4 normally open contacts.
• 32 A conventional free air thermal current Ith.
• 32 A AC1 / AC-7a operational current at up to 400 V.
• 8.5 A AC-3 / AC-7b operational current at up to 400 V.
• 220-230 VAC/DC rated supply voltage.
• 35 mm DIN rail mounting for quick panel installation.
• Compact two-module width for modular distribution systems.

Technical Specifications

• Manufacturer: Lovato Electric
• Series: CN Modular Contactors
• Model: CN3210220
• Product type: Modular contactor
• Contact arrangement: 4NO
• Number of poles: 4
• Rated supply voltage: 220-230 VAC/DC
• Operating voltage type: AC/DC
• Conventional free air thermal current Ith: 32 A
• Operational current AC1 / AC-7a: 32 A at ≤400 V
• Operational current AC-3 / AC-7b: 8.5 A at ≤400 V
• Rated insulation voltage Ui: 440 V
• Rated impulse withstand voltage Uimp: 4 kV
• Minimum switching capacity: ≥17 V / ≥50 mA
• Number of DIN modules: 2
• Mounting type: 35 mm DIN rail
• Terminal type: Screw terminals
• Protection rating: IP20 front
• Weight: approx. 264 g
• Package dimensions: 178 × 90 × 72 mm
• EAN: 8013975218181
• HS code: 85365080
• Compliance: IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, IEC/EN 61095

Reliable Switching for Modular Electrical Panels

Modular contactors such as the Lovato CN3210220 are used to remotely switch electrical loads from a control signal. This allows lighting, heating, ventilation and small motor circuits to be controlled automatically through timers, relays, switches, PLCs or building management systems.

The CN3210220 is designed for easy integration into modular electrical installations. Its 35 mm DIN rail mounting, compact two-module width and 4NO contact layout make it a practical choice for electrical contractors, panel builders and maintenance engineers working with low-voltage control systems.

Typical Applications

• Lighting control circuits in commercial and residential buildings.
• Heating, ventilation and HVAC control panels.
• Small motor switching and control systems.
• Building automation and energy management systems.
• Distribution boards and consumer unit installations.
• Industrial control panels and low-voltage switchgear assemblies.

Trusted by Electrical Contractors and Panel Builders

Lovato Electric modular contactors are widely used by electrical contractors, automation engineers and panel builders for compact, reliable and efficient switching in low-voltage electrical systems.
