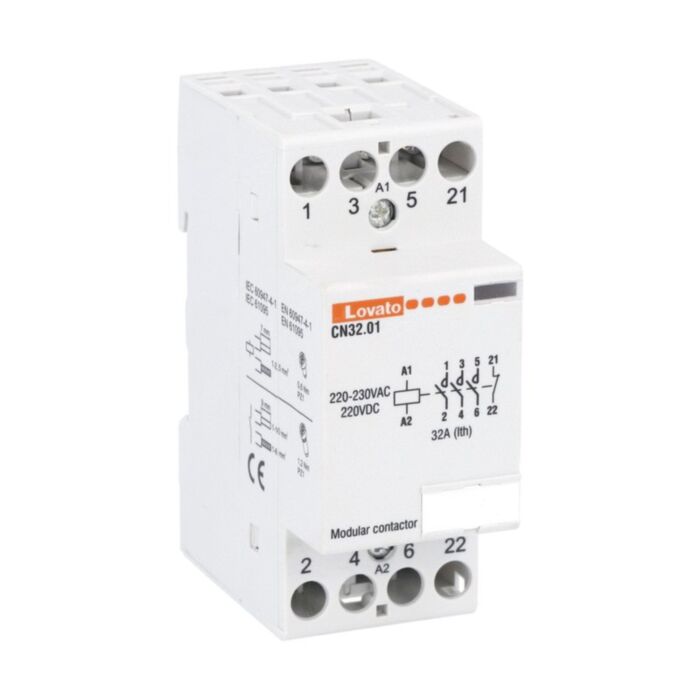

CN3201220 - MODULAR CONTACTOR CN32 230VAC
MPN: CN3201220
Special Price
£53.89
£44.91
Regular Price
£89.81
Why Choose the CN3201220?
Lovato’s CN3201220 modular contactor delivers reliable switching for building and industrial panels. With a 3NO+1NC contact arrangement and an IEC conventional free air thermal current of 32 A (AC1), it suits resistive loads. The rated supply voltage is 220 VAC/VDC, and the compact body is just 2 DIN modules wide, making integration straightforward. Choose CN3201220 for consistent performance and clean, predictable control.
Built for longevity and safety, this contactor offers 3,000,000 mechanical cycles and robust electrical insulation: Ui 440 V and Uimp 4 kV. It operates from -15 to 55 °C, with IP20 frontal protection and pollution degree 3. Compliance with IEC/EN 60947-1, 60947-4-1, 60947-5-1 and IEC/EN 61095 underpins quality. Max altitude is 2000 m, with a maximum terminal tightening torque of 1.2 Nm.
Key Benefits
- 32 A Ith (AC1) capacity for dependable switching of resistive loads.
- 3NO+1NC contacts support common control and interlocking schemes.
- Compact, 2 DIN modules wide to save valuable panel space.
- Strong insulation ratings: Ui 440 V and Uimp 4 kV.
- Long mechanical life of 3,000,000 cycles reduces maintenance.
- IP20 frontal protection and pollution degree 3 for safer operation.
- Wide operating temperature range from -15 to 55 °C.
Technical Specification
- Product type designation: CN
- Ith (IEC): 32 A
- Rated insulation voltage Ui (IEC/EN): 440 V
- Rated impulse withstand voltage Uimp: 4 kV
- Mechanical life: 3000000 cycles
- Operating temperature: -15 to 55 °C
- Storage temperature: -30 to 80 °C
- Max altitude: 2000 m
- Terminal tightening torque (max): 1.2 Nm
- Weight: 260 g
- IP degree (frontal): IP20
- Pollution degree: 3
What’s Included
- Lovato CN3201220 modular contactor (3NO+1NC, 32 A Ith)
- Manufacturer datasheet/installation notes
- Protective packaging for transit
Applications
- Lighting control and distribution for commercial and industrial sites
- Heating and other resistive AC1 load switching up to 32 A
- Building automation and facility control panels
- Control circuits requiring a 3NO+1NC contact arrangement
- General-purpose switching within IEC/EN 60947-compliant assemblies
Frequently Asked Questions
What is the contact configuration of the Lovato CN3201220?
It has a 3NO+1NC contact arrangement, providing three normally open and one normally closed contacts.
What supply voltage does the CN3201220 require?
The rated supply voltage is 220 VAC/VDC.
What is the current rating for AC1 loads?
The IEC conventional free air thermal current Ith is 32 A, suitable for AC1 resistive loads.
Which standards does this modular contactor comply with?
It conforms to IEC/EN 60947-1, 60947-4-1, 60947-5-1 and IEC/EN 61095.
What environmental and protection ratings are specified?
IP20 frontal protection, pollution degree 3, operating from -15 to 55 °C and up to 2000 m altitude.
Safety note: Installation and maintenance must be carried out by a qualified electrician. Isolate all power before work, observe IEC/EN standards, and do not exceed 1.2 Nm terminal torque. IP20 frontal protection requires suitable enclosure.
| Manufacturer Part Number | CN3201220 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975218167 |
