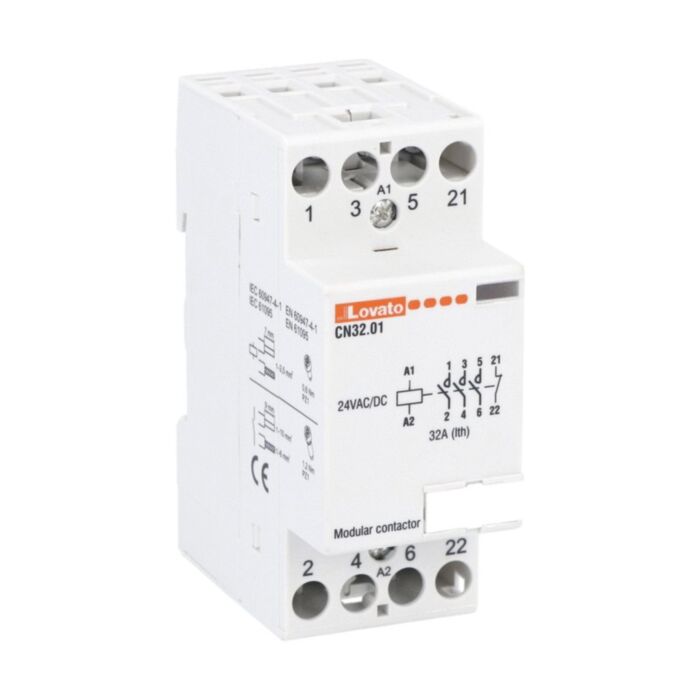

CN3201024 - MODULAR CONTACTOR CN32 24VAC/DC
MPN: CN3201024
Special Price
£53.89
£44.91
Regular Price
£89.81
Why Choose the CN3201024?
Lovato CN3201024 is a modular contactor for dependable AC-1 switching, combining a 32 A Ith rating with a 24VAC/DC coil and a 3NO+1NC contact arrangement. At just 2 DIN modules wide with IP20 frontal protection, it is designed for compact control panels. Rated Ui 440 V and Uimp 4 kV, it supports three- or four-pole applications with assured performance.
Built for longevity and compliance, this CN series contactor delivers up to 3,000,000 mechanical cycles and operates from -15 to 55 °C at altitudes to 2000 m. Conforming to IEC/EN 60947-1, -4-1, -5-1 and 61095, it offers reliable control in modular assemblies. Practical details include up to 1.2 Nm terminal tightening torque and a robust, 260 g build.
Key Benefits
- 32 A Ith capacity supports dependable AC-1 load switching.
- 24VAC/DC rated supply simplifies control wiring across systems.
- 3NO+1NC contacts enable flexible three- or four-pole configurations.
- Compact 2 DIN-module width saves valuable panel space.
- Mechanical life up to 3,000,000 cycles reduces downtime.
- Ui 440 V and 4 kV Uimp enhance insulation and surge resilience.
- IP20 frontal protection improves finger-safe operation in enclosures.
Technical Specification
- Product type designation: CN
- Ith (IEC): 32 A
- Rated insulation voltage Ui (IEC/EN): 440 V
- Rated impulse withstand voltage Uimp: 4 kV
- Mechanical life: 3000000 cycles
- Operating temperature: -15 to 55 °C
- Storage temperature: -30 to 80 °C
- Max altitude: 2000 m
- Terminal tightening torque (max): 1.2 Nm
- Weight: 260 g
- IP degree (frontal): IP20
- Pollution degree: 3
What’s Included
- Lovato CN3201024 modular contactor (3NO+1NC)
- Manufacturer datasheet and installation information
Applications
- General AC-1 duty switching up to 32 A Ith
- Control circuits using 24VAC/DC coil supply
- Modular panels requiring a 2 DIN-module contactor
- Systems needing 3NO+1NC contact configuration
Frequently Asked Questions
What is the coil voltage of the Lovato CN3201024?
The rated supply voltage is 24VAC/DC.
What contact arrangement does this contactor provide?
It has 3NO+1NC contacts.
What standards does the CN3201024 comply with?
It conforms to IEC/EN 60947-1, 60947-4-1, 60947-5-1 and IEC/EN 61095.
What is the operating temperature range?
The operating temperature is -15 to 55 °C; storage is -30 to 80 °C.
What is the mechanical endurance of this contactor?
It offers up to 3,000,000 mechanical cycles under specified conditions.
Safety note: Install and service only by qualified personnel. Isolate the supply before work and follow applicable IEC/EN standards and the manufacturer’s instructions.
| Manufacturer Part Number | CN3201024 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975218150 |
