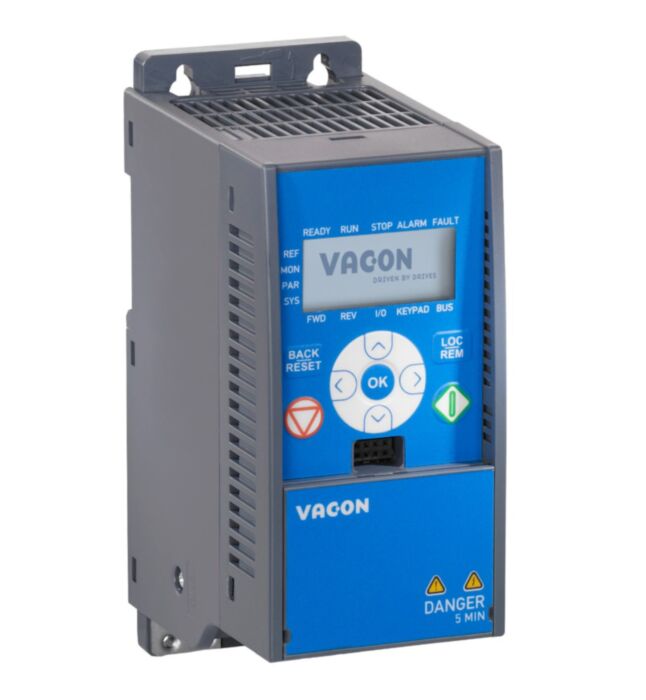

134X9584 Danfoss VACON0020-3L-0001-4+EMC2+QPES 0.37kw VACON 20 3PH VSD (+EMC2 + QPES)

Why Choose the Danfoss VACON0020-3L-0001-4 Frequency Converter?

The Danfoss VACON0020-3L-0001-4 is a compact and reliable AC variable frequency drive (VFD) designed for efficient speed control of three-phase motors in OEM machinery, automation systems and light industrial applications. As part of the Danfoss VACON 20 drive series, it combines compact dimensions with practical programming functionality, making it highly suitable for machine builders and control panel installations.

This drive provides dependable motor control while helping improve energy efficiency, process stability and machine performance. The VACON 20 series is designed for flexible integration into automated equipment, with built-in control functionality and support for common industrial communication requirements.

With a rated output power of 0.37 kW / 0.5 HP, a rated output current of approximately 1.3 A and a three-phase 380–480 V AC input, the VACON0020-3L-0001-4 is ideal for small motors used in conveyors, pumps, fans, packaging machinery and general OEM equipment. Its IP20 / UL Open Type enclosure is designed for installation inside protected electrical cabinets.

Key Advantages

• Compact variable frequency drive for OEM machinery and automation systems.
• 0.37 kW / 0.5 HP motor power rating for small industrial motors.
• Three-phase 380–480 V AC input compatible with industrial power systems.
• 1.3 A rated output current for precise low-power motor control.
• IP20 / UL Open Type enclosure for control cabinet mounting.
• Integrated EMC Class 4 filtering for industrial electrical environments.
• Compact MI01 frame size helps save panel space.

Key Features

• Danfoss VACON 20 frequency converter series.
• 0.37 kW / 0.5 HP rated motor power.
• 1.3 A rated output current.
• Three-phase 380–480 V AC input supply.
• IP20 / UL Open Type enclosure.
• EMC 4 Class filtering.
• No brake option configuration.
• 50 Hz frequency setting.
• MI01 compact frame size.
• Suitable for OEM and machine-builder applications.

Technical Specifications

• Manufacturer: Danfoss
• Series: VACON 20
• Model: VACON0020-3L-0001-4
• SKU: 0020-3L-0001-4
• Product type: AC variable frequency drive / frequency converter
• Rated motor power: 0.37 kW / 0.5 HP
• Rated output current: 1.3 A
• Input voltage: 380–480 V AC
• Input phases: 3-phase
• Output frequency: 0–320 Hz
• Network frequency: 45–66 Hz
• Protection rating: IP20 / UL Open Type
• EMC level: EMC Class 4
• Brake option: No brake
• Communication: Modbus RTU capability
• Frame size: MI01
• Dimensions (W × H × D): approx. 66 × 160 × 98 mm
• Net weight: approx. 0.63 kg
• EAN: 5710108174002

Compact Motor Control for OEM Machinery

Variable frequency drives such as the Danfoss VACON 20 regulate motor speed by adjusting output frequency and voltage. This helps machinery operate more efficiently while improving process control, reducing mechanical stress and supporting smoother motor operation.

The VACON 20 series is particularly suited to OEM equipment and compact machinery where space, flexibility and simple commissioning are important. Its practical control functions and compact construction make it easy to integrate into electrical panels and automated machine systems.

Typical Applications

• Small conveyors and material handling systems.
• Pumps and pumping equipment.
• Fans and ventilation systems.
• Packaging and labelling machinery.
• Food and beverage processing equipment.
• OEM machine control panels.
• Light industrial automation systems.
• General-purpose motor speed control.

Trusted by OEM Machine Builders Worldwide

Danfoss VACON 20 drives are widely used by OEMs, panel builders and automation engineers who need compact, adaptable and reliable motor control for machinery and light industrial applications.
