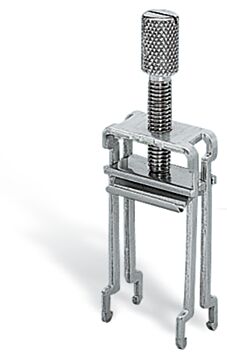

790-116 Wago Shield clamping saddle;19 mm wide;diameter of compatible conductor;silver-colored
MPN: 790-116
Alt. SKU: 790116
Special Price
£6.79
£5.66
Regular Price
£8.50
790-116 Wago Shield clamping saddle;19 mm wide;diameter of compatible conductor;silver-colored is available to buy in increments of 10
Why Choose the WAGO 790-116 Shield Clamping Saddle?
The WAGO 790-116 is a heavy-duty shield clamping saddle designed for reliable grounding of cable shielding in industrial automation systems. It forms part of the WAGO 790 series shield connection system, enabling installers to quickly connect cable shields to grounding busbars or mounting plates to suppress electromagnetic interference.
Proper shield grounding is essential in automation environments where communication networks, sensors and control electronics must operate without electrical noise. The 790-116 provides a stable mechanical and electrical connection between the cable shield and the protective earth system, improving signal integrity and system reliability.
The clamp uses a practical screw clamping mechanism to hold the exposed cable shield securely against the grounding surface, ensuring dependable electrical contact in demanding industrial installations. :contentReference
Key Advantages
- Provides reliable shield grounding for screened cables.
- Reduces electromagnetic interference in control systems.
- Suitable for larger cable shields with 7 mm to 16 mm diameter.
- Simple screw clamping installation.
- Durable construction for industrial environments.
- Compatible with WAGO shield connection carriers and busbars.
Key Features
- Shield clamping saddle for industrial cable grounding.
- Compatible with WAGO 790 shield connection system.
- 19 mm width compact accessory.
- Supports cable shield diameters 7 mm to 16 mm.
- Secure screw clamp mechanism.
- Designed for installation on grounding busbars or mounting plates.
- Ensures stable electrical contact for shielding continuity.
Technical Specifications
- Manufacturer: WAGO
- Model: 790-116
- Product type: Shield clamping saddle
- Series: WAGO 790 shield connection system
- Width: 19 mm
- Compatible cable shield diameter: 7 mm to 16 mm
- Mounting: Shield busbar or mounting plate
- Application: Shield grounding for screened industrial cables
Reliable Shield Grounding for Industrial Automation
Shield grounding plays an essential role in protecting industrial control systems from electromagnetic interference. When shielded cables are correctly grounded close to the cabinet entry point, unwanted electrical noise is diverted away from sensitive control circuits and communication networks.
Using shield clamps such as the WAGO 790-116 ensures consistent electrical contact between cable shielding and the grounding system, improving system stability and maintaining reliable signal transmission in complex automation installations.
Typical Applications
- Industrial control cabinets.
- PLC and automation systems.
- Shielded data and communication cables.
- Machine control installations.
- Instrumentation and process automation systems.
Frequently Asked Questions
What is the WAGO 790-116 used for?
The device clamps and grounds the shielding of industrial cables to reduce electromagnetic interference in automation systems.
What cable sizes are supported?
The shield clamping saddle is designed for cable shield diameters between 7 mm and 16 mm. :contentReference
Where is the shield clamp installed?
The clamp is mounted on a shield connection busbar or mounting plate inside control cabinets to connect cable shielding to protective earth.
Why is cable shielding grounding important?
Grounding the shield helps prevent electromagnetic interference from affecting sensitive control signals and communication systems.
Where are shield clamping saddles typically used?
They are widely used in industrial automation, control panels and machine installations that utilise shielded signal or communication cables.
Trusted by Automation Engineers
WAGO shield connection accessories are trusted worldwide by control engineers and panel builders to ensure reliable shielding and stable signal transmission in industrial systems.
| Manufacturer Part Number | 790-116 |
|---|---|
| Packed Quantity | 10 |
| Height | 191mm |
| Width | 130mm |
| Depth | 96mm |
| HS Code | 85369010 |
| Country of Manufacture | Germany |
| Manufacturer | Wago |
| Alternative Product SKU | 790116 |
| Barcode | 4017332611756 |
