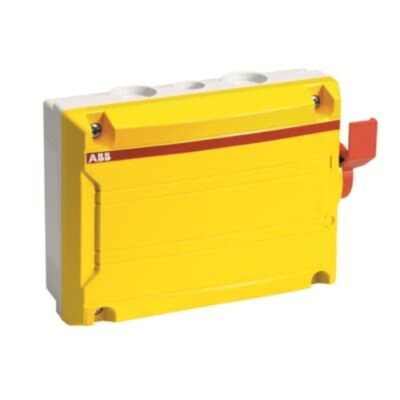

BWS625YTPN Safety switch
MPN: 2CMA142428R1000
Alt. SKU: BWS625YTPN
Special Price
£73.93
£61.61
Regular Price
£113.75
Why Choose the BWS625YTPN [2CMA142428R1000]
Safety switch, 6-p. 415V AC23 25A, 11kW. Mounted auxiliary contact: 1NO0NC. Plastic enclosure. IP65. RedYellow Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches are made of rigid polycarbonate. The enclosure is UV protected, and protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The enclosure for 6 pole switches is available in different colors, grey and yellow. The cable entries are of none threaded knock out types with holes for 2 parallell cables, both from top and bottom. Membrane grommets and locking nuts are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch includes neutral and PE terminal. The terminals are easily accessible for easy installation.
Technical Specification
- Function: 6-pole safety switch with mounted auxiliary contact (1NO, 0NC).
- Rated Operational Voltage: Up to 690 V AC.
- Rated Operational Current AC-23A: 25 A at 380-415 V; 25 A at 500 V; 16 A at 690 V.
- Rated Operational Power AC-23A: 11 kW at 380-415 V; 15 kW at 500 V; 11 kW at 690 V.
- Insulation Voltage (Ui): 690 V (IEC/EN 60664-1).
- Impulse Withstand Voltage (Uimp): 8 kV.
- Degree of Protection: IP65 (protection against low pressure water jets).
- Terminals: Screw clamp for 0.75 to 10 mm² cables, including PE terminal.
- Mechanical Data: Polycarbonate enclosure, UV protected, impact resistance IK08, side-operated red handle with padlock facility.
- Cable Entry: Knock-out type, top and bottom entry with two parallel outlets per side.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the safety switch?
The rated operational voltage is up to 690 V AC.
What is the maximum rated operational current for this switch?
The maximum rated operational current is 25 A at 380-415 V and 500 V, and 16 A at 690 V.
What type of enclosure does the switch have?
The switch has a polycarbonate enclosure that is UV protected and rated IP65.
What is the cable capacity for the terminals?
The terminals can accommodate cables from 0.75 to 10 mm².
Can the handle be locked?
Yes, the handle is padlockable and designed for one padlock.
What is the degree of protection for this switch?
The degree of protection is IP65, providing protection against low pressure water jets.
Are there any specific standards or approvals for this product?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CMA142428R1000 |
|---|---|
| Packed Quantity | 1 |
| Height | 130mm |
| Width | 190mm |
| Depth | 65mm |
| Amperage | 25A |
| Degree of protection (IP) | IP65 |
| KW Rating | 11kW |
| Number of Poles | 6 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | BWS625YTPN |
| Barcode | 7392696424288 |
| Product Image | For Illustration Purposes Only |
