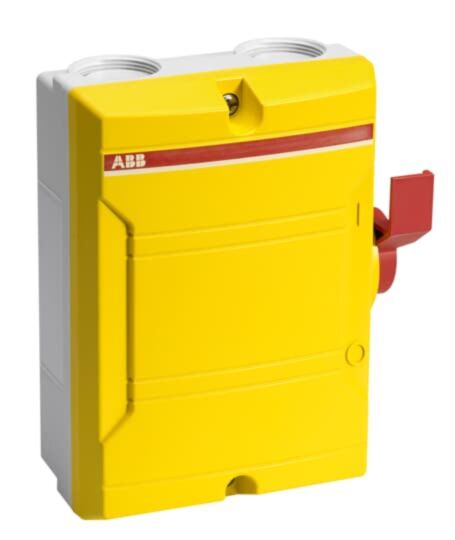

BWS325YTPN Safety switch
MPN: 2CMA142426R1000
Alt. SKU: BWS325YTPN
Special Price
£47.42
£39.52
Regular Price
£72.96
Why Choose the BWS325YTPN [2CMA142426R1000]
Safety switch, 3-p. 415V AC23 25A, 11kW. Mounted auxiliary contact: 1NO0NC. Plastic enclosure. IP65. RedYellow Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches is made of rigid polycarbonate. The enclosure is UV protected, and protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The enclosure is available in different colors, grey, yellow and white. The cable entries are threaded and have knock out holes for 2 parallell cables, both from top and bottom. Membrane grommets are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal. The terminals are easily accessible for easy installation.
Technical Specification
- Function: 3-pole safety switch with 1 NO mounted auxiliary contact.
- Rated Operational Voltage: Up to 690 V AC.
- Current Ratings: AC-23A: 25 A (380-415 V), AC-22A: 40 A (380-415 V).
- Rated Operational Power: 11 kW at 380-415 V AC-23A.
- Insulation and Impulse Ratings: Rated insulation voltage 690 V, impulse withstand voltage 8 kV.
- Degree of Protection: IP65 (enclosure rated for outdoor use and water jets).
- Terminals: Screw clamp terminals for 0.75 to 10 mm² cable cross-section, fixed neutral and PE terminals.
- Enclosure Material: UV-protected rigid polycarbonate, impact resistance IK08.
- Handle Type: Padlockable, red side-operated handle with interlocked cover.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the safety switch?
The rated operational voltage is up to 690 V AC.
What is the current rating for AC-23A and AC-22A?
The current rating for AC-23A is 25 A (380-415 V) and for AC-22A is 40 A (380-415 V).
What is the cable capacity for the terminals?
The terminals accommodate cable cross-sections from 0.75 to 10 mm².
Is the enclosure suitable for outdoor use?
Yes, the enclosure is rated IP65, making it suitable for outdoor use and protection against water jets.
Can the handle be locked?
Yes, the handle is padlockable and designed for one padlock.
What materials are used for the enclosure?
The enclosure is made of UV-protected rigid polycarbonate with impact resistance rated at IK08.
What should I refer to for standards and approvals?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CMA142426R1000 |
|---|---|
| Packed Quantity | 1 |
| Height | 168mm |
| Width | 138mm |
| Depth | 68mm |
| Amperage | 25A |
| Degree of protection (IP) | IP65 |
| KW Rating | 11kW |
| Number of Poles | 3 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | BWS325YTPN |
| Barcode | 7392696424264 |
