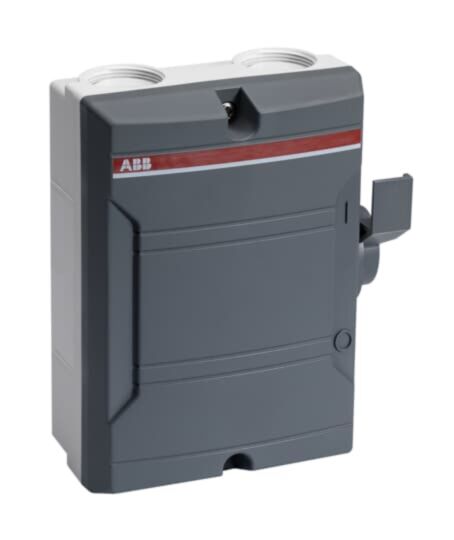

BWS325TPN Safety switch
MPN: 2CMA142420R1000
Alt. SKU: BWS325TPN
Special Price
£52.88
£44.07
Regular Price
£81.36
Why Choose the BWS325TPN [2CMA142420R1000]
Safety switch, 3-p. 415V AC23 25A, 11kW. Mounted auxiliary contact: 1NO0NC. Plastic enclosure. IP65. Grey Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches is made of rigid polycarbonate. The enclosure is UV protected, and protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The enclosure is available in different colors, grey, yellow and white. The cable entries are threaded and have knock out holes for 2 parallell cables, both from top and bottom. Membrane grommets are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal. The terminals are easily accessible for easy installation.
Technical Specification
- Function: 3-pole safety switch with 1 NO auxiliary contact.
- Rated Operational Voltage: Up to 690 V AC.
- Rated Operational Current (AC-23A): 25 A @ 380-415 V.
- Rated Operational Power (AC-23A): 11 kW @ 380-415 V.
- Insulation Voltage (Ui): 690 V per IEC/EN 60664-1.
- Impulse Withstand Voltage (Uimp): 8 kV.
- Degree of Protection: IP65, suitable for indoor and outdoor use.
- Terminal Type and Size: Screw clamp terminals for 0.75–10 mm² cables, fixed neutral and PE terminals.
- Mechanical Features: Side-operated, grey padlockable handle; enclosure made of UV-protected plastic with IK08 impact resistance.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current of the safety switch?
The rated operational current is 25 A at 380-415 V.
What type of enclosure does the safety switch have?
The enclosure is made of rigid polycarbonate, UV protected, and has an IP65 rating.
What is the cable capacity for the terminals?
The terminals accommodate cables from 0.75 to 10 mm².
Can the switch be used outdoors?
Yes, it is suitable for both indoor and outdoor use due to its IP65 rating.
Is the handle of the safety switch padlockable?
Yes, the handle is padlockable and designed for one padlock.
What is the degree of protection for this switch?
The switch has a degree of protection rated at IP65.
What standards does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CMA142420R1000 |
|---|---|
| Packed Quantity | 1 |
| Height | 168mm |
| Width | 138mm |
| Depth | 68mm |
| Amperage | 25A |
| Degree of protection (IP) | IP65 |
| KW Rating | 11kW |
| Number of Poles | 3 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | BWS325TPN |
| Barcode | 7392696424202 |
