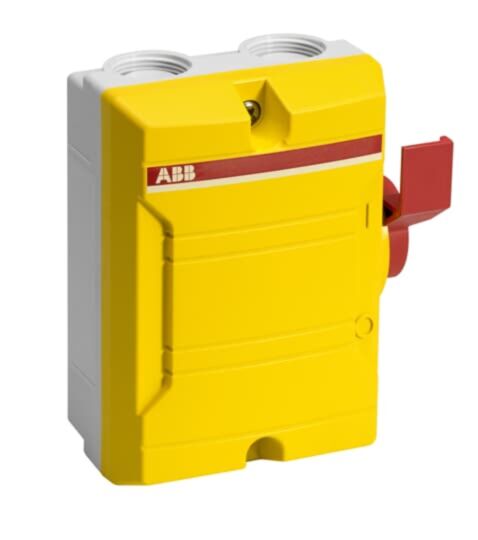

BWS316YTPN Safety switch
MPN: 2CMA142423R1000
Alt. SKU: BWS316YTPN
Special Price
£47.42
£39.52
Regular Price
£72.96
Why Choose the BWS316YTPN [2CMA142423R1000]
Safety switch, 3-p. 415V AC23 16A, 7.5kW. Mounted auxiliary contact: 1NO0NC. Plastic enclosure. IP65. RedYellow Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches is made of rigid polycarbonate. The enclosure is UV protected, and protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The enclosure is available in different colors, grey, yellow and white. The cable entries are threaded and have knock out holes for 2 parallell cables, both from top and bottom. Membrane grommets are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal. The terminals are easily accessible for easy installation.
Technical Specification
- Function: Safety switch, 3-pole, side-operated handle with interlocked cover and padlock facility.
- Rated Operational Current (AC-23A): 16 A at 380-415 V, 16 A at 500 V, 10 A at 690 V.
- Rated Operational Power (AC-23A): 7.5 kW across 380-690 V.
- Contact Configuration: 1 normally open (NO) auxiliary contact, no normally closed (NC).
- Insulation and Impulse Ratings: Rated insulation voltage 690 V; rated impulse withstand voltage 8 kV.
- Degree of Protection: IP65 (dust-tight and protected against low pressure water jets).
- Terminals: Screw clamp terminals for conductors 0.75 to 10 mm², including fixed neutral and PE terminals.
- Mechanical and Durability: Polycarbonate enclosure, UV protected, impact resistance rating IK08, suitable for indoor and outdoor use.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current of the safety switch?
The rated operational current is 16 A at 380-415 V, 16 A at 500 V, and 10 A at 690 V.
What is the degree of protection for this switch?
The switch has a degree of protection of IP65, making it dust-tight and protected against low pressure water jets.
What type of enclosure does the switch have?
The enclosure is made of rigid polycarbonate, UV protected, and suitable for both indoor and outdoor use.
What is the cable capacity for the terminals?
The terminals accept conductors from 0.75 to 10 mm².
Can the handle be locked?
Yes, the handle is padlockable and designed for one padlock.
What is the contact configuration of the switch?
The switch has 1 normally open (NO) auxiliary contact and no normally closed (NC) contacts.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CMA142423R1000 |
|---|---|
| Packed Quantity | 1 |
| Height | 130mm |
| Width | 111mm |
| Depth | 60mm |
| Amperage | 16A |
| Degree of protection (IP) | IP65 |
| KW Rating | 7.5kW |
| Number of Poles | 3 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | BWS316YTPN |
| Barcode | 7392696424233 |
| Product Image | For Illustration Purposes Only |
