BWS316TPN Safety switch
MPN: 2CMA142417R1000
Alt. SKU: BWS316TPN
Special Price
£47.98
£39.98
Regular Price
£73.81
Why Choose the BWS316TPN [2CMA142417R1000]
Safety switch, 3-p. 415V AC23 16A, 7.5kW. Mounted auxiliary contact: 1NO0NC. Plastic enclosure. IP65. Grey Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches is made of rigid polycarbonate. The enclosure is UV protected, and protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The enclosure is available in different colors, grey, yellow and white. The cable entries are threaded and have knock out holes for 2 parallell cables, both from top and bottom. Membrane grommets are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal. The terminals are easily accessible for easy installation.
Technical Specification
- Function: 3-pole safety switch with side-operated handle and interlocked cover.
- Voltage Rating: Rated operational voltage up to 690 V AC.
- Current Rating: AC-23A: 16 A at 380-415 V, 16 A at 500 V, 10 A at 690 V.
- Power Rating: 7.5 kW at 380-690 V AC (AC-23A).
- Contact Configuration: 1 Normally Open (NO) auxiliary contact, no Normally Closed (NC) contacts.
- Insulation & Impulse Withstand: Rated insulation voltage 690 V, impulse withstand voltage 8 kV.
- Protection Rating: IP65 enclosure, suitable for indoor and outdoor use.
- Terminal Type & Size: Screw clamp terminals for 0.75 to 10 mm² cables, fixed neutral and PE terminals.
- Mechanical Durability: Rigid polycarbonate enclosure with IK08 impact resistance, grey side-operated handle.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the voltage and current rating of the safety switch?
The safety switch has a rated operational voltage of up to 690 V AC and a current rating of 16 A at 380-415 V, 16 A at 500 V, and 10 A at 690 V.
What is the power rating of the switch?
The power rating is 7.5 kW at 380-690 V AC (AC-23A).
What type of enclosure does the switch have?
The switch features a rigid polycarbonate enclosure that is IP65 rated, making it suitable for both indoor and outdoor use.
What is the cable capacity for the terminals?
The terminals are screw clamp type and can accommodate cables from 0.75 to 10 mm².
Can the switch be padlocked?
Yes, the handle is padlockable and designed for one padlock.
What is the contact configuration of the switch?
The switch has 1 Normally Open (NO) auxiliary contact and no Normally Closed (NC) contacts.
What standards and approvals does the switch conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CMA142417R1000 |
|---|---|
| Packed Quantity | 1 |
| Height | 130mm |
| Width | 111mm |
| Depth | 60mm |
| Amperage | 16A |
| Degree of protection (IP) | IP65 |
| KW Rating | 7.5kW |
| Number of Poles | 3 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | BWS316TPN |
| Barcode | 7392696424172 |

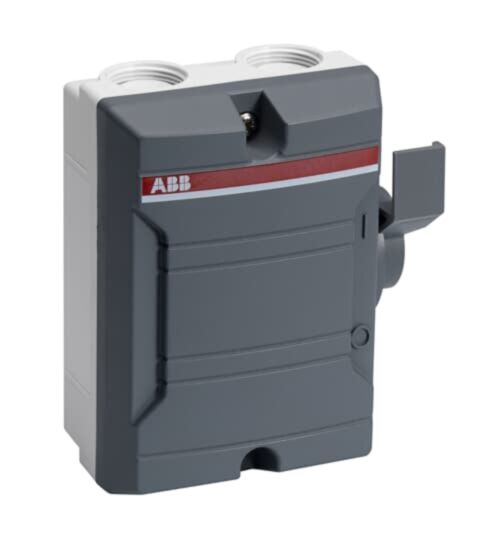

| Product Image | For Illustration Purposes Only |
