BWS316FTPN Safety switch
MPN: 2CMA142440R1000
Alt. SKU: BWS316FTPN
£62.50
£52.08
Why Choose the BWS316FTPN [2CMA142440R1000]

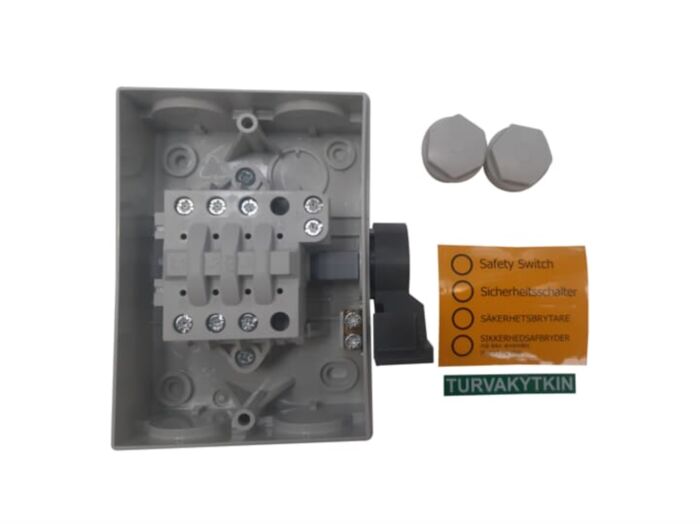

Safety switch, 3-p. 415V AC23 16A, 7.5kW. Plastic enclosure. IP65. Grey Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches is made of rigid polycarbonate. The enclosure is UV protected, and protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The enclosure is available in different colors, grey, yellow and white. The cable entries are threaded and have knock out holes for 2 parallell cables, both from top and bottom. Membrane grommets are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal. The terminals are easily accessible for easy installation.
Technical Specification
- Function: 3-pole safety switch with interlocked cover and side-operated handle.
- Rated Operational Voltage: Up to 690 V AC.
- Rated Operational Current AC-23A: 16 A at 380–415 V, 16 A at 500 V, 10 A at 690 V.
- Rated Operational Power AC-23A: 7.5 kW at 380–690 V.
- Contact Configuration: 3 poles with fixed neutral terminal.
- Insulation Voltage (Ui): 690 V according to IEC/EN 60664-1.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Degree of Protection: IP65 (dust tight and protected against water jets).
- Terminal Type and Size Range: Screw clamp terminals for 0.75 to 10 mm² cables, including PE terminal.
- Mechanical Durability: Plastic enclosure with IK08 impact resistance, UV protected, suitable for indoor/outdoor use.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current of the safety switch?
The rated operational current is 16 A at 380–415 V, 16 A at 500 V, and 10 A at 690 V.
What is the degree of protection for this safety switch?
The safety switch has a degree of protection of IP65, making it dust tight and protected against low pressure water jets.
What types of cables can be used with this switch?
The switch accommodates screw clamp terminals for cable sizes ranging from 0.75 to 10 mm², including a PE terminal.
Is the enclosure suitable for outdoor use?
Yes, the enclosure is UV protected and designed for both indoor and outdoor use.
Can the handle be locked?
Yes, the handle is padlockable and designed for use with one padlock.
What is the mechanical durability rating of the enclosure?
The plastic enclosure has an IK08 impact resistance rating.
What standards does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CMA142440R1000 |
|---|---|
| Packed Quantity | 1 |
| Height | 130mm |
| Width | 111mm |
| Depth | 60mm |
| Amperage | 16A |
| Degree of protection (IP) | IP65 |
| KW Rating | 7.5kW |
| Number of Poles | 3 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | BWS316FTPN |
| Barcode | 7392696424400 |
