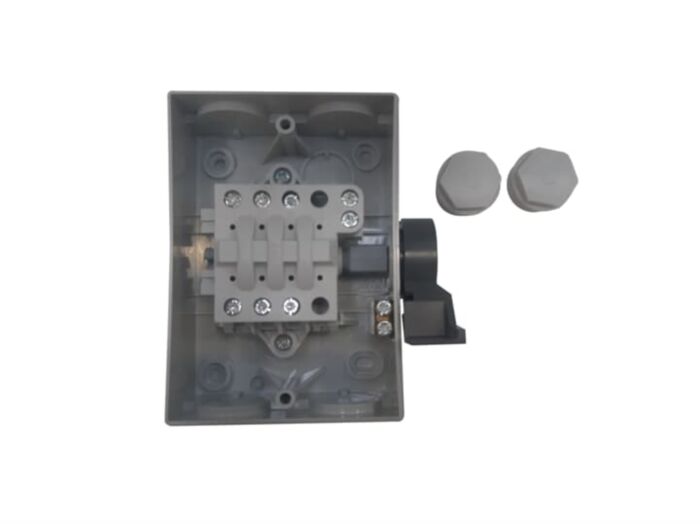

BW325WTPN Enclosed Switch Disconnector
MPN: 2CMA142402R1000
Alt. SKU: BW325WTPN
Special Price
£32.51
£27.09
Regular Price
£50.02
Why Choose the BW325WTPN [2CMA142402R1000]
Encl. Switch Disconnector, 3-p. 415V AC23 16A, 7.5kW. Plastic enclosure. IP65. Grey Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches is made of rigid polycarbonate. The enclosure is UV protected, and protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The enclosure is available in different colors, grey, yellow and white. The cable entries are threaded and have knock out holes for 2 parallell cables, both from top and bottom. Membrane grommets are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal. The terminals are easily accessible for easy installation.
Technical Specification
- Function: 3-pole enclosed switch disconnector, side-operated handle with interlocked cover.
- Rated Operational Voltage: Up to 690 V AC.
- Rated Operational Current AC-23A: 16 A at 380...415 V, 16 A at 500 V, 10 A at 690 V.
- Rated Operational Power AC-23A: 7.5 kW across 380...690 V.
- Insulation Voltage: Rated insulation voltage Ui 690 V, impulse withstand voltage Uimp 8 kV.
- Degree of Protection: IP65 (dust tight and protected against low-pressure water jets).
- Terminal Type and Capacity: Screw clamps for 0.75 to 10 mm², fixed neutral and PE terminals included.
- Mechanical Durability: Enclosure made of UV-protected polycarbonate, impact resistance rating IK08.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current of the switch disconnector?
The rated operational current is 16 A at 380...415 V, 16 A at 500 V, and 10 A at 690 V.
What is the degree of protection for this enclosure?
The enclosure has a degree of protection rated at IP65, making it dust tight and protected against low-pressure water jets.
What is the cable capacity for the terminals?
The terminals can accommodate cable sizes from 0.75 to 10 mm².
Can the switch be used outdoors?
Yes, the enclosure is UV protected and suitable for both outdoor and indoor use.
Is the handle padlockable?
Yes, the handle is padlockable and designed for one padlock.
What type of system is this switch designed for?
The switch is designed for a 5 wire system, including a fixed neutral terminal and PE terminal.
What should I refer to for standards and approvals?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CMA142402R1000 |
|---|---|
| Packed Quantity | 1 |
| Height | 130mm |
| Width | 111mm |
| Depth | 60mm |
| Amperage | 16A |
| Degree of protection (IP) | IP65 |
| KW Rating | 7.5kW |
| Number of Poles | 3 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | BW325WTPN |
| Barcode | 7392696424028 |
