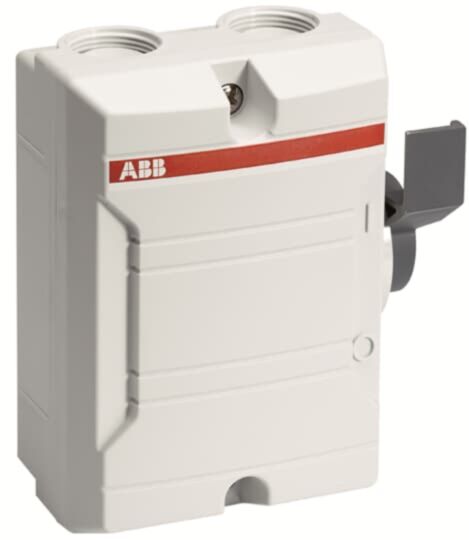

BW225WDP Enclosed Switch Disconnector
MPN: 2CMA142401R1000
Alt. SKU: BW225WDP
Special Price
£27.82
£23.18
Regular Price
£42.79
Why Choose the BW225WDP [2CMA142401R1000]
Encl. Switch Disconnector, 2-p. 230V AC23 16A, 2.2kW. Plastic enclosure. IP65. Grey Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches is made of rigid polycarbonate. The enclosure is UV protected, and protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The enclosure is available in different colors, grey, yellow and white. The cable entries are threaded and have knock out holes for 2 parallell cables, both from top and bottom. Membrane grommets are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch is made for 4 wire system, and have a fixed neutral terminal and PE terminal. The terminals are easily accessible for easy installation.
Technical Specification
- Function: 2-pole enclosed switch disconnector with side-operated handle.
- Rated Operational Voltage: Up to 690 V AC.
- Rated Current: 25 A (AC-22A and AC-23A at 230–500 V), 16 A at 690 V.
- Power Rating: 3.7 kW at 230 V AC-23A.
- Contact Configuration: 2 poles, fixed neutral terminal included.
- Insulation and Impulse Rating: Rated insulation voltage 690 V; impulse withstand voltage 8 kV.
- Degree of Protection: IP65 (dust-tight, protected against low pressure water jets).
- Enclosure Material: UV-protected rigid polycarbonate, impact resistance IK08.
- Terminal Type and Size: Screw clamp terminals for 0.75 to 10 mm² conductors, including PE terminal.
- Mechanical Features: Padlockable handle (1 padlock), interlocked cover, suitable for indoor/outdoor use.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the switch disconnector?
The rated operational voltage is up to 690 V AC.
What is the maximum current rating for this switch disconnector?
The maximum current rating is 25 A (AC-22A and AC-23A at 230–500 V), and 16 A at 690 V.
What type of enclosure material is used?
The enclosure is made of UV-protected rigid polycarbonate.
What is the degree of protection for this switch disconnector?
The degree of protection is IP65, making it dust-tight and protected against low pressure water jets.
What is the cable capacity for the terminals?
The terminals accommodate conductors from 0.75 to 10 mm².
Can the handle be locked?
Yes, the handle is padlockable and designed for one padlock.
Is the switch suitable for outdoor use?
Yes, the switch is suitable for both indoor and outdoor use due to its IP65 rating.
| Manufacturer Part Number | 2CMA142401R1000 |
|---|---|
| Packed Quantity | 1 |
| Height | 130mm |
| Width | 111mm |
| Depth | 60mm |
| Amperage | 25A |
| Degree of protection (IP) | IP65 |
| KW Rating | 3.7kW |
| Number of Poles | 2 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | BW225WDP |
| Barcode | 7392696424011 |
