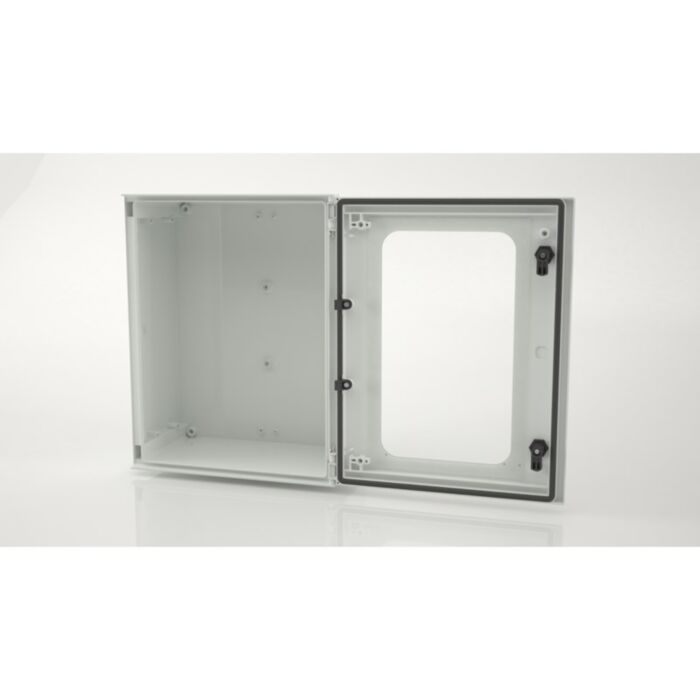

BRES-54P Safybox GRP Electrical Enclosure IP66 with a Glazed Door 500Hx400Wx200D
MPN: BRES-54P
Alt. SKU: BRES54P
Special Price
£179.26
£149.38
Regular Price
£286.81
Why Choose the Safybox BRES-54P Industrial Enclosure?
The Safybox BRES-54P is a high performance industrial enclosure featuring a transparent inspection door for safe visual monitoring of internal components. Manufactured from robust glass reinforced polyester (GRP/SMC), it provides excellent resistance to corrosion, UV exposure and harsh industrial environments while maintaining a non conductive, double insulated enclosure body for enhanced electrical safety.
With IP66 ingress protection and IK10 impact resistance, the BRES-54P protects internal equipment from dust, powerful water jets and mechanical impact. The clear viewing panel allows operators to check breakers, meters and control devices without opening the enclosure, improving operational efficiency and site safety.
Key Features
- Transparent inspection door for visual access to internal components.
- IP66 rated protection against dust and powerful water jets.
- IK10 impact resistance for maximum mechanical durability.
- Manufactured from glass reinforced polyester (GRP/SMC) with strong UV and corrosion resistance.
- Non conductive, double insulated housing for enhanced electrical safety.
- Hinged, reversible door with secure locking mechanism.
- Wall mounted design suitable for indoor and outdoor industrial applications.
Technical Specifications
- Manufacturer: Safybox
- Model: BRES-54P
- Product type: Industrial GRP enclosure with transparent door
- Material (body): Glass reinforced polyester (GRP/SMC)
- Door: Hinged with integrated transparent inspection panel
- Colour: Grey (RAL 7035)
- Ingress protection: IP66 (IEC 60529)
- Impact rating: IK10 (IEC 62262)
- Mounting: Wall mounted
- Insulation: Double insulated, non conductive enclosure body
- Operating temperature range: Approx. −50°C to +80°C
Typical Applications
- Industrial automation and control panels.
- Power distribution enclosures.
- Monitoring and metering installations.
- Outdoor utility and infrastructure projects.
- Harsh environments requiring corrosion resistant housing.
Frequently Asked Questions
What protection ratings does the BRES-54P enclosure have?
The BRES-54P is rated IP66 for ingress protection and IK10 for impact resistance, ensuring protection against dust, water jets and mechanical impact.
Is this enclosure suitable for outdoor use?
Yes. The GRP construction offers excellent resistance to UV radiation and corrosion, making it suitable for demanding outdoor industrial environments.
What is the benefit of the transparent door?
The transparent inspection panel allows operators to visually monitor internal components without opening the enclosure, improving safety and reducing maintenance time.
Is the enclosure electrically insulated?
Yes. The non conductive, double insulated housing enhances electrical safety in industrial installations.
Can the door opening direction be changed?
Yes. The hinged door is reversible and can be configured for left or right hand opening depending on site requirements.
| Manufacturer Part Number | BRES-54P |
|---|---|
| Manufacturer | Safybox |
| Material | GRP-Polycarbonate |
| Degree of protection (IP) | IP66 |
| Depth | 200mm |
| Width | 400mm |
| Height | 500mm |
| Alternative Product SKU | BRES54P |
Write Your Own Review
BRES range of monoblock cabinets for electricity manufactured in fiberglass reinforced polyester (GRP enclosure).
Characteristics of the SAFYBOX-BRES electrical box:
Monoblock body with door, made of light grey fiberglass reinforced polyester Ral 7035 (GRP / SMC)
Hinged door with key lock. Version of the cabinet with door with transparent window available (UV stabilized).
The Bres enclosures are rated at IP66 tightness and impact resistance IK10, perfect for outdoor applications.
There are a wide range of accessories including:
- Modular chassis,
- Plinths
- Viewing windows
- Locking systems
- Cable glands
- Wall brackets
- air vents and much more
Innovation and added value:
The Bres range comes in 8 different sizes to suit most applications, if you cannot see the size you require please get in touch as there are other ranges from Uriarte Safybox which include the CA, DIN and ART which may have the size you require
The Bres range can be Individual installed or connected to each other to make electrical panels thanks to coupling flanges (modularity).
Flexibility: Easy to perform machining for cable input / output and customize the electrical enclosure to your needs. In our factories we have machining robots that allow us to do this work for you quickly, clean and economically.
Double insulation: Through the use of double insulated holes for wall mounting, the electrical equipment or switchgear assembly inside is completely isolated from the outside in order to avoid accidents and certify its electrical safety and insulation.
Benefits of the materials:
The reinforced thermoset polyester with which they are manufactured is the best insulating material available in the market. Ideal even in the most aggressive environments.
Self-extinguishing material. If there is a fire, the flame will not spread. Polyester is a thermostable and will not deform if there is overheating or fire.
Non-conductive material of electricity: Unlike metal boxes there is no danger in handling and we are not at risk of electrical shock (See accident video by download in the security section)
Easy maintenance They are ideal for outdoor use since they perfectly withstand the effects of weather in aggressive environments thanks to their material. It is non-hygroscopic and is protected against UV light, which allows an optimum operation of + 100º to -50º.
Total absence of toxic components and heavy metals fulfilling perfectly with the European Regulation of dangerous substances.
Customisation Options
Uriarte Safybox offer a wide range of customisation options on their range of enclosures.
Laser marking – Uriarte offer a laser marking service so you can have your company logo added the front of your enclosure or get rid of the mimic on the front of your enclosure and have the information lasered straight on to the front of the Bres enclosure
Hole cutting – Uriarte Safbox offer a hole cutting service, you can get you enclosures ready to install the buttons, HMI’s or indicators, saving you time and ensuring a quality finish
Turnkey solutions – Uriarte also offer a full turnkey solution, providing you with a fully equipped GRP enclosure
