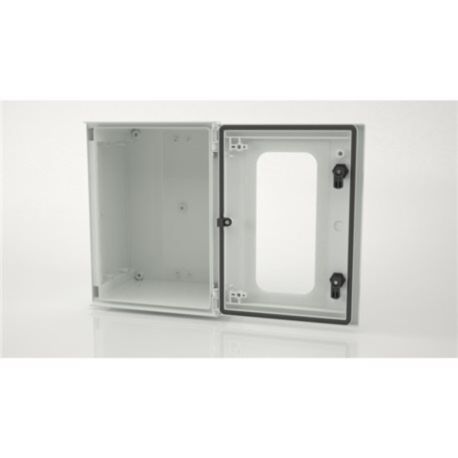

BRES-43P Safybox GRP Electrical Enclosure IP66 with a Glazed Door 400Hx300Wx200D
MPN: BRES-43P
Alt. SKU: BRES43P
Special Price
£121.14
£100.95
Regular Price
£193.81
Why Choose the Safybox BRES-43P GRP Enclosure with Transparent Door?
The Safybox BRES-43P is a compact yet robust industrial enclosure featuring a clear inspection window in the door. Built from high-strength glass-reinforced polyester (GRP/SMC), it combines excellent resistance to corrosion, UV exposure and harsh environmental conditions with non-conductive, double-insulated construction for enhanced electrical safety.
With IP66 ingress protection and IK10 impact resistance, the BRES-43P allows you to visually monitor internal status indicators such as meters, breakers or control lights without opening the enclosure. This makes it ideal for control panels and distribution points where quick visual access improves efficiency and safety.
Key Features
- Transparent inspection panel integrated into the hinged door.
- IP66 rated – fully dust tight and resistant to powerful water jets.
- IK10 impact protection for strong mechanical durability.
- Constructed from non-conductive GRP for enhanced electrical safety.
- Excellent UV and corrosion resistance for outdoor use.
- Hinged, reversible door with secure locking mechanism.
- Double-insulated enclosure body.
Technical Specifications
- Manufacturer: Safybox
- Model: BRES-43P
- Product type: Industrial GRP enclosure with transparent door
- Material (body): Glass-reinforced polyester (GRP/SMC)
- Door: Hinged with transparent inspection panel
- Colour: Grey (RAL 7035)
- Ingress protection: IP66 (IEC 60529)
- Impact rating: IK10 (IEC 62262)
- Mounting: Wall mounted
- Insulation: Double-insulated, non-conductive housing
- Operating temperature range: Approx. −50°C to +80°C
Typical Applications
- Control panels and distribution boards requiring visible status.
- Industrial automation enclosures with monitoring equipment.
- Metering systems for power and control circuits.
- Renewable energy junction and monitoring points.
- Outdoor infrastructure and utility installations.
Frequently Asked Questions
What is the benefit of the transparent door?
The transparent inspection panel allows quick visual monitoring of internal components without opening the enclosure, improving safety and operational efficiency.
What IP rating does the BRES-43P have?
The BRES-43P is rated IP66, meaning it is fully dust tight and protected against powerful water jets.
Is the enclosure suitable for outdoor use?
Yes. Its GRP construction offers strong UV and corrosion resistance for outdoor industrial environments.
Is the enclosure electrically insulated?
Yes. The housing is made from non-conductive glass-reinforced polyester and features double insulation for enhanced safety.
Can the door opening direction be changed?
Yes. The hinged door is reversible and can be configured for left or right hand opening.
| Manufacturer Part Number | BRES-43P |
|---|---|
| Manufacturer | Safybox |
| Material | GRP-Polycarbonate |
| Degree of protection (IP) | IP66 |
| Depth | 200mm |
| Width | 300mm |
| Height | 400mm |
| Alternative Product SKU | BRES43P |
Write Your Own Review
BRES range of monoblock cabinets for electricity manufactured in fiberglass reinforced polyester (GRP enclosure).
Characteristics of the SAFYBOX-BRES electrical box:
Monoblock body with door, made of light grey fiberglass reinforced polyester Ral 7035 (GRP / SMC)
Hinged door with key lock. Version of the cabinet with door with transparent window available (UV stabilized).
The Bres enclosures are rated at IP66 tightness and impact resistance IK10, perfect for outdoor applications.
There are a wide range of accessories including:
- Modular chassis,
- Plinths
- Viewing windows
- Locking systems
- Cable glands
- Wall brackets
- air vents and much more
Innovation and added value:
The Bres range comes in 8 different sizes to suit most applications, if you cannot see the size you require please get in touch as there are other ranges from Uriarte Safybox which include the CA, DIN and ART which may have the size you require
The Bres range can be Individual installed or connected to each other to make electrical panels thanks to coupling flanges (modularity).
Flexibility: Easy to perform machining for cable input / output and customize the electrical enclosure to your needs. In our factories we have machining robots that allow us to do this work for you quickly, clean and economically.
Double insulation: Through the use of double insulated holes for wall mounting, the electrical equipment or switchgear assembly inside is completely isolated from the outside in order to avoid accidents and certify its electrical safety and insulation.
Benefits of the materials:
The reinforced thermoset polyester with which they are manufactured is the best insulating material available in the market. Ideal even in the most aggressive environments.
Self-extinguishing material. If there is a fire, the flame will not spread. Polyester is a thermostable and will not deform if there is overheating or fire.
Non-conductive material of electricity: Unlike metal boxes there is no danger in handling and we are not at risk of electrical shock (See accident video by download in the security section)
Easy maintenance They are ideal for outdoor use since they perfectly withstand the effects of weather in aggressive environments thanks to their material. It is non-hygroscopic and is protected against UV light, which allows an optimum operation of + 100º to -50º.
Total absence of toxic components and heavy metals fulfilling perfectly with the European Regulation of dangerous substances.
Customisation Options
Uriarte Safybox offer a wide range of customisation options on their range of enclosures.
Laser marking – Uriarte offer a laser marking service so you can have your company logo added the front of your enclosure or get rid of the mimic on the front of your enclosure and have the information lasered straight on to the front of the Bres enclosure
Hole cutting – Uriarte Safbox offer a hole cutting service, you can get you enclosures ready to install the buttons, HMI’s or indicators, saving you time and ensuring a quality finish
Turnkey solutions – Uriarte also offer a full turnkey solution, providing you with a fully equipped GRP enclosure
