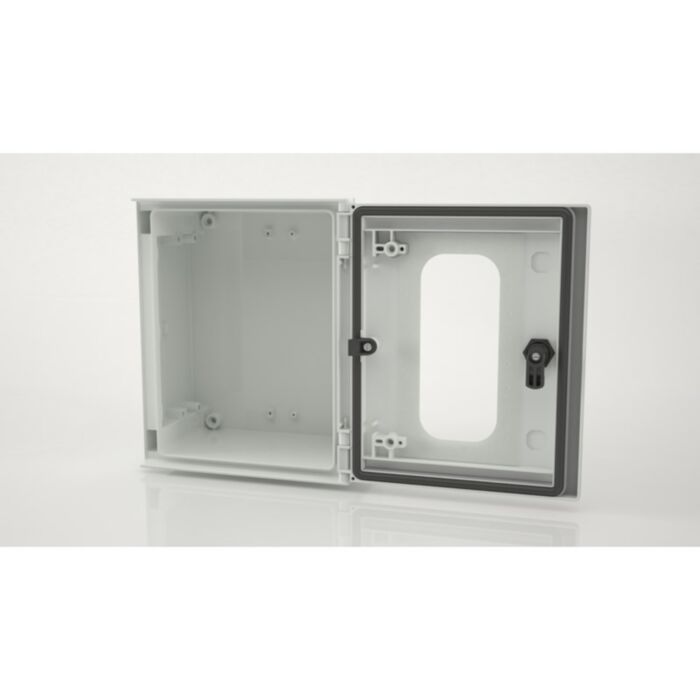

BRES-325P Safybox GRP Electrical Enclosure IP66 with a Glazed Door 300Hx250Wx140D
MPN: BRES-325P
Alt. SKU: BRES325P
Special Price
£90.54
£75.45
Regular Price
£144.86
Why Choose the Safybox BRES-325P GRP Enclosure with Transparent Door?
The Safybox BRES-325P is a heavy-duty monobloc industrial enclosure featuring a transparent inspection door, allowing visual monitoring of internal equipment without compromising enclosure integrity. Manufactured from high-strength glass-reinforced polyester (GRP/SMC), it provides outstanding resistance to corrosion, UV exposure and harsh industrial conditions.
With IP66 ingress protection and IK10 impact resistance, the BRES-325P ensures reliable defence against dust, powerful water jets and mechanical damage. The clear viewing panel improves operational efficiency by enabling quick status checks of breakers, meters or control devices while maintaining electrical safety through its non-conductive, double-insulated housing.
Key Features
- Transparent inspection door for safe visual monitoring.
- IP66 rated – fully dust tight and resistant to powerful water jets.
- IK10 impact protection for high mechanical durability.
- Constructed from non-conductive GRP for enhanced safety.
- Excellent UV and corrosion resistance for outdoor environments.
- Hinged, reversible door with wide opening angle.
- Secure locking mechanism for controlled access.
- Double insulated enclosure body.
Technical Specifications
- Manufacturer: Safybox
- Model: BRES-325P
- Product type: GRP industrial enclosure with viewing window
- Material (body): Glass-reinforced polyester (GRP/SMC)
- Door: Transparent inspection panel integrated into hinged door
- Colour: Grey (RAL 7035)
- External dimensions (H × W × D): 300 × 250 × 140 mm
- Ingress protection: IP66 (IEC 60529)
- Impact rating: IK10 (IEC 62262)
- Mounting: Wall mounted
- Insulation: Double insulated, non-conductive housing
- Operating temperature range: Approx. −50°C to +80°C
Typical Applications
- Electrical distribution boards requiring visible breaker status.
- Industrial automation panels with monitoring devices.
- Energy metering and monitoring installations.
- Renewable energy junction and control systems.
- Outdoor utility and infrastructure environments.
Frequently Asked Questions
What is the advantage of the transparent door?
The transparent inspection panel allows visual monitoring of internal components without opening the enclosure, improving safety and efficiency.
What IP rating does the BRES-325P have?
The enclosure is rated IP66, meaning it is fully dust tight and protected against powerful water jets.
Is it suitable for outdoor use?
Yes. The GRP housing provides strong UV stability and corrosion resistance, making it suitable for outdoor industrial environments.
Is the enclosure electrically insulated?
Yes. The non-conductive glass-reinforced polyester body offers double insulation for enhanced electrical safety.
Can the door opening direction be changed?
Yes. The hinged door is reversible and can be configured for left or right hand opening.
| Manufacturer Part Number | BRES-325P |
|---|---|
| Manufacturer | Safybox |
| Material | GRP-Polycarbonate |
| Degree of protection (IP) | IP66 |
| Depth | 140mm |
| Width | 250mm |
| Height | 300mm |
| Alternative Product SKU | BRES325P |
Write Your Own Review
BRES range of monoblock cabinets for electricity manufactured in fiberglass reinforced polyester (GRP enclosure).
Characteristics of the SAFYBOX-BRES electrical box:
Monoblock body with door, made of light grey fiberglass reinforced polyester Ral 7035 (GRP / SMC)
Hinged door with key lock. Version of the cabinet with door with transparent window available (UV stabilized).
The Bres enclosures are rated at IP66 tightness and impact resistance IK10, perfect for outdoor applications.
There are a wide range of accessories including:
- Modular chassis,
- Plinths
- Viewing windows
- Locking systems
- Cable glands
- Wall brackets
- air vents and much more
Innovation and added value:
The Bres range comes in 8 different sizes to suit most applications, if you cannot see the size you require please get in touch as there are other ranges from Uriarte Safybox which include the CA, DIN and ART which may have the size you require
The Bres range can be Individual installed or connected to each other to make electrical panels thanks to coupling flanges (modularity).
Flexibility: Easy to perform machining for cable input / output and customize the electrical enclosure to your needs. In our factories we have machining robots that allow us to do this work for you quickly, clean and economically.
Double insulation: Through the use of double insulated holes for wall mounting, the electrical equipment or switchgear assembly inside is completely isolated from the outside in order to avoid accidents and certify its electrical safety and insulation.
Benefits of the materials:
The reinforced thermoset polyester with which they are manufactured is the best insulating material available in the market. Ideal even in the most aggressive environments.
Self-extinguishing material. If there is a fire, the flame will not spread. Polyester is a thermostable and will not deform if there is overheating or fire.
Non-conductive material of electricity: Unlike metal boxes there is no danger in handling and we are not at risk of electrical shock (See accident video by download in the security section)
Easy maintenance They are ideal for outdoor use since they perfectly withstand the effects of weather in aggressive environments thanks to their material. It is non-hygroscopic and is protected against UV light, which allows an optimum operation of + 100º to -50º.
Total absence of toxic components and heavy metals fulfilling perfectly with the European Regulation of dangerous substances.
Customisation Options
Uriarte Safybox offer a wide range of customisation options on their range of enclosures.
Laser marking – Uriarte offer a laser marking service so you can have your company logo added the front of your enclosure or get rid of the mimic on the front of your enclosure and have the information lasered straight on to the front of the Bres enclosure
Hole cutting – Uriarte Safbox offer a hole cutting service, you can get you enclosures ready to install the buttons, HMI’s or indicators, saving you time and ensuring a quality finish
Turnkey solutions – Uriarte also offer a full turnkey solution, providing you with a fully equipped GRP enclosure
