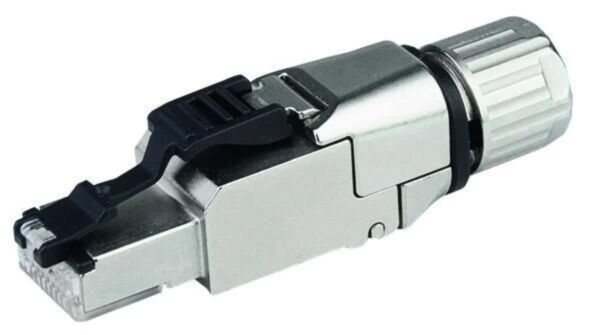

Wago 750-978/000-012 Connector ETHERNET; RJ-45; Cat. 6A; straight; Strain relief

Why Choose the WAGO 750-978/000-012 Ethernet Connector?

The WAGO 750-978/000-012 is a high-performance RJ45 Cat 6A Ethernet connector designed for fast and reliable industrial networking. It allows field assembly of Ethernet cables used in automation systems, enabling dependable communication between PLCs, distributed I/O systems and industrial devices.

Part of the trusted WAGO automation product range, this connector supports high-speed Ethernet communication and is widely used in control cabinets, machine installations and industrial networking infrastructure. The connector uses the TIA-568B wiring standard and supports Cat 6A Ethernet cabling for stable data transmission in modern automation networks. :contentReference

Designed for rapid installation, the connector features IDC insulation displacement contacts allowing quick field termination without specialised crimping tools. A durable zinc die-cast housing and integrated strain relief ensure reliable mechanical stability and long service life in demanding industrial environments. :contentReference

Key Advantages

• Reliable industrial Ethernet connectivity for automation networks.
• Supports Cat 6A Ethernet cables for high-speed communication.
• Field-installable RJ45 connector simplifies cable assembly.
• IDC termination technology enables quick wiring without crimp tools.
• Integrated strain relief provides secure cable retention.
• Durable zinc die-cast housing ensures long-term reliability.

Key Features

• RJ45 Ethernet plug for industrial networking.
• 8-pole (8P8C) connector configuration.
• Cat 6A cable compatibility.
• Straight cable outlet (0°).
• TIA-568B wiring code.
• IDC insulation displacement contact termination.
• Compatible with AWG 22 conductors.
• Designed for industrial automation communication networks.

Technical Specifications

• Manufacturer: WAGO
• Model: 750-978/000-012
• Product type: Industrial Ethernet connector
• Connector type: RJ45 plug
• Number of contacts: 8 (8P8C)
• Cable category: Cat 6A
• Wiring standard: TIA-568B
• Termination method: IDC insulation displacement contact
• Wire gauge compatibility: 0.21 – 0.32 mm² (24–22 AWG solid)
• Stranded conductor range: 0.11 – 0.36 mm²
• Permissible cable diameter: approx. 5.5 – 10 mm
• Housing material: Zinc die casting
• Ingress protection: IP20
• Operating temperature: −40 °C to +85 °C
• Dimensions: approx. 13.9 mm × 16.3 mm × 56.6 mm
• Standards: IEC 60603-7-51, ISO/IEC 11801, IEEE 802.3an, EIA/TIA 568-C.2
• Application: Industrial Ethernet networking

Industrial Ethernet Connectivity

Industrial automation networks rely on stable Ethernet connections between PLC controllers, sensors, drives and distributed I/O modules. Ethernet-based protocols allow high-speed data exchange across production systems and control equipment.

Field-installable connectors such as the WAGO 750-978/000-012 enable engineers to assemble Ethernet cables directly on site, reducing installation time while maintaining high-quality signal transmission across automation networks. :contentReference

Typical Applications

• Industrial Ethernet communication networks.
• PLC and distributed I/O connectivity.
• Machine automation and manufacturing equipment.
• Control cabinet networking installations.
• Industrial communication infrastructure.

Trusted by Automation Engineers

WAGO Ethernet connectors are widely used by automation engineers and machine builders to create reliable communication networks between PLC controllers, distributed I/O systems and field devices.
