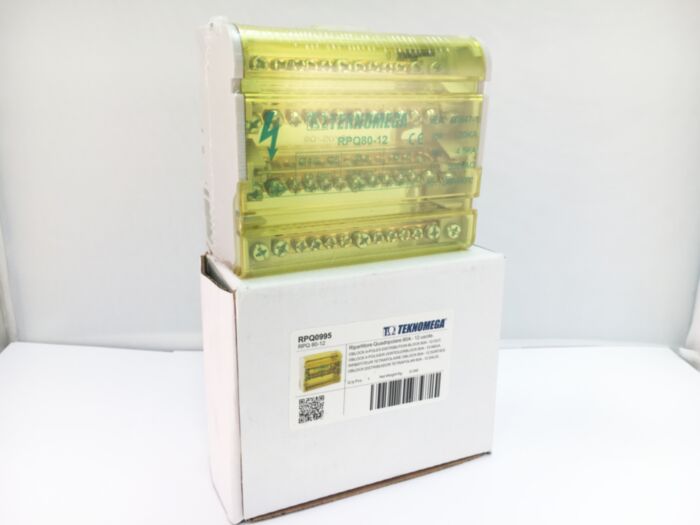

Teknomega RPQ0995 - Omega 4 Pole Distribution Block 80A 12 Outputs

Why Choose the Teknomega RPQ0995 4-Pole 80A/12 Output Distribution Block?

The Teknomega RPQ0995 4-Pole Distribution Block provides robust, versatile power distribution for three-phase and neutral applications. With 12 outputs and an 80A rating per pole, it enables efficient and safe circuit management in control panels, automation systems, and industrial distribution boards.

Key Takeaways

• 4 poles, 80A per pole
• Input: 6–16 mm² (with ferrule)
• 12 outputs: 1 x 6–16 mm², 1 x 2.5–6 mm², 10 x 1.5–4 mm²
• Dimensions: 100 x 84 x 50 mm
• DIN rail mountable, quick installation
• Certified to EN 60947-7-1

Frequently Asked Questions About the Teknomega RPQ0995

• How many output terminals does it have?
• What wire sizes are compatible?
• Can it be mounted on a DIN rail?
• What materials are used?
• What standards does it meet?

Teknomega RPQ0995 Distribution Block Overview

The RPQ0995 is engineered for complex power distribution, accepting 6–16 mm² input cables and distributing to 12 output terminals of varying sizes. Its PA6 insulated body and transparent polycarbonate cover ensure high safety standards. With quick DIN rail mounting and a space-saving footprint, it’s a dependable choice for demanding panel layouts.

Speed & Safety Benefits

• Multiple outputs: 12 output terminals for flexible wiring
• High safety: Flame-retardant housing and removable cover
• Quick, clean installation: DIN rail compatible

Key Features of the Teknomega RPQ0995

• Current Rating: 80A per pole
• Poles: 4
• Input: 6–16 mm² (with ferrule)
• Outputs: 1 x 6–16 mm², 1 x 2.5–6 mm², 10 x 1.5–4 mm²
• Material: Brass terminals, PA6 enclosure
• Dimensions: 100 x 84 x 50 mm
• Compliant with EN 60947-7-1

Choose the Teknomega RPQ0995 Distribution Block for flexible, reliable, and high-capacity power management in your electrical panels.
