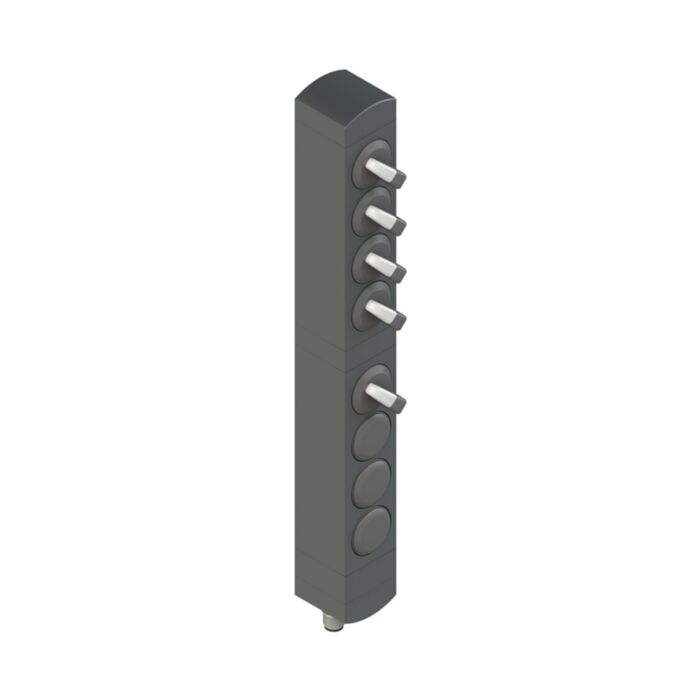

BN AC8ZA07 Pizzato BN Series IP65 8 Device Control Unit
MPN: BN AC8ZA07
Alt. SKU: BNAC8ZA07
£443.54
£369.62
Why Choose the BNAC8ZA07
The Pizzato Elettrica BNAC8ZA07 is an 8 Device Control Unit from the BN AC Series, designed for reliable operator control in industrial environments. This unit features five 2-position selector switches (each with 1NO contact) in positions 1 to 5, complemented by three blanking plugs in positions 6 to 8 for configuration flexibility.
With a high degree of protection to IP65 (EN 60529) and a robust M12, 12-pole connector, the BNAC8ZA07 meets rigorous international standards and approval requirements. It is suitable for diverse applications demanding dependable, panel-mounted control.
Key Benefits
- Five 2-position selector switches for versatile operational control
- IP65 rated for protection against dust and water jets
- M12, 12-pole connection enabling rapid and robust wiring
- Conforms to EN 60529 for ingress protection requirements
- Certified with cULus, EU Declaration of Conformity, and UKCA Declaration of Conformity
Technical Specification
- Manufacturer: Pizzato Elettrica
- Series: BN AC
- Product Type: 8 Device Control Unit
- Device Configuration:
- Position 1: 2-position selector, 1NO contact
- Position 2: 2-position selector, 1NO contact
- Position 3: 2-position selector, 1NO contact
- Position 4: 2-position selector, 1NO contact
- Position 5: 2-position selector, 1NO contact
- Positions 6-8: Blanking plug
- Total Contacts: 5 x 1NO (one for each of the first five selector switches)
- Protection Degree: IP65 according to EN 60529
- Connection: M12 connector, 12 poles
- Approvals: cULus, EU Declaration of Conformity, UKCA Declaration of Conformity
- Standards: EN 60529
Applications
- Panel-mounted multidevice control in automation assemblies
- Operator stations requiring up to five selectable functions
- Industrial automation, machinery, and process control
- Environments demanding high ingress protection
Frequently Asked Questions
What devices are included in the BNAC8ZA07?
The unit contains five 2-position selector switches (each with a 1NO contact) in positions 1 through 5, with blanking plugs in positions 6, 7, and 8.
What protection does the enclosure provide?
The BNAC8ZA07 is rated IP65 according to EN 60529, ensuring dust-tight construction and resistance to water jets from any direction.
How is the BNAC8ZA07 connected?
Connection is achieved via an M12 connector with 12 poles, suitable for fast, secure installation in industrial control panels.
Which certifications does this unit carry?
The unit is approved with cULus, EU Declaration of Conformity, and the UKCA Declaration of Conformity, ensuring compliance for global marketplaces.
Are wiring diagrams provided?
Wiring diagrams and further documentation should be referenced from the official manufacturer resources for accuracy and compliance.
What standards does this device meet?
It conforms to EN 60529 for ingress protection as well as holding cULus, EU, and UKCA certification for electrical safety.
Safety note: All safety and control devices must be installed and maintained in accordance with your machine risk assessment, following the latest applicable standards and official manufacturer instructions.
| Alternative Product SKU | BNAC8ZA07 |
|---|---|
| Manufacturer Part Number | BN AC8ZA07 |
| Manufacturer | Pizzato |
| Barcode | 8018851548437 |
| Degree of protection (IP) | IP65 |
| Suitable for emergency stop | Yes |
| Colour housing cover | Grey |
| Housing material | Plastic |
| Number of command positions | 8 |
| Range | BN |
| Packed Quantity | 1 |
| HS Code | 85369095 |
