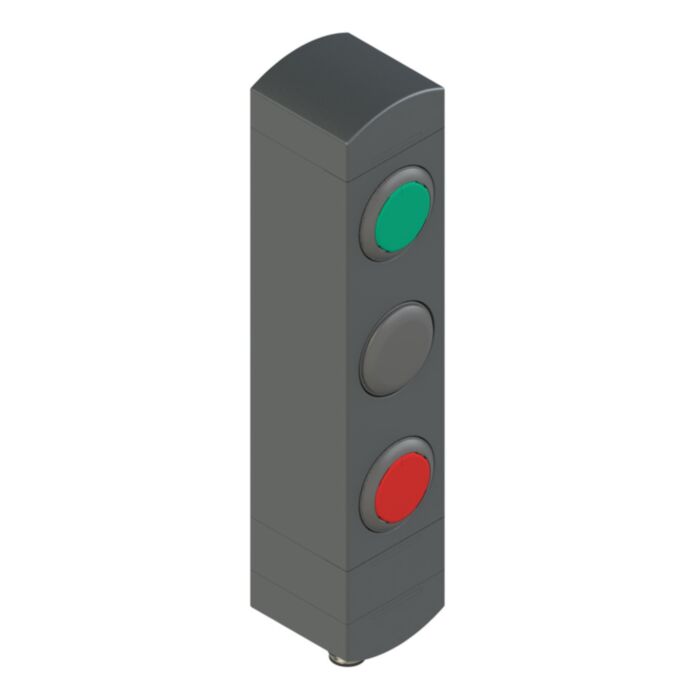

BN AC3ZA07 Pizzato BN Series IP65 3 Device Control Unit
MPN: BN AC3ZA07
Alt. SKU: BNAC3ZA07
£169.68
£141.40
Why Choose the BNAC3ZA07
The Pizzato Elettrica BNAC3ZA07 is a BN series 3 Device Control Unit combining a green pushbutton (1NO), blanking plug, and red pushbutton (1NO) in a single pre-wired assembly. It is designed for machine-side or panel mounting, helping to simplify the integration of control devices in industrial automation systems.
With a rugged IP65 enclosure to EN 60529 and a bottom-exit M12, 12-pole connector, this unit is suited for reliable operation and rapid installation in demanding industrial environments.
Key Benefits
- Ready-to-use 3-position control unit minimises assembly time
- IP65 protection for dependable use in production or factory settings
- M12, 12-pole connector for easy and standardised connection
- Clearly marked actuator positions for intuitive operation
- Backed by cULus and UKCA/EU compliance
Technical Specification
- Manufacturer: Pizzato Elettrica
- Series: BN
- Product type: 3 Device Control Unit
- Number of devices: 3
- Position 1: Green pushbutton 1NO
- Position 2: Blanking plug
- Position 3: Red pushbutton 1NO
- Contacts: Position 1: 1NO; Position 3: 1NO
- Protection degree: IP65 according to EN 60529
- Connection: M12 connector, 12 poles, bottom exit
- Approvals / markings: cULus, EU Declaration of Conformity, UKCA Declaration of Conformity
- Complies with: EN 60529
What’s Included
- BNAC3ZA07 fully assembled 3 device control unit
- All actuators as described above, pre-installed
- Factory-mounted blanking plug (position 2)
- Quick-connect M12, 12-pole bottom exit
Applications
- Operator control panels for machinery and process lines
- Distributed machine-side control units
- Production, packaging, and automation environments requiring resilient operator interfaces
Frequently Asked Questions
What actuators are included in the BNAC3ZA07?
The unit features a green pushbutton (1NO) in position 1, a blanking plug in position 2, and a red pushbutton (1NO) in position 3.
What is the degree of protection offered?
The enclosure is rated IP65 according to EN 60529, ensuring resistance to dust and low-pressure water jets for industrial use.
How do I connect the control unit to my system?
Connection is via a bottom-exit M12, 12-pole connector, allowing fast, standardised wiring to your control architecture.
Is the product compliant with international standards?
Yes. It carries cULus, EU Declaration of Conformity, and UKCA Declaration of Conformity approvals, and complies with EN 60529.
What type of contacts are provided?
Position 1 (green) and position 3 (red) are both pushbuttons with 1NO (normally open) contacts.
Can I use this on a machine exposed to dust or water?
Yes, with its IP65 rating, the unit is suitable for machine-side mounting in industrial environments exposed to dust and water jets.
Safety note: Ensure this device is specified and integrated as part of your machine’s risk assessment. Always follow the wiring and installation instructions as set out in applicable standards and by Pizzato Elettrica.
| Alternative Product SKU | BNAC3ZA07 |
|---|---|
| Manufacturer Part Number | BN AC3ZA07 |
| Manufacturer | Pizzato |
| Barcode | 8018851526107 |
| Degree of protection (IP) | IP65 |
| Suitable for emergency stop | Yes |
| Colour housing cover | Grey |
| Housing material | Plastic |
| Number of command positions | 3 |
| Range | BN |
| Packed Quantity | 1 |
| HS Code | 85369095 |
