BN AC2ZA26 Pizzato BN Series IP65 2 Device Control Unit

Why Choose the BNAC2ZA26

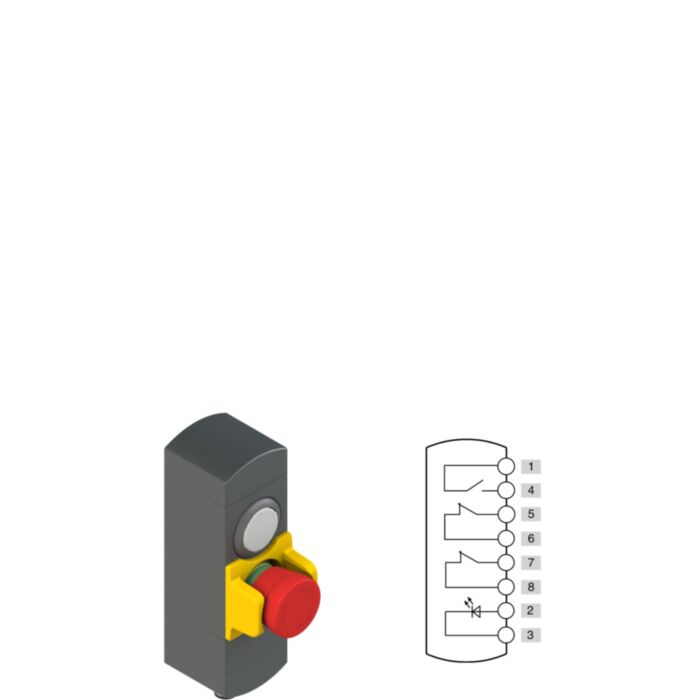

The Pizzato Elettrica BNAC2ZA26 is a robust BN series control device unit designed for dependable emergency stop and start operations in industrial applications. Configured with a white pushbutton (1NO contact) and a red emergency stop button (turn-to-release, 2NC contacts), it provides a clear and reliable safety interface for machine operators. Manufactured to EN 60529 standards, its enclosure achieves IP65 protection for use in demanding environments.

Ideal for machine-side installation, the BNAC2ZA26 features an 8-pole M12 connector at the bottom, simplifying electrical connection and integration into safety circuits. Certified to cULus, UKCA, and supplied with a UE Declaration of Conformity, it is fully compliant for use in UK and international installations.

Key Benefits

• Dual function: Emergency stop and standard pushbutton operation in a single unit
• Turn-to-release E-stop: Prevents accidental reset, enhancing operator safety
• M12 8-pole connector: Fast, error-resistant plug-in wiring
• IP65 protection: Reliable sealing against water jets and dust ingress
• Compliances: cULus, UKCA, UE Declaration of Conformity

Technical Specification

• Manufacturer: Pizzato Elettrica
• Series: BN
• Product type: Control device unit
• Device configuration:
  • Position 1: Pushbutton, white, 1NO contact
  • Position 2: Emergency stop button, red, turn-to-release, 2NC contacts
• Contacts: 1NO (pushbutton), 2NC (emergency stop)
• Protection degree: IP65 according to EN 60529
• Connection: M12 connector, 8-pole, at bottom
• Approvals: cULus Certificate, UE Declaration of Conformity, UKCA Declaration of Conformity
• Standards compliance: EN 60529

What’s Included

• BNAC2ZA26 pre-assembled control device unit
• Factory-configured pushbutton and emergency stop devices
• Integrated 8-pole M12 connector for fast installation
• Access to manufacturer compliance and installation documentation

Applications

• Operator panels and machine frames requiring both emergency stop and start/control buttons
• Integration into automated production lines, conveyors, and safety circuits
• Installations demanding quick wiring and reliable environmental protection

Typical Wiring Use

The 1NO contact from the pushbutton and 2NC contacts from the emergency stop are typically wired to safety relays or control PLCs for safe machine start and stop functionality. The M12 8-pole connector supports straightforward connection to machine safety and control systems.

Maintenance and Inspection

Regular checks of button operation, mechanical integrity, and connector security are advised by the manufacturer to ensure ongoing safety performance. Damaged units or connectors should be replaced immediately, following all site safety protocols.

Trusted By Customers Worldwide

"Installation is faster and more reliable with dual-function control in one sealed device." Machine Safety Engineer, UK

Safety note: Emergency stop and control device units are part of functional safety and must be selected, installed, and maintained in accordance with your machine’s risk assessment and applicable regulations. Always refer to the manufacturer’s official documentation for safe integration.
