Wöhner CrossBoard BusBar System

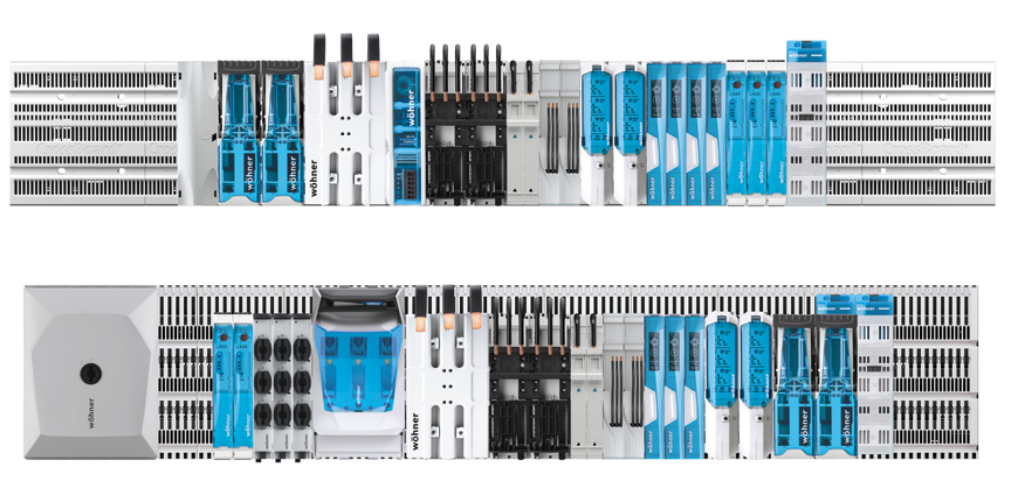

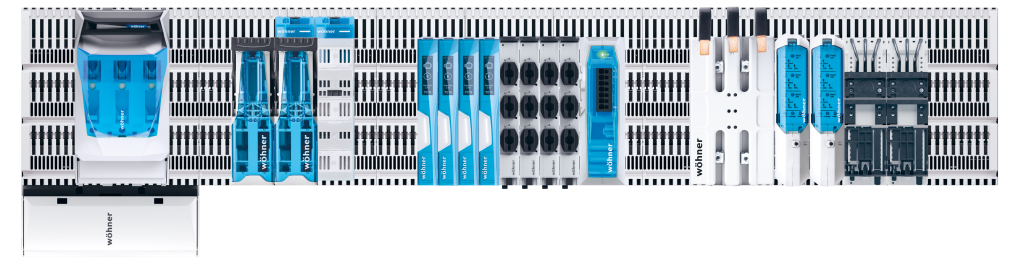

The Wöhner CrossBoard range is a modern, modular busbar system available from LED Controls. Crossboard is designed to make power distribution quicker to install, safer to operate and easier to expand.

• Quicker
  • Your CrossBoard arrives pre-assembled and ready to be fitted with components that clip on tool-free, pacing up your installation process no end.
• Safer
  • The busbars and connectors are protected all around so live parts are not exposed to accidental touch during installation or use. Busbars and plug-in components limit complicated wiring.
• More Versatile
  • The whole system is designed to work across different panel sizes, and offer simple modular expansion. All CrossBoard products use CrossLink® technology, meaning parts can also be used with compatible basic systems if needed.

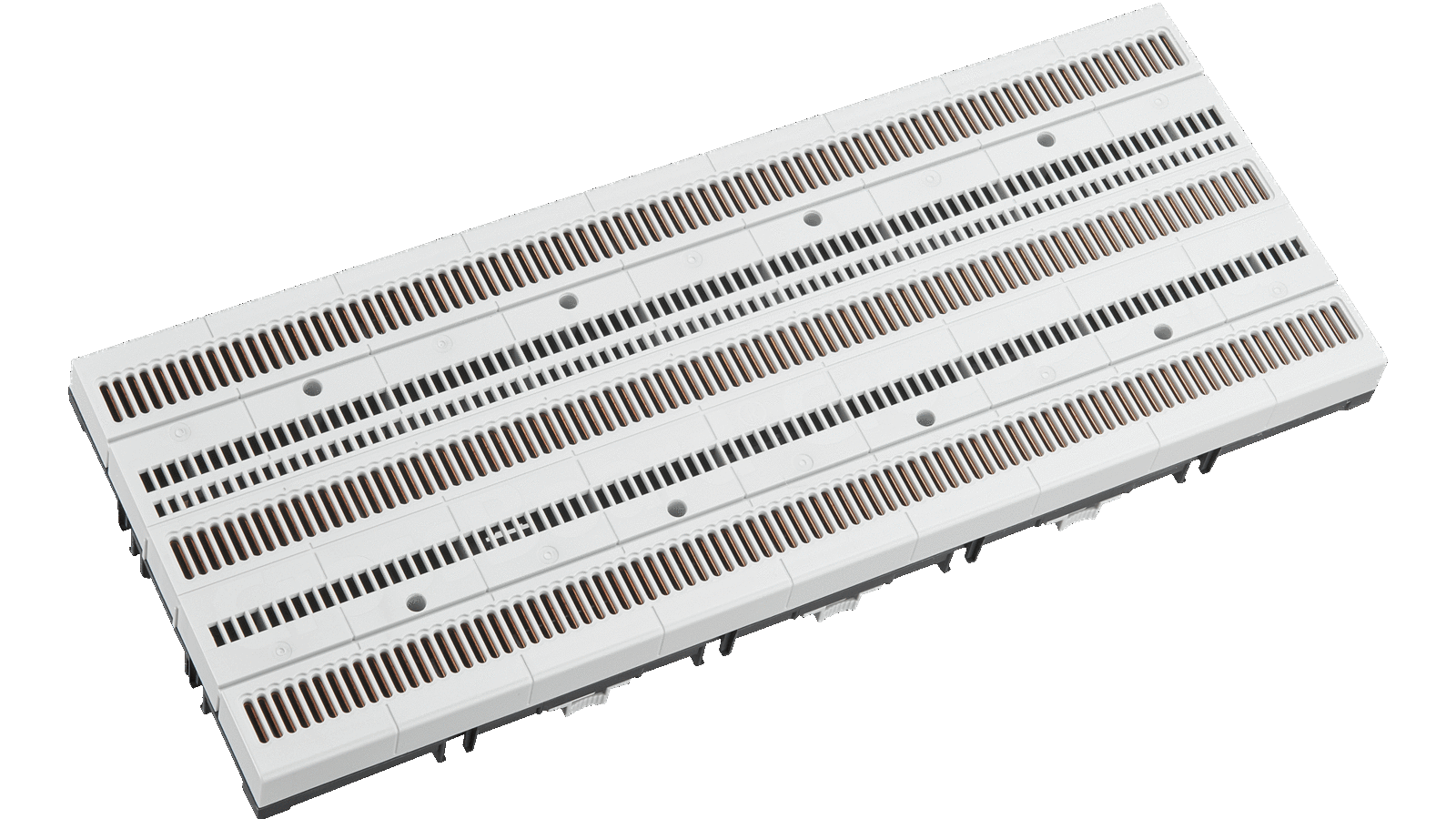

CrossBoard 125 A

Crossboard 125A - the smallest variant - is perfect for when your panel does not need to distribute large amounts of power. It offers full touch-safe protection and easy plug-in assembly. Typical uses include smaller control cabinets or panel sections where loads are modest.

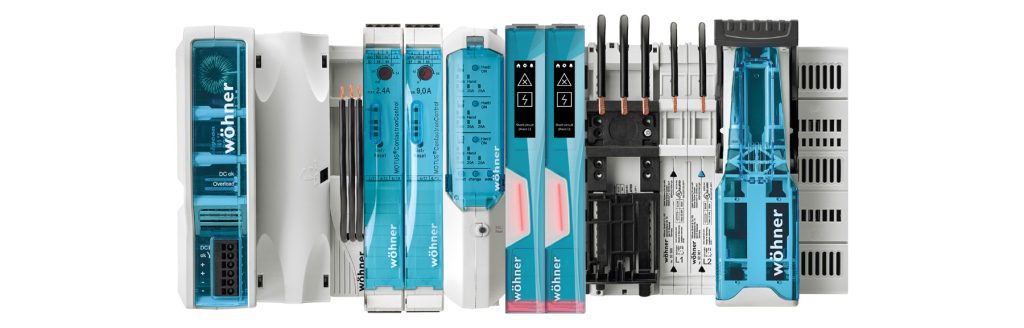

CrossBoard 250 A

Crossboard 250 A is the most commonly chosen variant for general industrial control and automation environments, handling currents up to 250 A. Like the 125 A system it is housed in a compact 160 mm height, but it supports a wider range of panel widths and makes efficient use of space. The rear feed option lets you bring the main supply in from the back, leaving the front face free for more outlets and devices.

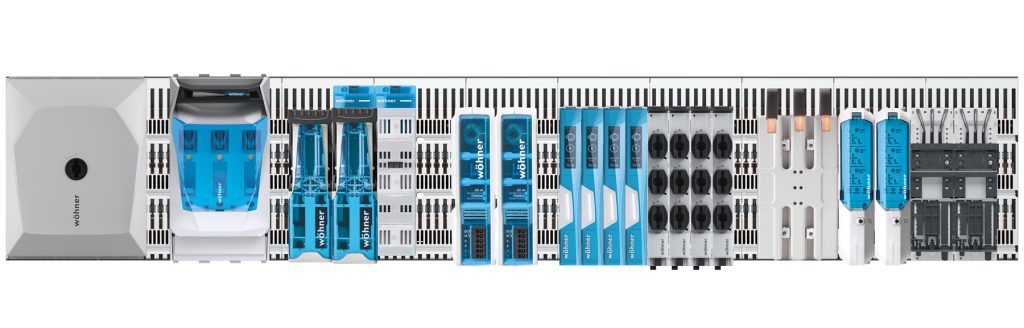

CrossBoard 800 A

Crossboard 800 A is the high-capacity version for applications with larger power needs, such as bigger motor loads, main distribution sections or larger panels. It builds on the CrossBoard philosophy of safety and modularity, but uses a hybrid rail that supports both plug-in contacting up to 250 A and robust terminal contacting for higher outgoing circuits. The larger panel height and improved short-circuit strength make the 800A range suitable for heavy duty installations.

The 800 A also uses the same CrossBoard components as the smaller systems, so scaling up does not necessarily mean learning a new platform.

Feature	CrossBoard 125 A	CrossBoard 250 A	CrossBoard 800 A
Rated current (IEC)	125 A	250 A	800 A
Rated current (UL)	100 A	250 A	800 A
System height	160 mm	160 mm	200 mm
Assembly type	Simple direct mounting	Plug-and-play with rear feed	Plug-and-play with rear feed
Contacting	Plug-in only	Plug-in only	Plug-in and terminal with hybrid rail
Typical panel widths	225 mm & 405 mm	300 mm to 1100 mm	500 mm to 1100 mm
Best for	Smaller panels and control circuits	Mid-range power panels	High power distribution and large panels

How to choose between 125 A, 250 A and 800 A

For smaller panels or applications with modest power requirements, the 125 A variant provides a compact, fully touch-safe solution where space is limited and current demands are low. For most panels up to medium power levels, the 250 A variant offers a good balance of capacity, compact size and flexibility. If your design includes heavy loads, higher short-circuit demands or you anticipate future expansion, the 800 A system gives you that extra margin without leaving the CrossBoard ecosystem.

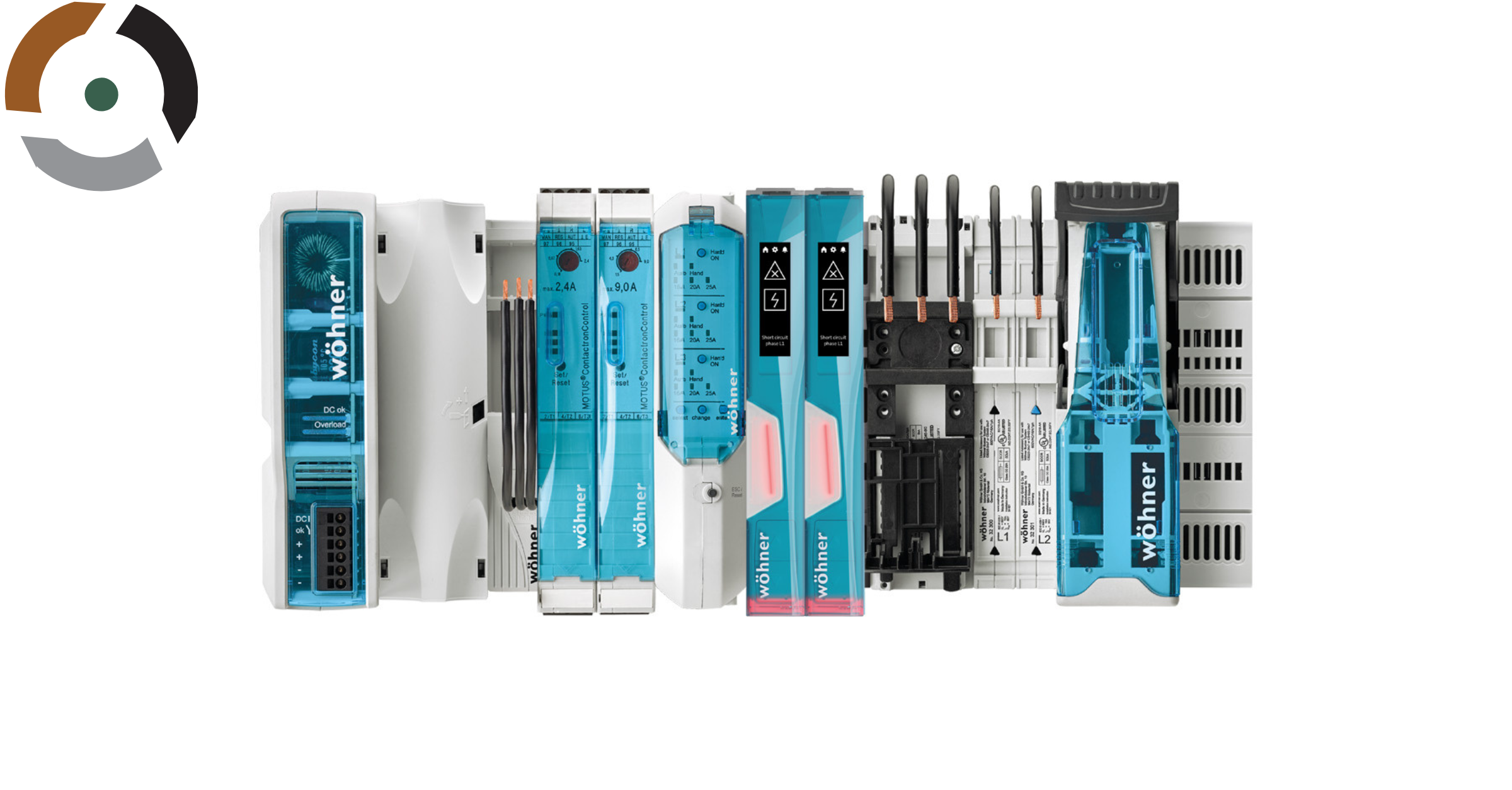

Wöhner Crossboard available from LED Controls

LED Controls is proud to supply the Wöhner CrossBoard range to our customers. Whether for a small control panel or a high-power distribution board, there is a CrossBoard variant to suit your needs. Either peruse our range online at your leisure, or get in touch for some expert LED Controls advice.
