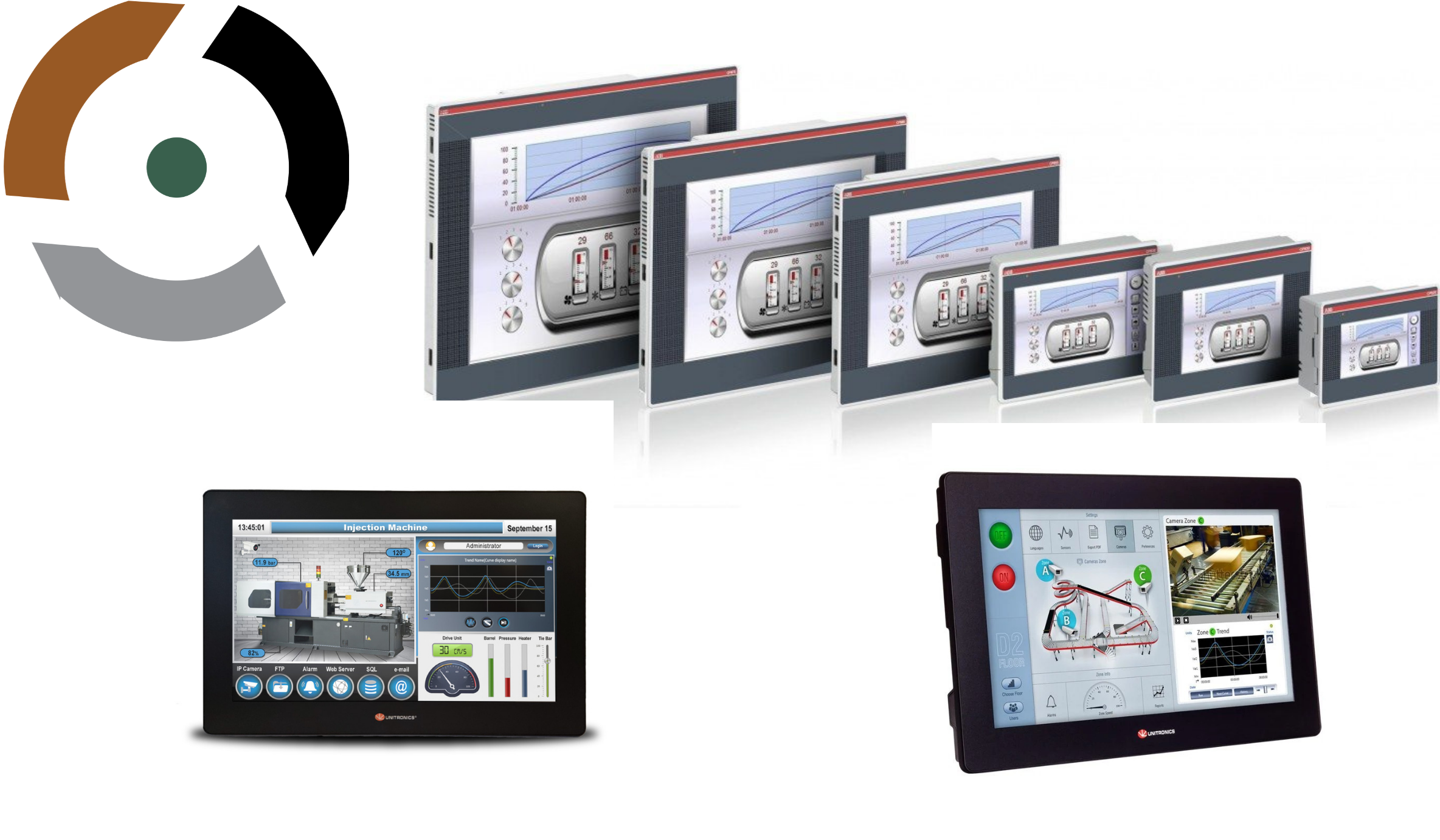

What is an HMI? The Complete LED Controls Guide to Human Machine Interfaces

If you've ever poked a touchscreen, then congratulations: You - a human - have successfully interfaced with a machine. A Human Machine Interface is simply the method that a person uses to interact with a machine. Industrially speaking, an HMI is the display that allows you to input and receive data from the machines in your system.

At LED Controls we supply a full range of HMIs, HMI panels and interfaces from leading industrial automation brands such as Unitronics and ABB. Giving you everything you need to keep your systems running smoothly.

What is a Human Machine Interface?

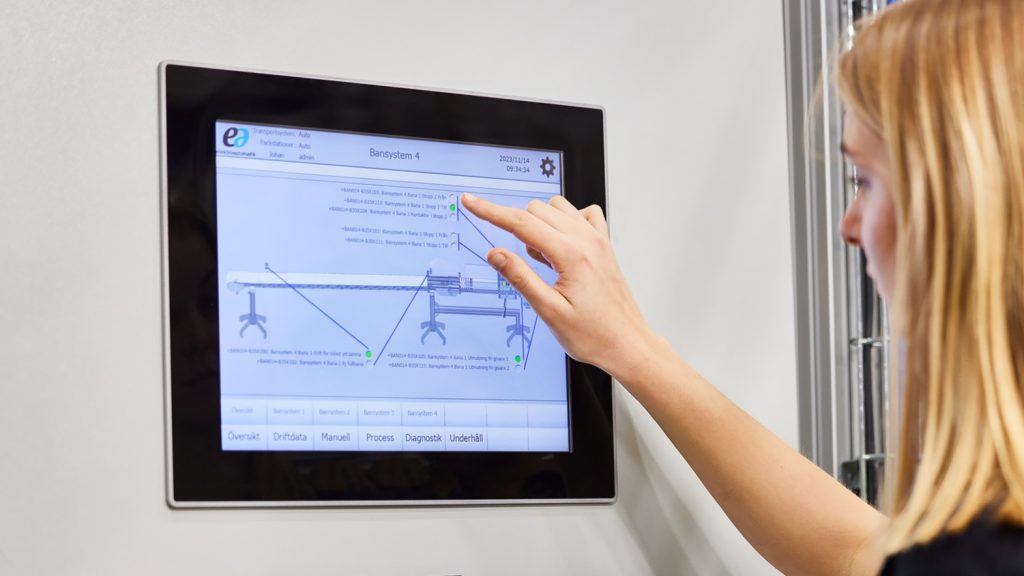

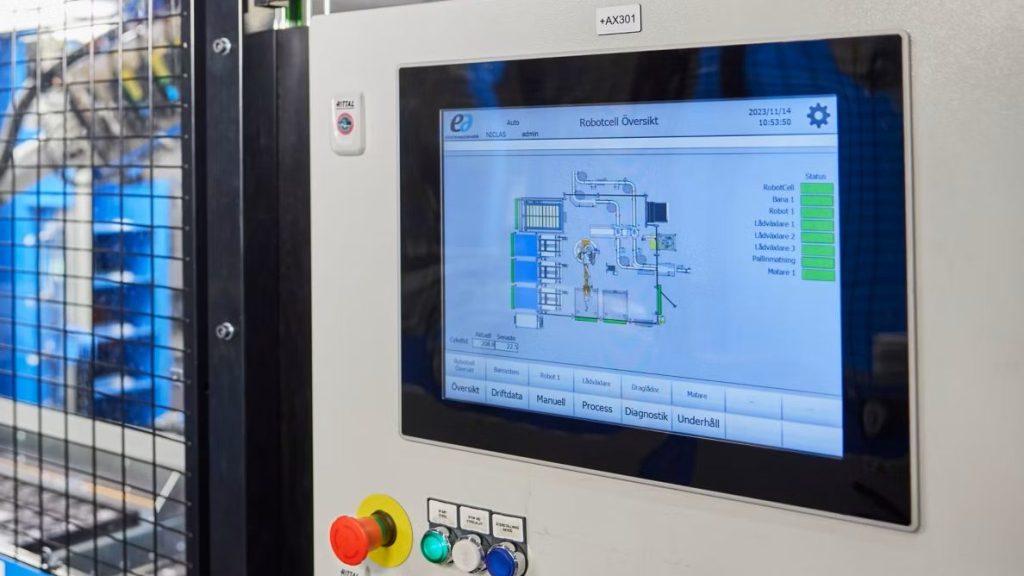

An HMI is the part of a control system that the human operator interacts with. Modern HMIs are typically colour touchscreens, similar to a tablet or mobile phone, but designed specifically for industrial environments. Instead of having to read switches, lights and dials, the HMI shows you graphic representations of machine status, values, alarm messages and controls. They make your machines easier to run and quicker to troubleshoot.

HMI vs PLC – What’s the Difference?

It is common to see HMIs and PLCs mentioned together. A PLC (Programmable Logic Controller) is a decision-making computer. It reads sensors and drives outputs based on pre-programmed logic. A HMI lets people see and interact with what the PLC is doing. So the HMI might allow you to program the PLC, or monitor the process the PLC is running. In some products the HMI and PLC are integrated into one unit, simplifying wiring and panel space, especially on smaller machines.

How HMIs Work in Automation

The HMI connects to the PLC over an industrial network such as Ethernet/IP or Modbus. The PLC sends data to the HMI telling it what to display. The HMI sends back operator commands like start, stop or setpoint changes. Behind the scenes these happen in milliseconds, giving fast and responsive control. HMIs can also log data for later analysis.

Common Uses for HMIs

• Machine control
  Factory production equipment
  Packaging lines
• Building systems
  HVAC control panels
• Utilities
  Water and wastewater plants
• Material handling
  Conveyors, sorters and automated storage

What to Look for in an HMI

• Display size and clarity - Larger screens support more detailed graphics and are easier to read.
• Touch or button interface - Touchscreen HMIs are intuitive, but resistive or capacitive touch options matter for gloves or harsh environments.
• Compatibility - The HMI must support the same protocols as the control hardware.
• Environmental protection - Industrial HMIs often need IP65 or IP66 protection against dust and moisture.
• Software and tools - Software that makes screen building and alarm setup fast is a real plus.

How to Choose the Right HMI

For compact machines and simple interfaces, smaller standalone HMIs like the 5" and 7" panels are clear, easy to use and cost-effective.
If operators need more information or controls in one place, larger screens like 10.1" or 15.6" give better visibility and more space for graphics.
For systems where the PLC and HMI can be combined, integrated units are great for reducing panel wiring and saving space.

HMI Panels at LED Controls

Brand	HMI Range	Typical applications
ABB HMIs	ABB operator panels and touchscreen HMIs	Machine control, production lines, panel builds
IMO HMIs	IMO touchscreen HMI panels	Industrial machinery and control panels
Unitronics HMIs	Unitronics modular and touchscreen HMIs	Flexible systems, scalable automation projects

Unitronics All-in-One HMI + PLC Controllers

Unitronics All-in-One HMI+PLC range combine the operator interface with the programmable controller in a single unit. They reduce panel space, wiring complexity and can speed up installation.

Product Range	Description	Typical use
Unitronics Built-in HMI + PLC Range	Combined touchscreen HMI and PLC controllers in a single device	Compact machines, OEM equipment and full automation systems where panel space and wiring simplicity matter

This range includes Vision, Samba and UniStream controllers that integrate operator interface and control logic into one simple unit.

At LED Controls we supply a broad range of HMI panels, integrated HMI + PLC controllers and operator interfaces to suit many applications. If you need help choosing the right one, just get in touch!
