Superior Connections with Teknomega Distribution Blocks

What Are Teknomega Distribution Blocks?

Teknomega distribution blocks are compact units that take one electrical input and split it into several outputs. They’re used inside control panels to make power distribution cleaner and safer. So instead of getting tangled up in cables, engineers can use these blocks to keep things organized. They’re strong, safe, easy to install, and are bang-up to international safety standards.

How Do Teknomega Distribution Blocks Work?

A Teknomega distribution block works like a power hub. One large wire brings power into the block, then several smaller wires carry that power out to different parts of the system. Inside the block is a metal bar (usually copper or aluminium), which the input wire connects to. The smaller output wires then connect to this metal bar, which distributes the electricity evenly and carries it on to the next stage of the circuit.

What Sets Teknomega Distribution Blocks Apart?

• Superior Connections: High-quality, rust-resistant metal bars ensure top-notch conductivity, while secure screw or spring terminals guarantee tight, stable connections, which helps eliminate overheating and ensure consistent power flow.
• Versatile Compatibility: Teknomega blocks fit a wide range of cable types and current levels, which ensures a simpler component selection process across the most diverse applications.
• User-Friendly Installation: Clear markings, transparent protective covers, and convenient snap-on mounts - compatible with panels and DIN rails - combine to reduce setup time and chance of error.
• Advanced Safety Features: Touch-safe constructions and IP-rated protective covers prevent accidental contact with live parts, offering enhanced protection in all environments.

With Teknomega Distribution Blocks, expect nothing less than excellence in quality, versatility, convenience, and safety.

What are the Specifics of the Range?

Teknomega offers a complete range of distribution blocks, from one to four poles, giving you everything you need for distribution units from 40 A up to 500 A. Here's the details:

• Versatile Applications: From switchboards, to automation, control and distribution panels.

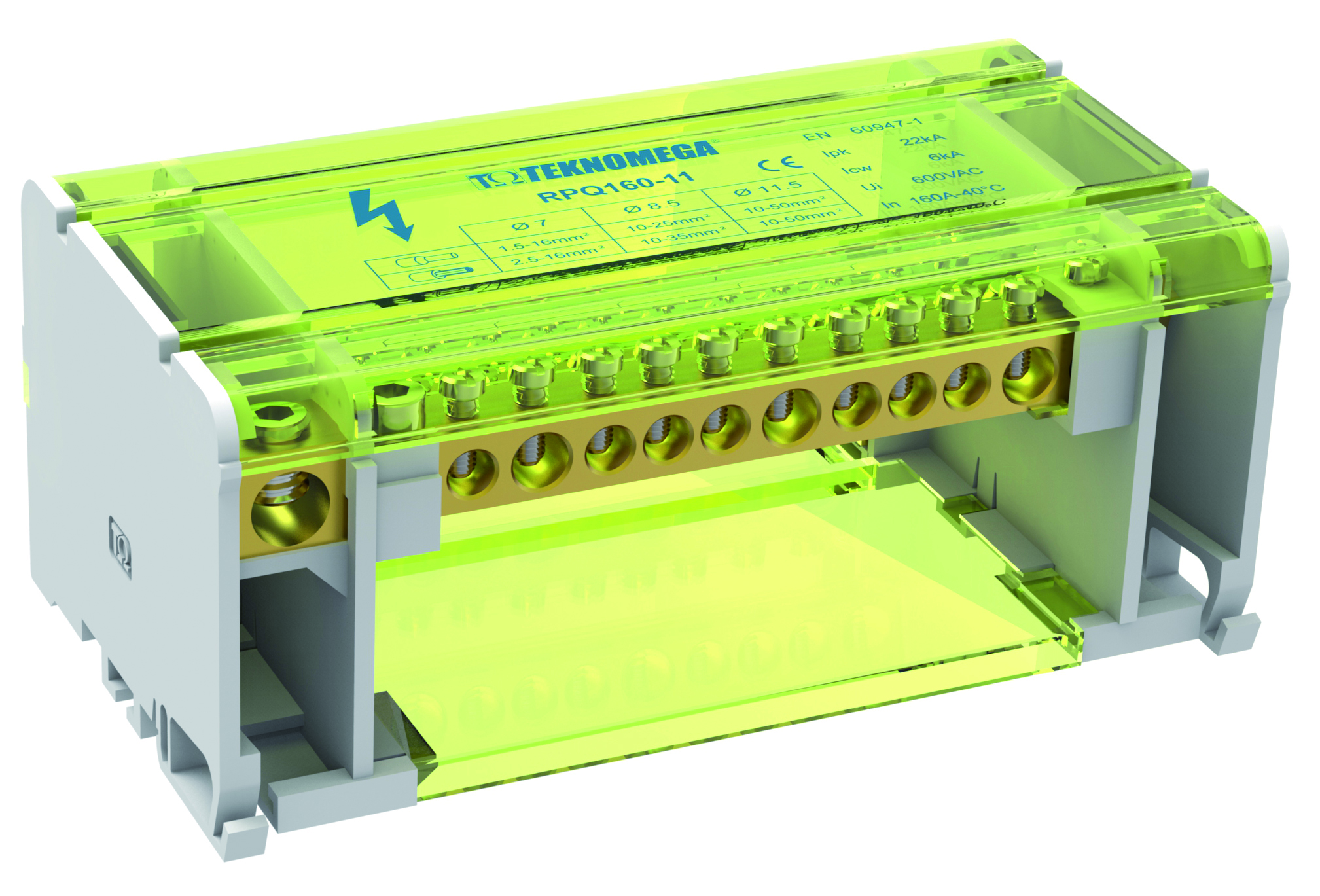

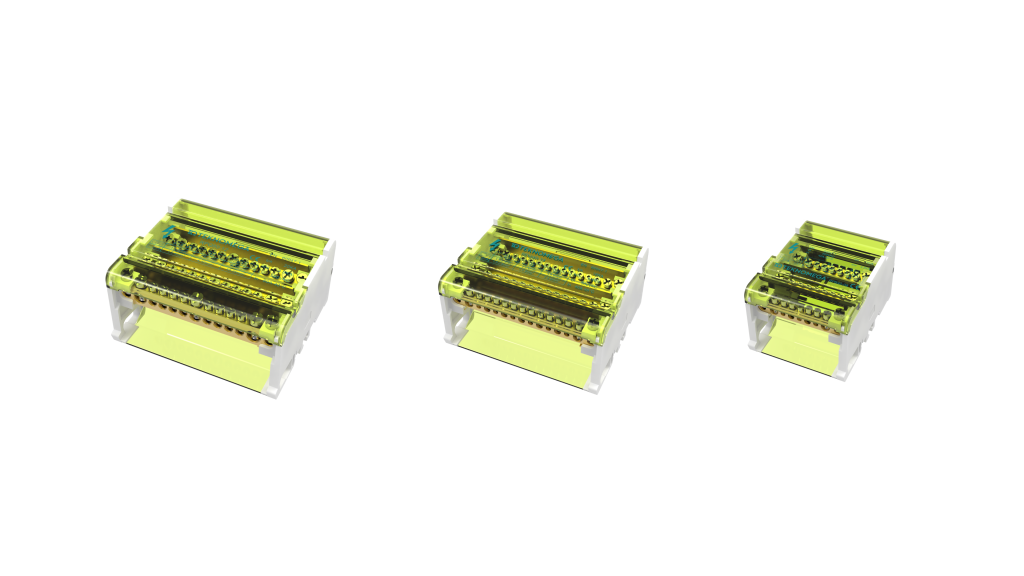

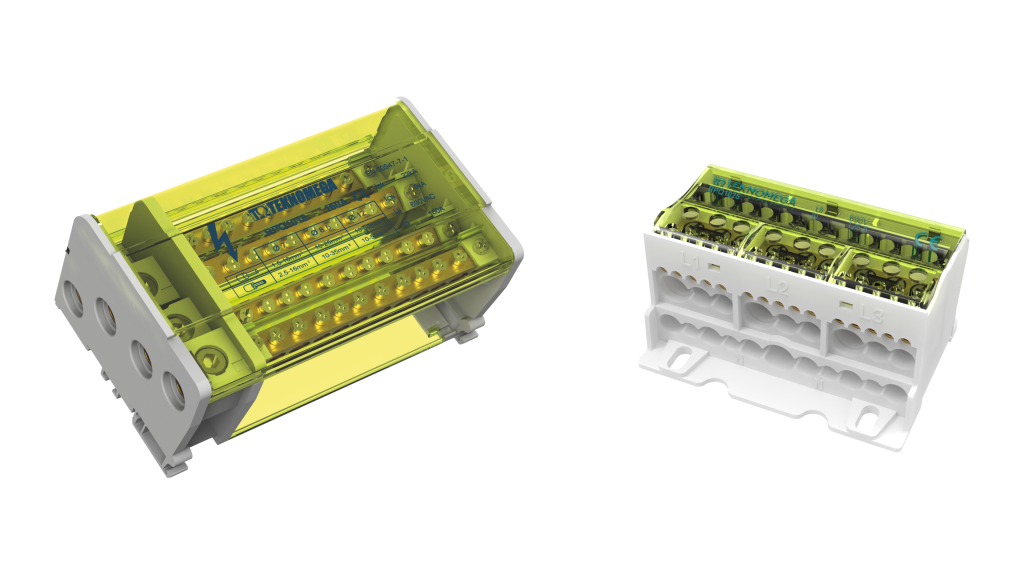

• Two and Four-Pole Distribution Blocks (40 A to 400 A): These blocks come with a transparent protection screen between phases (front and bottom) that’s easy to remove. Teknomega also recently introduced the 4-pole Modular Up & Down Distribution Block (from 160 A) - a smart solution for installations with limited space or where you need multiple wiring inputs and outputs. Plus, the new 4-pole Side Input Distribution Block (from 160 A) lets you connect directly to the switch for even more flexibility.

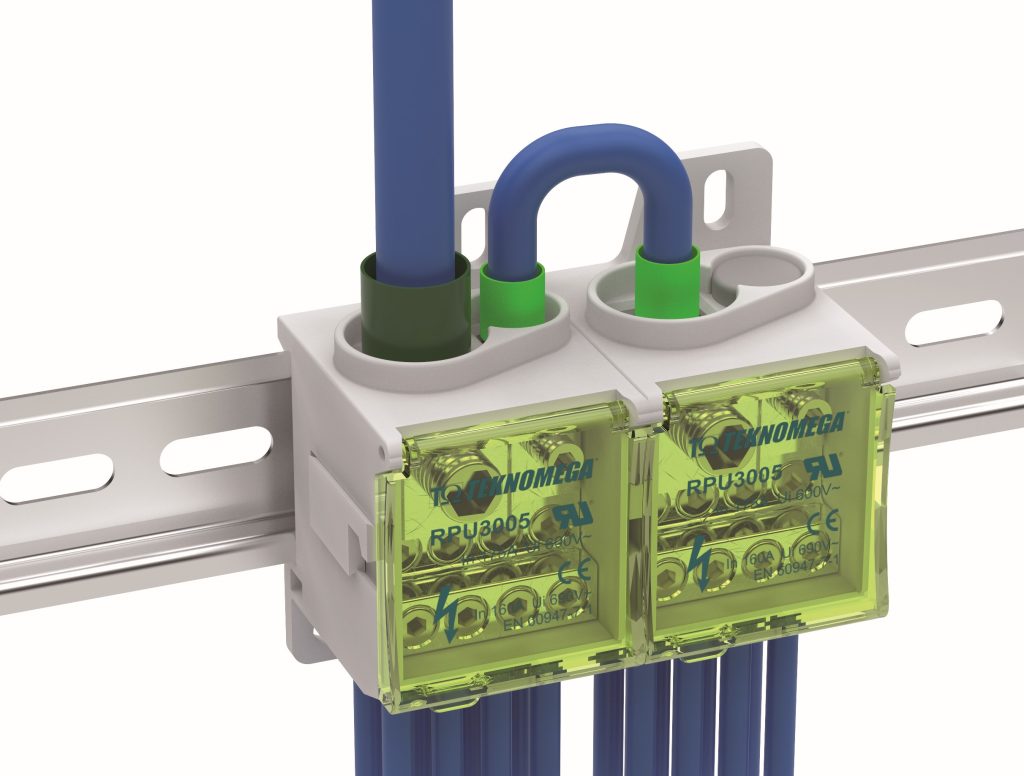

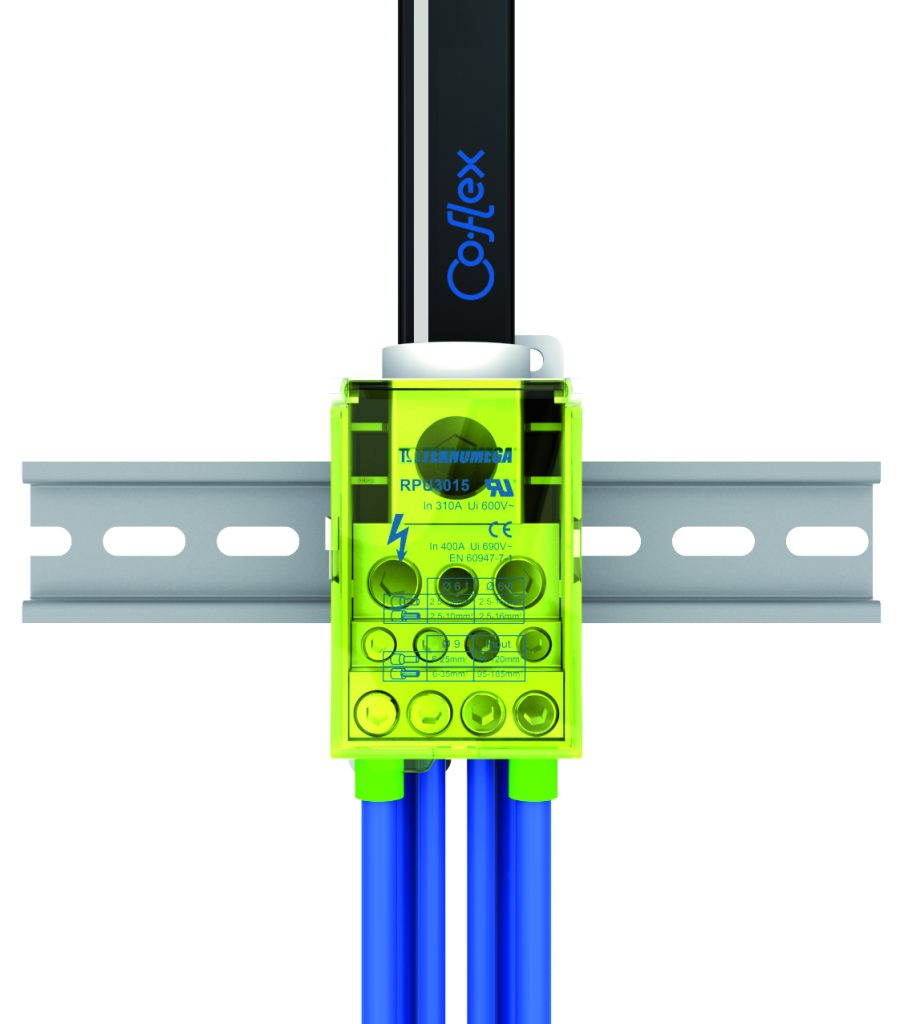

• Single and Three-Pole Distribution Blocks (80 A to 500 A): UL-registered, with guided wiring accesses for easier connections and excellent electrical insulation. So no cover removal needed - just connect and go.
• Quick Distribution Blocks (63 A, 1 and 2 pole): Featuring quick, indirect spring hook-up outputs for fast, efficient, and secure wiring.
• Flexible Mounting Options: Every block can be mounted on a DIN rail or on a bottom plate, so you decide how you install them!

Which makes them a smart, practical solution for smooth installation and rock-solid performance.

Why Teknomega Blocks Are Bestsellers at LED Controls

At LED Controls, we stock a full range of Teknomega distribution blocks, which our customers - from panel builders to contractors and Original Equipment Manufacturers - can count on to build smarter, safer systems. So get in touch and see how we can help make your TEKNOMEGA connection today:
