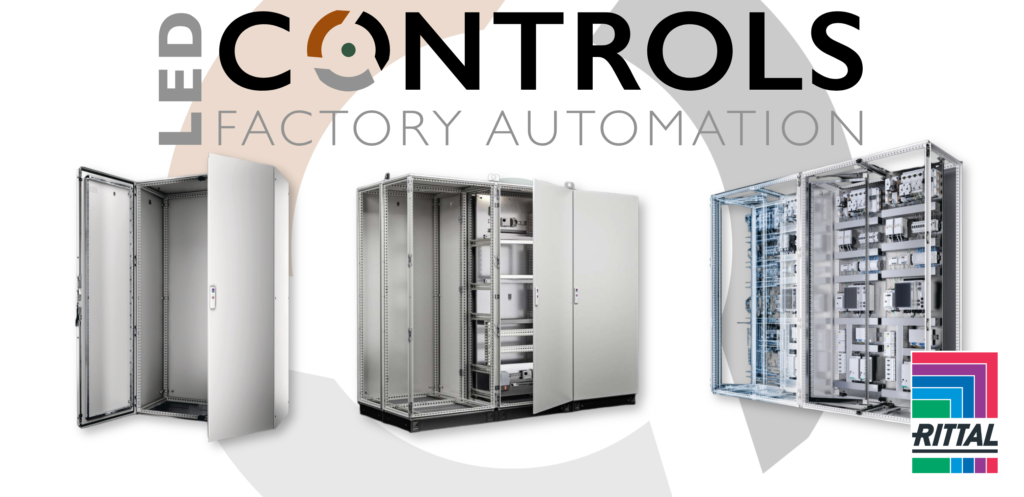

Rittal VX25 Enclosure System available from LED Controls
The Rittal VX25 enclosure system, available now from LED Controls, represents a major step forward in simplicity, durability and flexibility in electrical enclosure design. As a Rittal Alliance Partner, LED Controls supplies a wide range of Rittal VX enclosures, giving customers fast access to industry-leading solutions backed by expert support.
What is the Rittal VX25?

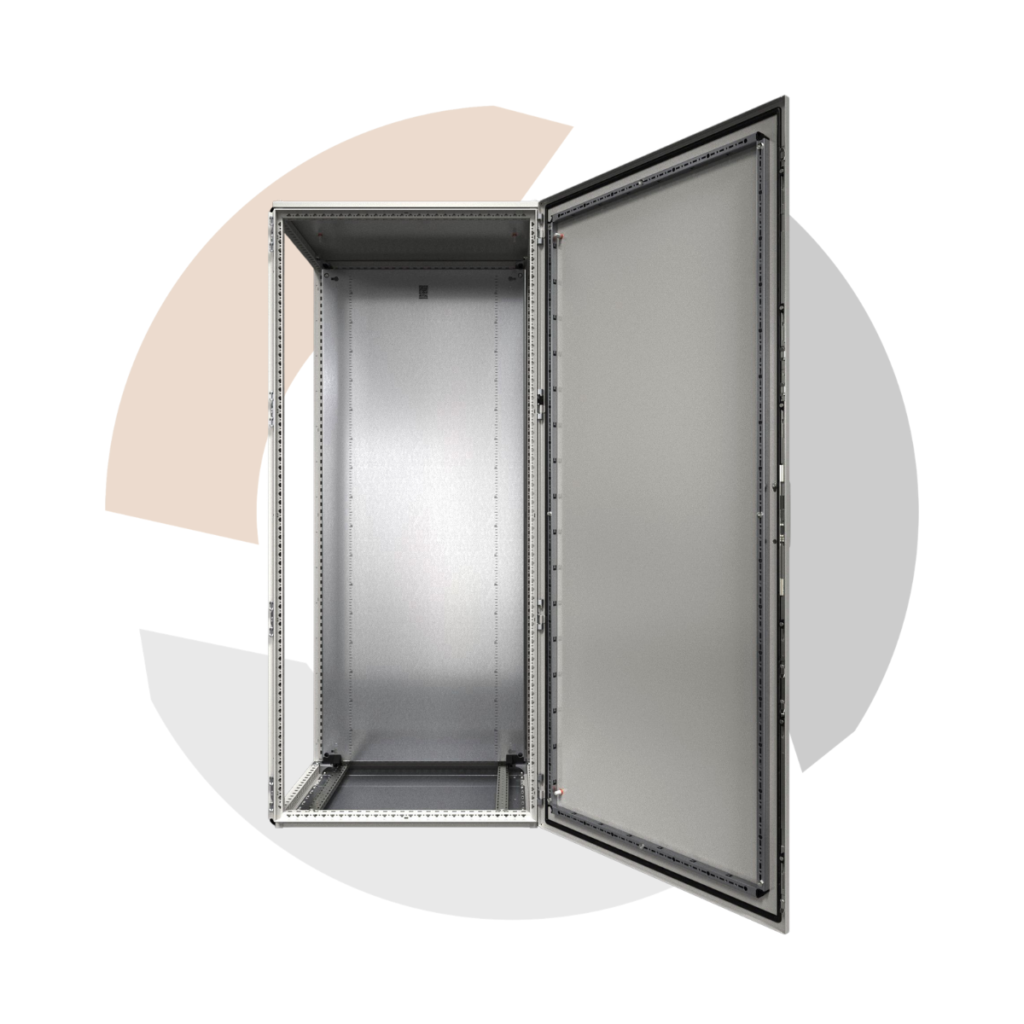

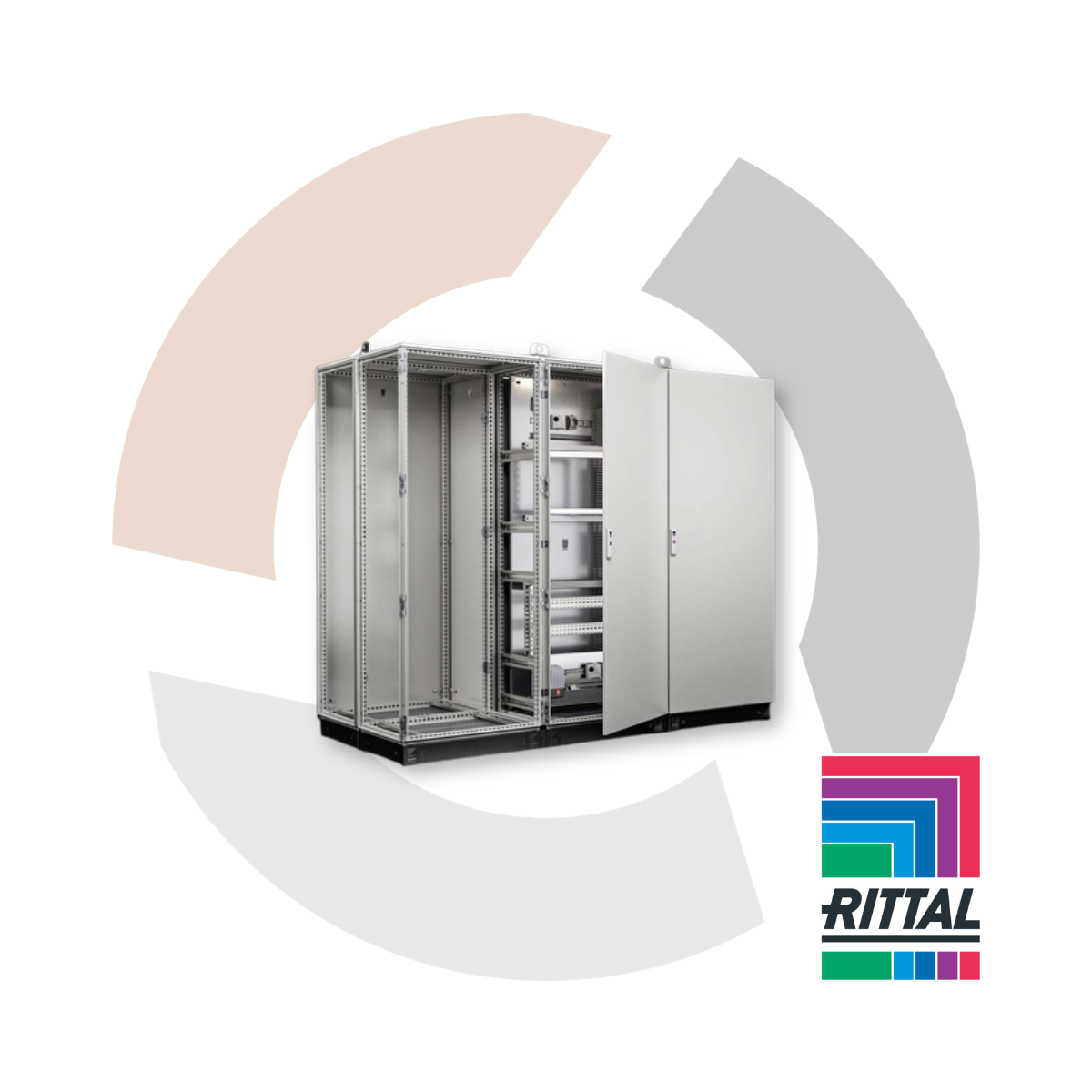

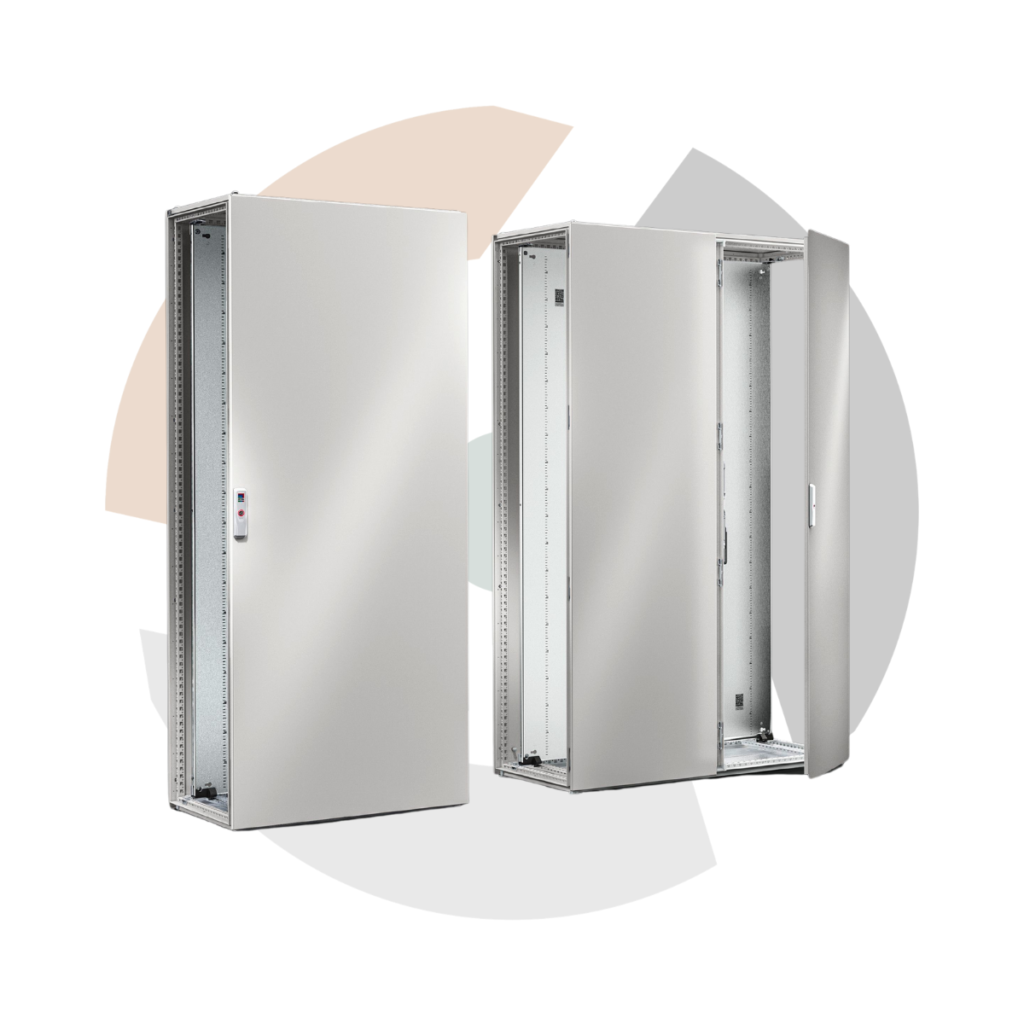

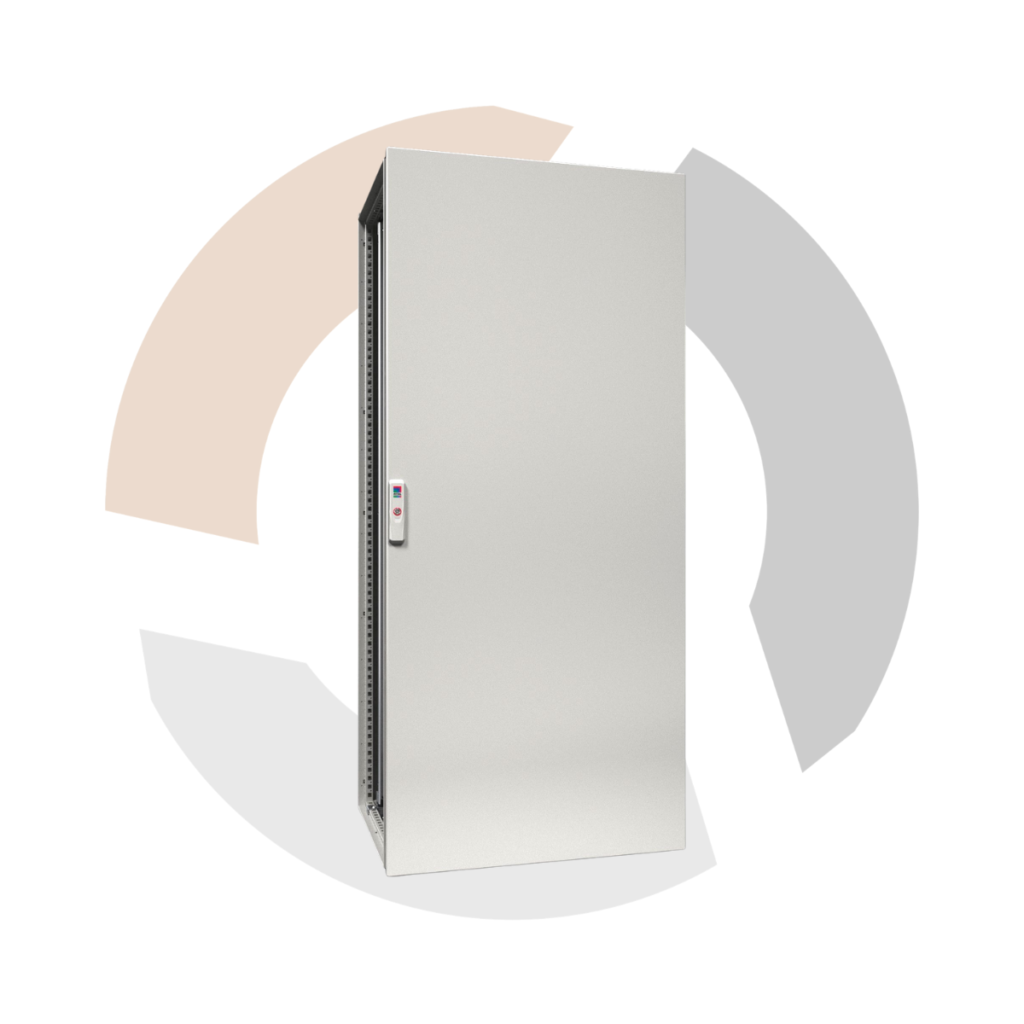

Rittal VX25 is a range of electrical enclosures. The basic VX25 range is a series of sheet steel baying enclosures, which means individual cabinets can be joined together to create a larger enclosure. So, whatever your electrical application requires, Rittal VX25 enclosures can be scaled to fit your specific needs. They are designed to:
- Hold electrical equipment safely
- Protect components from dust, water and damage
- Allow easy installation and maintenance
- Scale up as systems grow
Faster Installation and Less Machining
Traditional enclosures often require drilling, cutting and modification during installation. The VX25 uses a standardised hole pattern and mounting system, allowing components to be installed quickly using pre-defined fixing points, saving you time and reducing chance of errors during panel building.
Power distribution systems such as busbars can be installed without drilling into the enclosure. Instead, they use pre-designed mounting points. Combine the VX25 with Rittal's RiLineX busbar system for best results.
Strong, Simple Construction

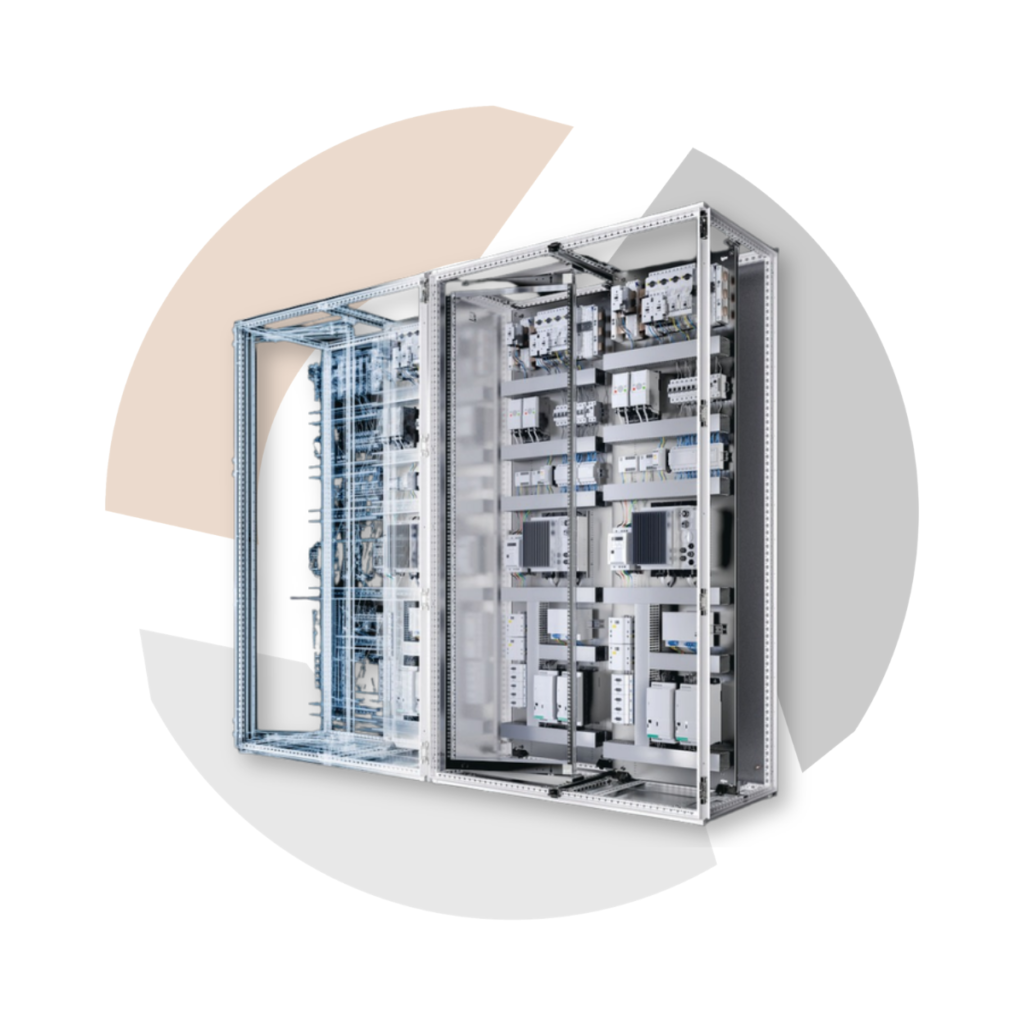

The Rittal VX range uses a self-supporting frame design with a single-piece construction method, meaning the roof and sides form a rigid structure. This improves strength and stability while reducing the number of separate parts. For you, this means:
- Higher load capacity
- Less assembly work
- Better long-term durability
High Protection Ratings Explained
The VX25 delivers high levels of protection for your components, including IP66 and NEMA 4 ratings. This means the enclosure keeps internal components safe from dust, water and harsh conditions. This is especially important for:
- Food production
- Energy systems
- Outdoor installations
- Heavy industry
Easy Cable Management
Routing cables safely is a key part of enclosure design. Features such as smooth internal edges to prevent cable damage, strong gland plates for secure cable entry, and clearly marked earthing points keep your cabling process as safe and simple as the rest of the installation.
Flexible Sizes and Configurations
The VX25 system is available in a wide range of sizes suitable for anything from small control systems all the way up to larger industrial installations such as factories and data centres. This flexibility allows engineers to select the exact enclosure size needed, rather than adapting equipment to fit a fixed cabinet.
Built for Industry 4.0
The VX25 system is designed for modern industrial requirements. It supports high load capacities, such as power distribution systems and battery installations. It also works seamlessly with a wide range of accessories, including cooling units, mounting rails and cable management systems. For temperature control, VX25 enclosures can be combined with advanced cooling solutions, helping to maintain safe operating conditions inside the enclosure and priming VX25 for Industry 4.0.
Why Buy Rittal VX from LED Controls?
As a Rittal Alliance Partner, LED Controls is more than a Rittal Distributor. Our customers benefit from:
- Direct access to genuine Rittal VX products
- Guidance on selecting the right enclosure
- Direct sourcing and rapid supply with same day delivery available on selected UK orders
- Expert technical support
Working with an authorised partner ensures you get the right product, with the right support, first time.
Rittal VX Range Available from LED Controls
| Width (mm) | Height (mm) | Depth (mm) | Part Number |
|---|---|---|---|
| 800 | 1400 | 500 | VX8845.000 |
| 800 | 1600 | 500 | VX8865.000 |
| 800 | 1800 | 500 | VX8880.000 |
| 800 | 1800 | 400 | VX8884.000 |
| 800 | 1800 | 500 | VX8885.000 |
| 800 | 1800 | 600 | VX8886.000 |
| 400 | 2000 | 600 | VX9680.406 |
| 400 | 2000 | 800 | VX9680.408 |
| 400 | 2200 | 600 | VX9680.426 |
| 400 | 2200 | 800 | VX9680.428 |
| 600 | 2000 | 600 | VX9680.606 |
| 600 | 2000 | 800 | VX9680.608 |
| 600 | 2200 | 600 | VX9680.626 |
| 600 | 2200 | 800 | VX9680.628 |
| 800 | 2000 | 600 | VX9680.806 |
| 800 | 2000 | 800 | VX9680.808 |
| 800 | 2200 | 600 | VX9680.826 |
| 800 | 2200 | 800 | VX9680.828 |
| 1200 | 1800 | 500 | VX8453.000 |
| 800 | 1800 | 400 | VX8454.000 |
| 800 | 1800 | 500 | VX8455.000 |
| 600 | 2200 | 600 | VX8626.000 |
| 1000 | 1800 | 400 | VX8084.000 |
The Rittal VX25 system is built to make industrial enclosure design easier, faster and more reliable. With strong construction, flexible sizing, high protection ratings and simple installation, it is a trusted choice across a wide range of industries. By ordering your Rittal VX enclosures from LED Controls, you gain access to authentic, expertly selected products, sound advice and dependable supply, which means you can complete your electrical enclosure projects with confidence.
Either peruse our VX25 range online, or get in touch with LED Controls to discuss all things Rittal!
