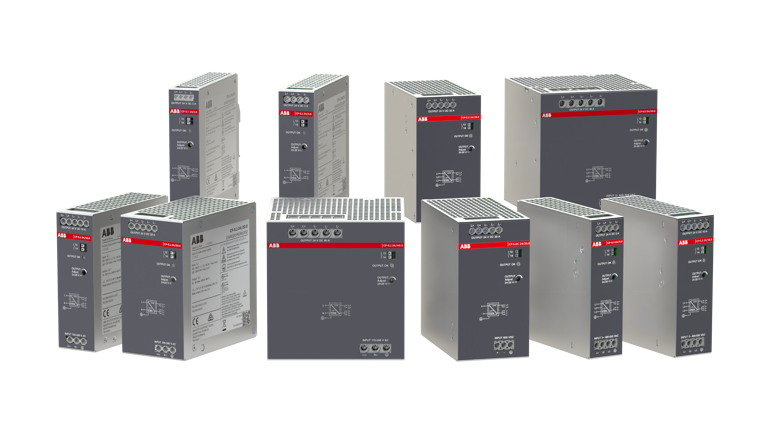

ABB CP-S range available from LED Controls

In the world of automation and control, reliable power is everything. The ABB CP-S range of primary switch-mode power supplies delivers the efficiency, flexibility and compact design that modern industrial applications demand. Whether you’re working on a single-phase, three-phase or DC-powered system, the CP-S family offers dependable 24 V DC power for smooth, uninterrupted performance.

Compact, efficient, and built to last

The ABB CP-S.1, CP-S.3 and CP-S.DC models have been engineered with both performance and practicality in mind. These power supplies achieve efficiency levels of up to 94%, reducing heat and energy losses. In fact, a modest 2% gain in efficiency over typical devices can cut CO₂ emissions by 1.4 tonnes over ten years, equivalent to the carbon offset of around sixty trees.

Thanks to their compact metal housings, the CP-S range also helps save valuable space inside control cabinets - up to 50% smaller than comparable units. So we're talking smaller, cheaper and more efficient than the competition, without losing power, versatility or reliability

Power tailored to your needs

From machine building and factory automation to renewable energy, marine, and transport applications, there’s a CP-S unit designed for every setup.

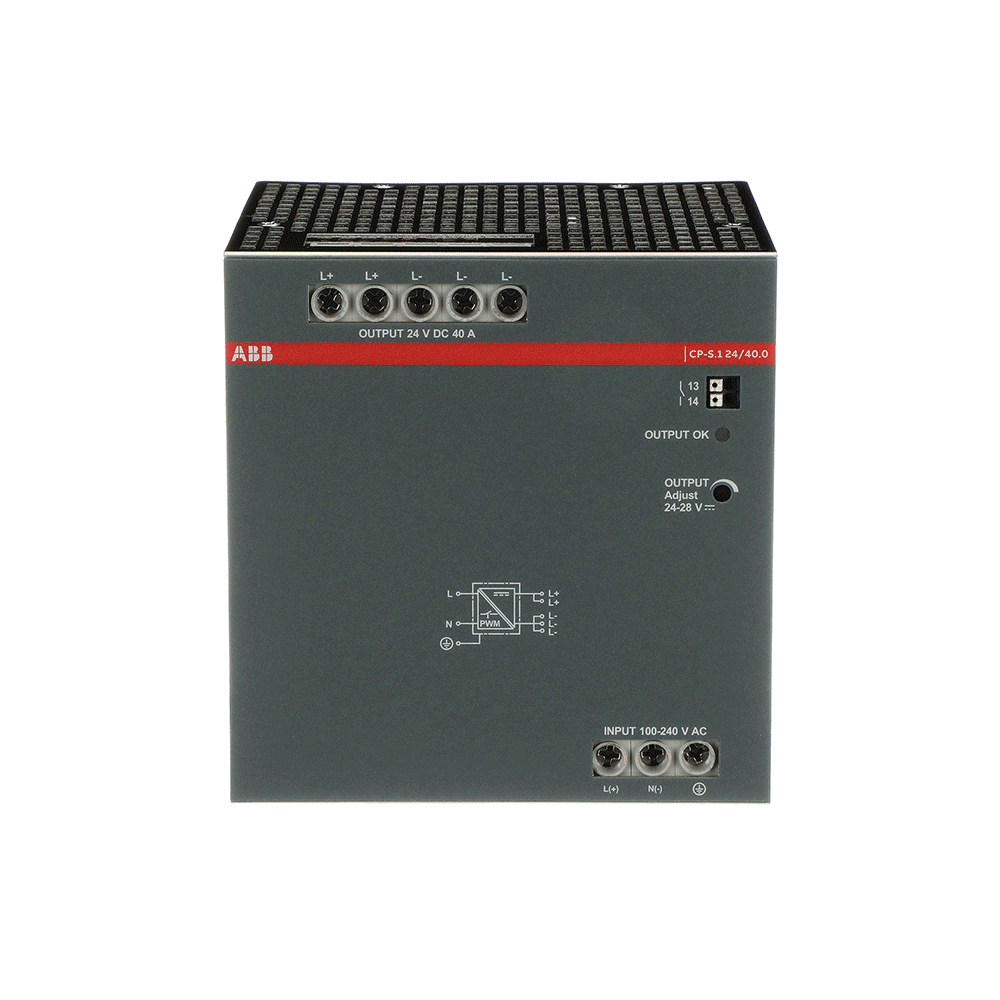

CP-S.1 units are ideal for single-phase applications (85–264 V AC / 90–277 V DC input) with output currents from 3 A to 40 A.

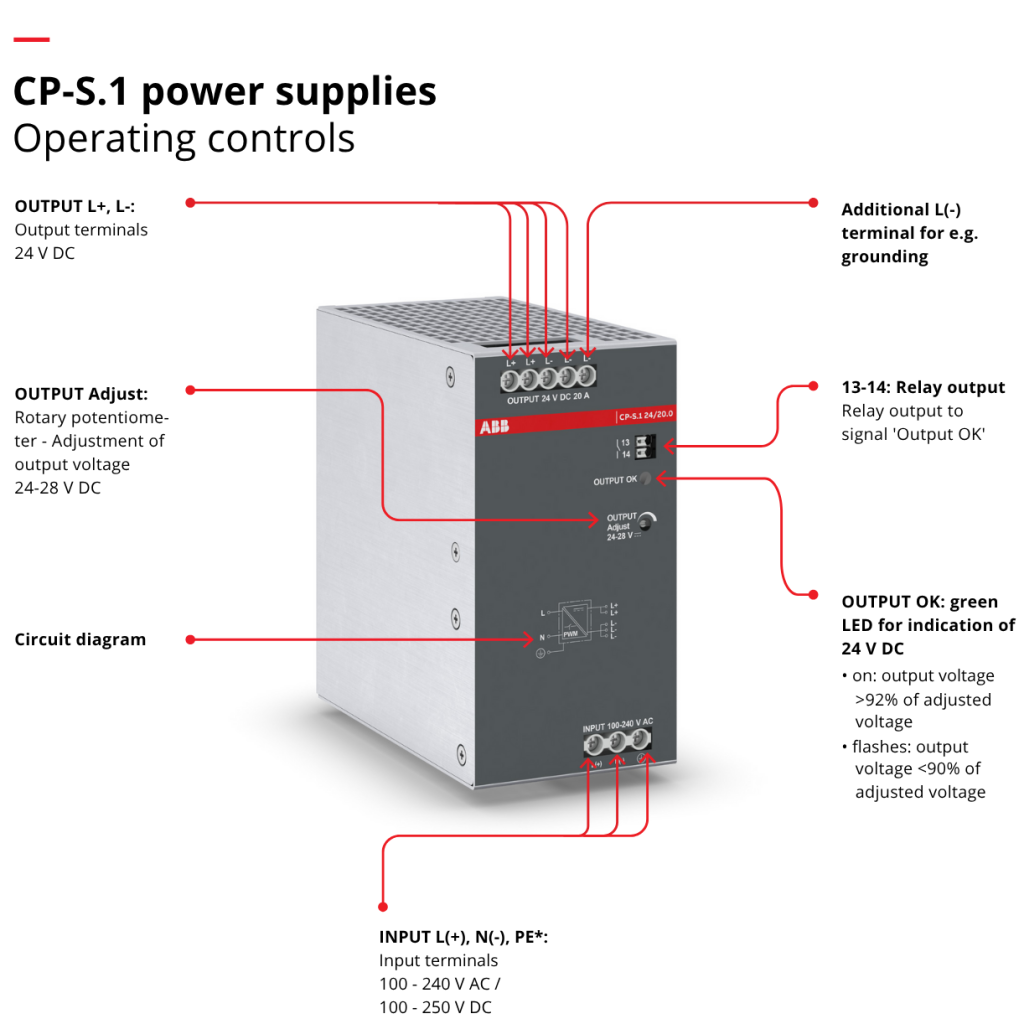

ABB CP-S.1 power supply operating controls. Available from LED Controls

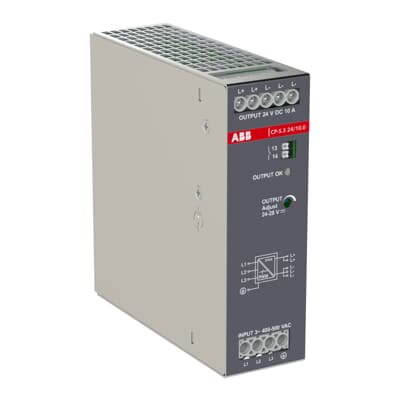

CP-S.3 power supplies handle demanding three-phase environments (320–575 V AC input) with up to 960 W of output power.

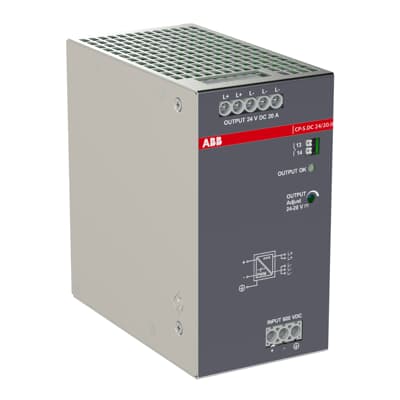

CP-S.DC models provide high-voltage DC-to-DC conversion (420–870 V DC input), perfect for systems using intermediate DC buses or energy storage solutions.

All models share ABB’s commitment to reliability, featuring an integrated 150% power reserve for up to five seconds, overheat protection, and active power factor correction for stable, clean power.

Designed for global use

With a wide certified input range and global approvals, including CE, UKCA, UL, DNV and marine certifications. The CP-S range is ready for installations anywhere in the world. Their coated circuit boards and rugged housings make them ideal for harsh industrial and offshore environments.

A sustainable investment

ABB’s CP-S power supplies aren’t just reliable, they’re a smart investment in long-term efficiency. With lower energy consumption, minimal heat generation and fewer maintenance demands, they help reduce both operating costs and environmental impact across their service life.

Discover more

If you’re looking for high-performance power supplies that deliver on reliability, efficiency, and global versatility, the ABB CP-S range is a clear choice. Explore the full range today at LED Controls, or get in touch for more information:
