Pizzato NX at LED Controls

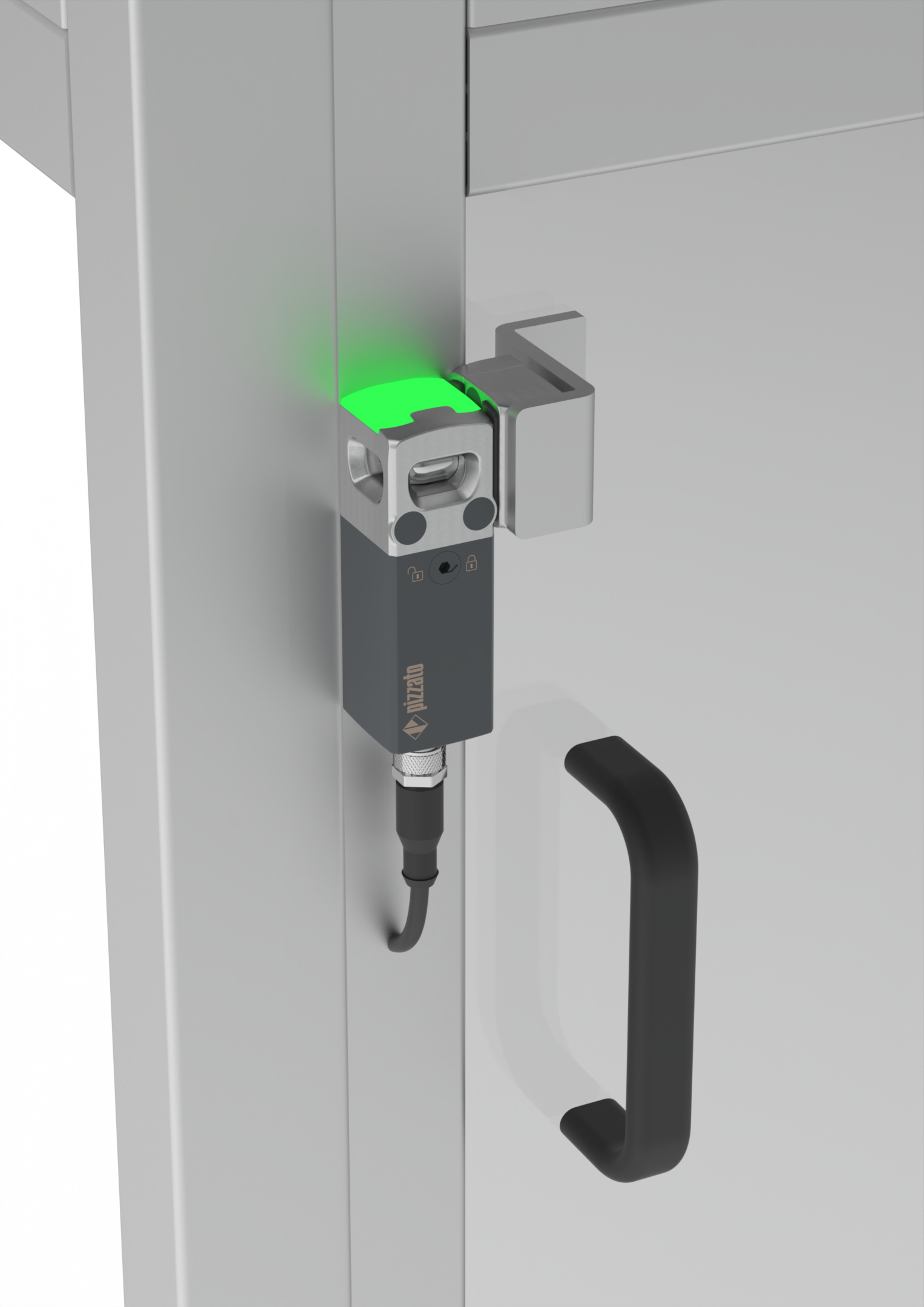

LED Controls are proud to supply the Pizzato NX Series RFID safety switch with lock - a cutting-edge locking device for doors and enclosures in industrial environments.

The Pizzato NX Series is specifically designed to monitor and lock your safety gates and doors, ensuring they remain securely closed during hazardous conditions and only allowing access when it is safe to do so.

Big Performance, Small Footprint

Measuring just 30 x 30 x 94.5 mm, the Pizzato NX Series is officially the smallest RFID safety switch with lock on the market. Designed to deliver Performance Level e (PL e) and SIL 3 safety ratings, it packs exceptional protection into a device that fits neatly into even the tightest industrial installations. Its metal head guarantees maximum resistance to impact and tensile forces, while the technopolymer housing keeps it lightweight and versatile.

Advanced RFID Security

The NX Series uses high-level coded RFID technology to ensure each actuator is uniquely matched to its switch. This means tampering or bypassing the device with a spare actuator is virtually impossible, providing the peace of mind that modern safety systems demand.

The articulated metal actuator is rotatable and self-centring, allowing for easy installation even on misaligned or inaccurately closing guards, meaning it's perfect for both sliding and hinged doors.

Smart, Visible, and Energy-Efficient

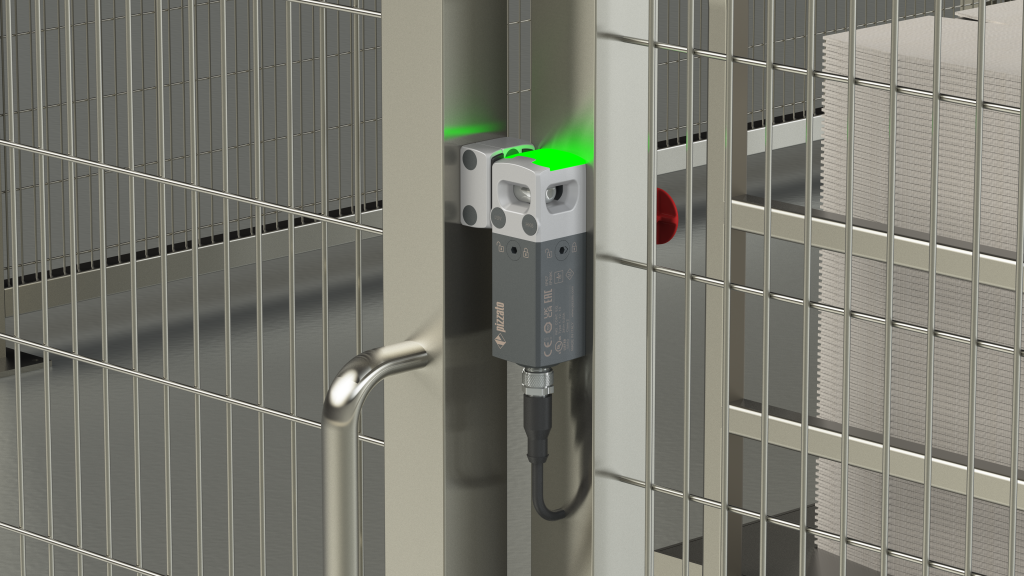

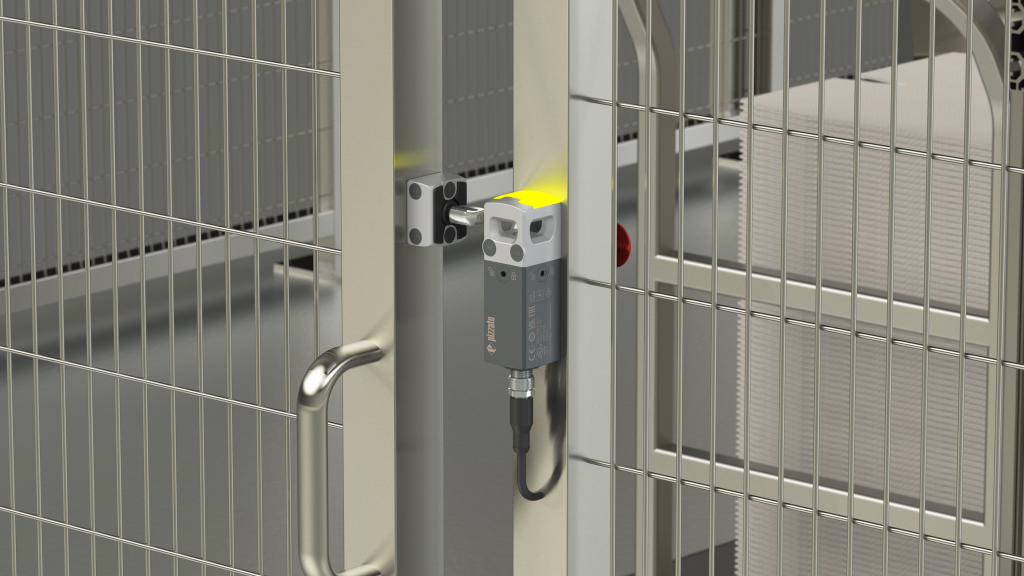

Each unit includes a multicolour RGB LED cover, which lights up to indicate the switch’s operational state. The bright, uniform illumination is visible from all angles, making machine status checks quick and intuitive. Internally, the bistable solenoid design reduces energy use by only requiring a short electrical pulse to lock or unlock, helping keep both running costs and internal heat down.

Safety and Simplicity Combined

Built with redundant electronics, the Pizzato NX Series maintains maximum safety with just a single device. Add in easy mounting, an auxiliary release that can be operated with an Allen key, and it’s clear this range has been engineered for simplicity as well as reliability.

As the newest Pizzato technology now available from LED Controls, the NX Series offers a modern, compact, and secure way to enhance your machine safety systems. Check out the range here, or just get in touch!
